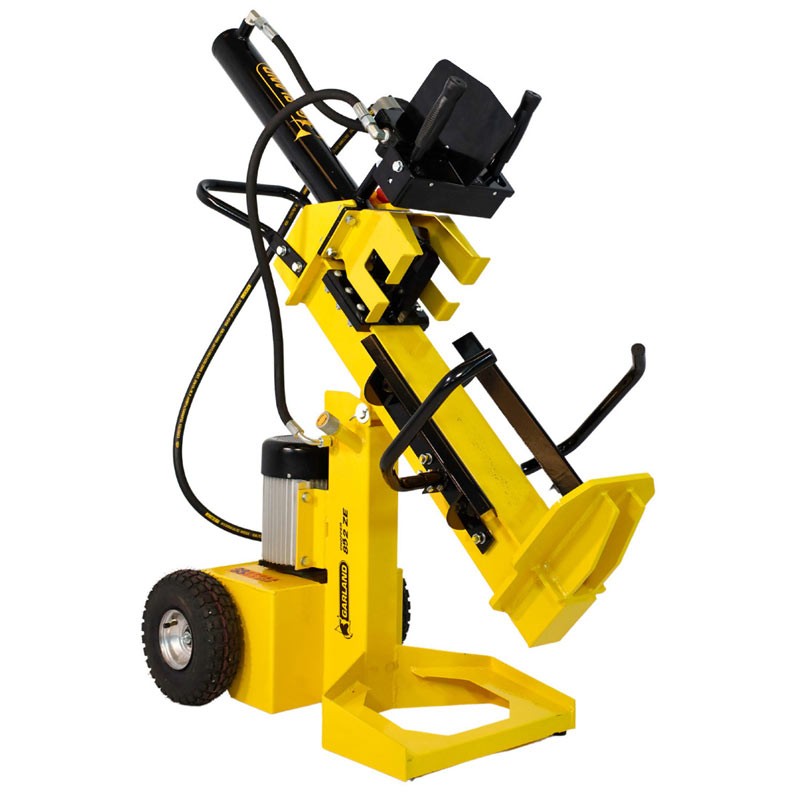

Garland Chopper 852 ZE-V23
12 Ton Electric Log Splitter with Tilting Table

Garland Chopper 852 ZE-V23 - 12 Ton Electric Log Splitter with Tilting Table

The Garland Chopper 852 ZE-V23 log splitter is a professional tool designed to meet the needs of forestry , advanced gardening , and greenery maintenance operators. This model with a tilting table allows you to cut in any position, operating horizontally , vertically , and at intermediate angles , ensuring maximum flexibility in managing logs of various sizes. The 2.3 kW single-phase 230V electric motor provides constant power and reliability, making work quick and efficient. The 12-ton cutting force allows you to split large logs with minimal effort, while the pneumatic wheels and carrying handle make it easy to move on the ground.

The Chopper 852 ZE-V23 stands out for its ZHB safety system , which requires the simultaneous use of both hands , preventing accidental starts and ensuring maximum operator protection. Electrically powered, this professional log splitter is ideal for equipped construction sites and urban environments, with no emissions and no fuel required.

Technical Specifications

The Garland Chopper 852 ZE-V23 is equipped with a 2.3 kW single-phase 230V electric motor, ensuring consistent performance and reduced maintenance. The hydraulic system uses ISO HM22 viscosity oil, contained in a 5 L tank, ensuring optimal lubrication and a long machine life.

In terms of performance, this professional log splitter reaches a maximum cutting force of 12 tons , allowing it to process logs with a diameter of up to 30 cm and a length of up to 52 cm . The compact 115 kg structure, combined with pneumatic wheels and an ergonomic handle , ensures ease of transport and stability during use. The guaranteed sound power level LwA 113 highlights the importance of using hearing protection during operation.

Functional Specifications

Horizontal and Vertical Cutting

The Garland Chopper 852 ZE-V23 's tilting table allows you to work horizontally , vertically , or at intermediate angles , adapting to the type of log and the required working position. This ensures precise and safe cuts even on large logs.

Dual Speed System

The machine features a two-speed push system , optimized for faster and more uniform cutting. This function allows you to adjust the force applied based on the hardness of the wood, increasing efficiency and reducing operator fatigue.

ZHB Operational Safety

The ZHB system requires the simultaneous use of both hands to start the log splitter, preventing accidental starts and ensuring maximum protection during use, even in complex environments.

Transport and Mobility

Thanks to its pneumatic wheels and ergonomic handle , the device is easily moved over uneven terrain. Despite its weight of 115 kg , transport is simple and allows the log splitter to be quickly positioned where needed.

Power Supply

The 2.3 kW single-phase 230V electric power supply offers consistent, sustainable performance, with no emissions or fuel. This makes the Chopper 852 ZE-V23 ideal for construction sites, urban areas, or indoor environments, with minimal maintenance and low operating costs.

Watch the videos

Characteristics

• Professional multi-directional log splitter
• Single-phase 230V power supply
• Power 2.3 kW
• Cutting power 12 Ton
• Maximum trunk length 520 mm
• Maximum trunk width 300 mm
• Dual speed thrust system
• 5 L hydraulic oil tank
• Pneumatic wheels
• Carrying handle
• Sound level 113 LwA
• ZHB dual control safety system
• Tilting plane
• Horizontal/vertical/intermediate angle cutting
• Weight 115 kg

1. Control lever
2. Hydraulic cylinder
3. Carrying handle
4. Motor
5. Wheels
6. Lama
7. Work plan
8. Rotating locking system
9. Vent screw
10. Base
11. Electrical Plug/Connector
12. Trunk protection
