Garland Chopper 852 ZG-V23
12 Ton Tilting Plane Log Splitter

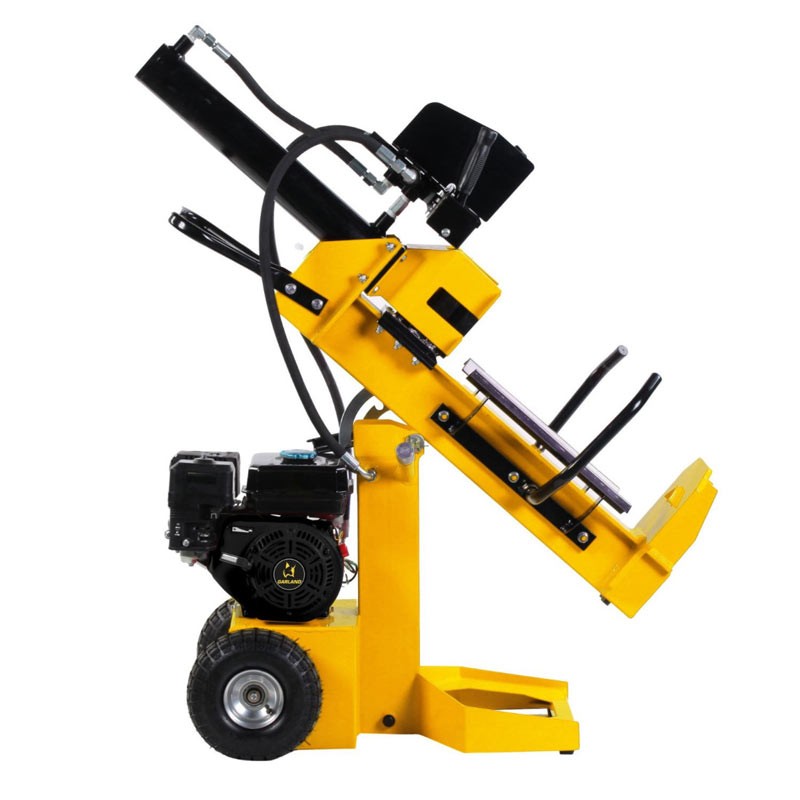

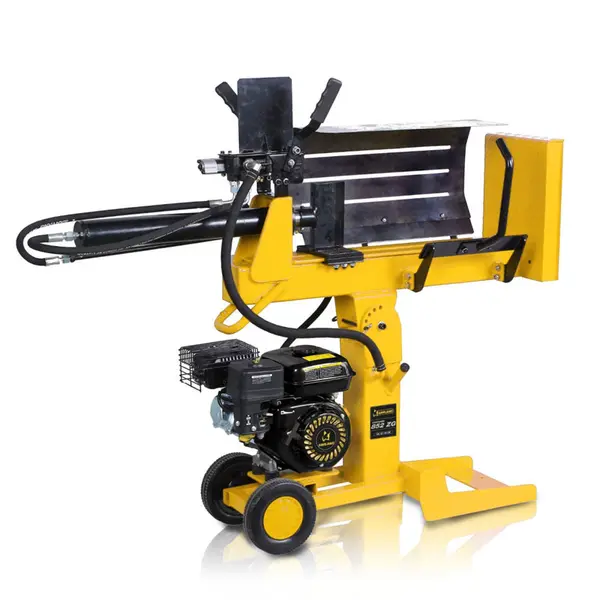

Garland Chopper 852 ZG-V23 - 12 Ton Log Splitter with Tilting Table

The Garland Chopper 852 ZG-V23 log splitter is a professional tool designed to meet the needs of professionals in the forestry , advanced gardening and greenery maintenance sectors. This model with a tilting table offers the possibility of cutting in any position, operating horizontally , vertically and at intermediate angles , thus ensuring unparalleled flexibility in managing logs of various sizes. The 208 cc Garland 4T engine provides power and reliability, making work faster and more efficient. The 12 tonne cutting force allows you to split large logs with minimal effort, while the pneumatic wheels and transport handle make it easy to move the device on the ground.

The Chopper 852 ZG-V23 stands out for its advanced ZHB safety system, which requires the simultaneous use of both hands, preventing accidental starts and ensuring maximum operator protection. This professional , petrol- powered log splitter requires no electrical connections and offers high performance in any work environment, even far from power sources.

Technical Specifications

This Garland log splitter is equipped with a 208 cc 4-stroke petrol engine , capable of delivering 3.9 kW at 3600 RPM with a maximum torque of 10 Nm . Maximum fuel consumption is 1540 g/h , making it efficient to use even during prolonged operations. The hydraulic oil tank has a capacity of 5 L , with recommended viscosity ISO HM22 , ensuring optimal lubrication and durability of the machine over time.

In terms of performance, this professional log splitter reaches a maximum cutting force of 12 tons , allowing it to process logs up to 300 mm wide and 520 mm long. The compact 105 kg structure, combined with the pneumatic wheels and ergonomic handle, ensures mobility and stability during transport. The guaranteed sound power level is LwA 97 , compliant with noise safety regulations for professional use.

Functional Specifications

Horizontal and Vertical Cutting

The Garland Chopper 852 ZG-V23 's tilting table allows for both horizontal and vertical operation, adapting to the type of log and the required working position. The ability to select intermediate angles allows for precise and safe cutting, optimizing every operation on large logs.

Dual Speed System

The machine is equipped with a two-speed push system , designed to ensure a faster and more uniform cut. This feature allows you to adjust the force applied based on the hardness of the wood, increasing efficiency and reducing operator effort.

ZHB Operational Safety

The ZHB safety system requires the simultaneous use of both hands to start the Garland Chopper 852 ZG-V23, preventing any risk of accidental starting . This solution ensures maximum protection during use, making the task safer even in complex work environments.

Transport and Mobility

Thanks to the pneumatic wheels and ergonomic handle , the device is easily moved on uneven terrain . Despite its compact size and 105 kg weight, transport is easy, allowing the operator to quickly position the log splitter where needed.

Petrol Powered

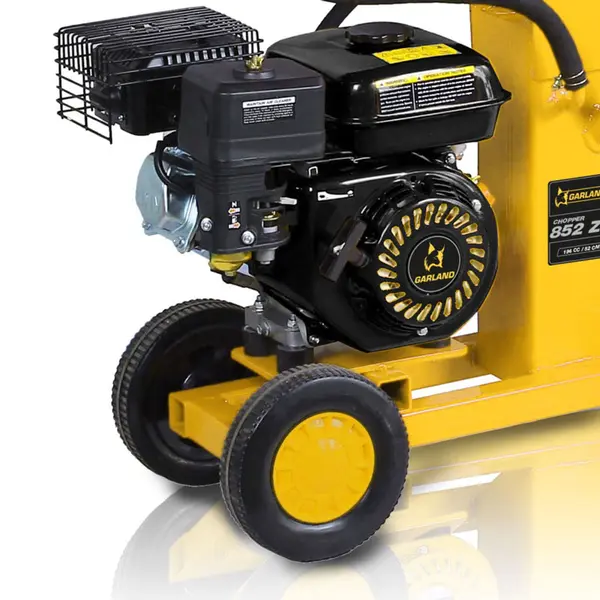

The 208cc 4-stroke petrol engine gives the Garland Chopper 852 ZG-V23 complete autonomy, without the need for an electrical connection. This makes it ideal for use in remote areas or on outdoor construction sites where electricity is unavailable.

Watch the videos

Characteristics

• Professional multi-directional log splitter
• Garland 208cc 3-stroke engine
• Power 3.9 kW
• Engine speed 3600 RPM
• Cutting power 12 Ton
• Maximum trunk length 520 mm
• Maximum trunk width 300 mm
• Dual speed thrust system
• 5 L hydraulic oil tank
• Pneumatic wheels
• Carrying handle
• Sound level 97 LwA
• ZHB dual control safety system
• Maximum consumption 1540 g/h
• Tilting plane
• Horizontal/vertical/intermediate angle cutting
• Weight 105 kg

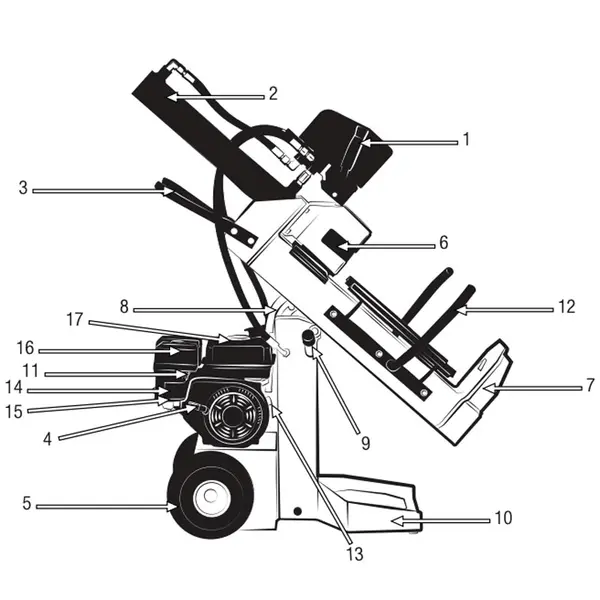

1. Control lever
2. Hydraulic cylinder
3. Carrying handle
4. Recoil starter
5. Wheel
6. Lama
7. Work plan
8. Rotating locking system
9. Vent screw
10. Base
11. Accelerator lever
12. Trunk protection
13. ON/OFF switch
14. Air lever
15. Opening lever
16. Fuel tank opening lever
17. Air filter
18. Fuel tank
