Italy Bitree Senior SV 90
9T Electric Single Pump Vertical Log Splitter
230V - 2.2 kW
9 Ton - Vertical
Single Pump
€1,820.00
€1,491.80 tax excl.
Warranty 2
years
Shipped on Pallet

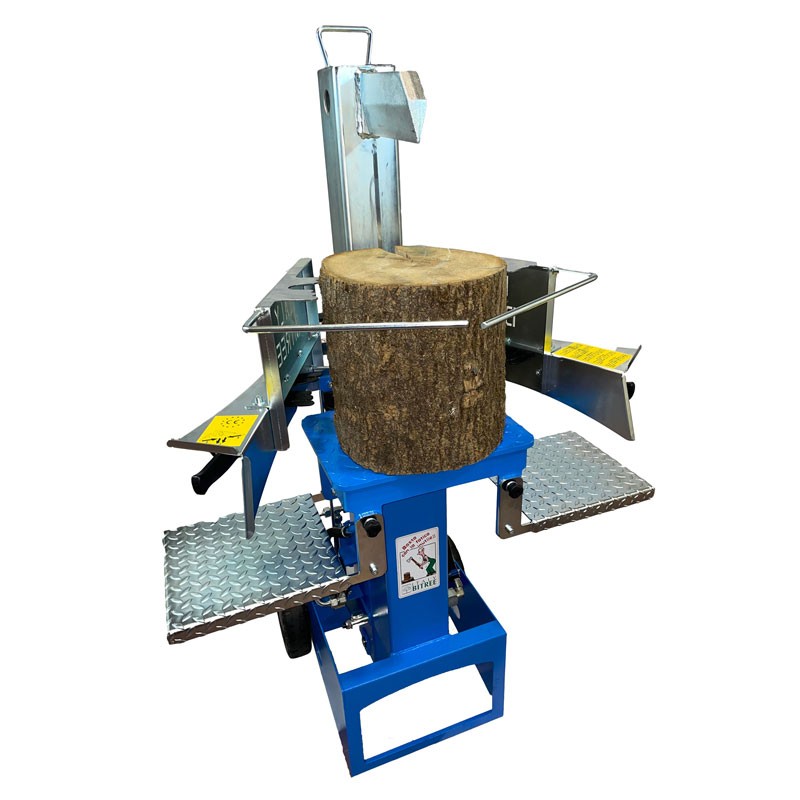

Italy Bitree Senior SV 90 CE M3 - 9 Ton Vertical Log Splitter - Electric 2.2 kW
Italy Bitree Senior SV 90 CE M3 vertical log splitter for experienced operators who require reliability and precision when cutting wood. With a thrust force of 9 tons and 2.2 kW (3 HP) power, this log splitter guarantees high performance and operational safety, offering splitting efficiency even in intensive professional use .
This Bitree log splitter is powered by a single-phase 230V electric motor with an integrated hydraulic system and does not require a tractor or PTO connection . Its autonomous configuration allows for use in situations where agricultural machinery is unavailable, ensuring maximum operational versatility.
Bitree log splitters represent the excellence of Made in Italy , designed and built entirely in Italy with attention to detail, reliability and Italian quality .
Functional specifications
Reliable and robust Made in Italy log splitter
The integrated hydraulic system , with a 12-liter tank and single G1 pump , ensures continuous cooling of the hydraulic fluid , maintaining constant performance even during prolonged work cycles. The regenerative distributor optimizes the cutting phase: maximum power when lowering the wedge and rapid return during the idle stroke. The 54 cm cutting opening and the piston stroke adjustable up to 50 cm make this log splitter suitable for logs of various sizes. The oversized fixed workbench is optimized to ensure stability during operation.
Operational safety and mobility on any terrain
Safety is ensured by the two-handed control compliant with CE regulations . Mobility is facilitated by oversized rubberized plastic wheels , with a diameter of 23 cm , designed for use on uneven terrain . The removable side plates provide stable support for the log during the splitting process.
Intended for operators with technical knowledge, the Senior SV 90 CE M3 is ideal for treating seasoned wood of medium-high hardness, such as beech, chestnut and ash. The compact and robust structure , combined with an ergonomic and safe control system , allows for intensive use in professional contexts .
Watch the video
Characteristics
- Professional vertical log splitter
- 230V electric motor
- Cutting power 9 Ton
- Piston stroke 50 cm
- Cutting height 54 cm
- G1 Single Pump
- Hydraulic oil 12 L
- Wheel diameter Ø 230 mm
- 2-hand control
- Fixed oversized workbench
- Approximate weight 165 kg
- Made in Italy
Technical Data
| Model | SV 90 CE - M 3 - 230 V | SV 90 CE - M 3 - 400 V | SV 90 CE - M 4 - 400 V |
| Power Supply | 230V | 400V | 400V |
| Motor | Electric | Electric | Electric |
| Pump | G1 Single | G1 Single | G1 Single |
| Power | 2.2 kW - 3 HP | 2.2 kW - 3 HP | 4 kW - 3 HP |
| Working Position | Vertical | Vertical | Vertical |
| Push Force | 9 Ton | 9 Ton | 9 Ton |
| Working Length | 54 cm | 54 cm | 54 cm |
| Piston Stroke | 50 cm | 50 cm | 50 cm |
| Hydraulic Oil | 12 L | 12 L | 12 L |
| Wheels | Ø 230 mm | Ø 230 mm | Ø 230 mm |
| 2-hand control | YES | YES | YES |
| Transport Handle | YES | YES | YES |
| Dimensions | 65 x 80 x 110 cm | 65 x 80 x 110 cm | 65 x 80 x 110 cm |
| Weight | 165 kg | 165 kg | 165 kg |
