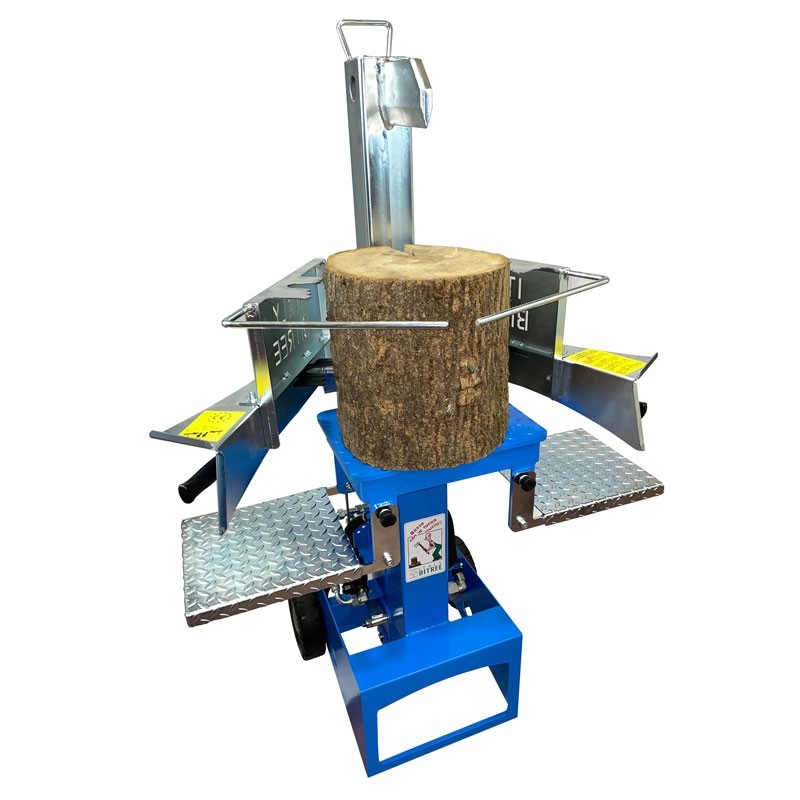

Italy Bitree Junior SV 80
Vertical Log Splitter 7T / 8T Single Pump

Italy Bitree Junior SV 80 CE M3 - Vertical Electric Log Splitter 7/8T Single Pump from 2.2 to 3 kW

Italy Bitree Junior SV 80 CE M3 vertical log splitter for experienced operators requiring reliability and precision in wood splitting. Available in models from 2.2 kW (3 HP) or 3 kW (4 HP), it has a pushing force of 7 tons or 8 tons depending on the selected model. This log splitter guarantees high performance and operational safety, offering splitting efficiency even for intensive semi-professional use.

Available Models

• SV 80 CE - M 3 - 230 V - Single-phase 3 HP (7T)
• SV 80 CE - M 3 - 400 V - Three-phase 3 HP (7T)
• SV 80 CE - M 4 - 400 V - Three-phase 4 HP (8T)

This Bitree log splitter is powered by a 230V single-phase or 400V three-phase electric motor, with an integrated hydraulic system, and does not require connection to a tractor or PTO. The autonomous configuration allows its use in contexts where agricultural machinery is not available, ensuring maximum operational versatility.

Bitree log splitters represent the excellence of Made in Italy, designed and built entirely in Italy with attention to detail, reliability, and Italian quality.

Functional Specifications

Single G1 Pump

The configuration with a single G1 hydraulic pump is the ideal solution for those seeking reliability and simplicity with an excellent quality-price ratio. Thanks to the regenerative valve, even with a single pump, the machine automatically optimizes the work cycle: maximum power during the splitting phase and faster wedge return during the idle stroke, without sacrificing operational fluidity.

Fewer hydraulic components also mean less maintenance complexity and greater long-term reliability, characteristics highly appreciated by those who use the log splitter continuously but without the productivity demands of a construction site or sawmill. It is the most suitable choice for intensive domestic or semi-professional use, where machine robustness is prioritized over maximum work cycle speed.

Reliable and Robust Made in Italy Log Splitter

The integrated hydraulic system, with a 7 L tank and single G1 pump, ensures continuous cooling of the hydraulic fluid, maintaining constant performance even during prolonged work cycles. The regenerative valve allows optimization of the cutting phase: maximum power during the wedge descent and fast return during the idle stroke. The cutting opening of 54 cm and the piston stroke adjustable up to 50 cm make this log splitter suitable for logs of various sizes. The enlarged fixed work table is optimized to ensure stability during operation.

Operational Safety and All-Terrain Mobility

Safety is guaranteed by the two-hand control compliant with CE regulations. Mobility is facilitated by oversized rubberized plastic wheels, with a diameter of 23 cm, designed for use on uneven terrain. The side plates provide stable support for the log during the splitting process.

Intended for operators with technical knowledge, the Junior SV 80 CE M3 is ideal for processing seasoned wood of medium-high hardness, such as beech, chestnut, and ash. The compact and robust structure, combined with an ergonomic and safe control system, allows for intensive use in semi-professional settings.

Watch the video

Features

• Professional vertical log splitter
• 230V electric motor
• 7 Ton / 8 Ton splitting force
• 50 cm piston stroke
• 54 cm cutting height
• G1 Single Pump
• 7 L hydraulic oil
• Wheel diameter Ø 230 mm
• 2-hand control
• Enlarged fixed work table
• Approximate weight 140 kg
• Made in Italy
