Italy Bitree SV 60
Vertical Log Splitter 7 Ton
Electric 2.2 kW

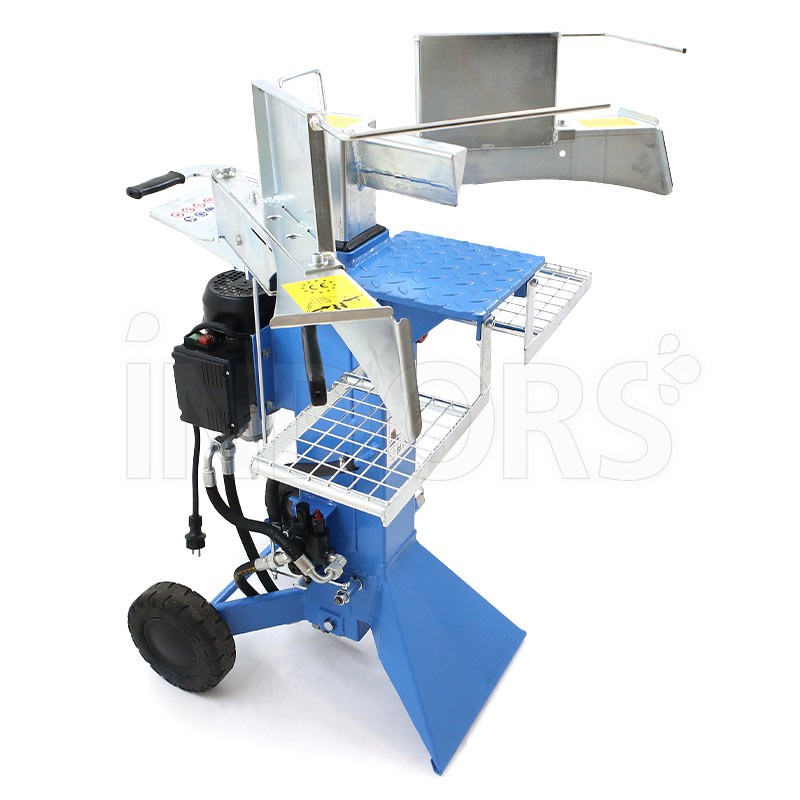

Italy Bitree SV 60 CE M3 - Vertical Log Splitter 7 Ton - Electric 2.2 kW

Vertical log splitter Italy Bitree SV 60 CE M3 for experienced operators requiring reliability and precision in wood cutting. With a 7-ton splitting force and single-phase 230V power supply, this model offers consistent performance and operational safety, ensuring high splitting efficiency in a semi-professional setting.

Bitree log splitters represent the excellence of Made in Italy, designed and built entirely in Italy with attention to detail, reliability, and Italian quality.

Functional Specifications

Reliable and Robust Log Splitter

The hydraulic system of the Junior SV 60 CE M3 features a 50 cm piston stroke, with a maximum cutting height of 54 cm on logs of medium-small dimensions. The fixed work table measures 25x25 cm, optimized to ensure stability during operation. The hydraulic circuit uses 4 L of oil, ensuring fluidity and durability of the system.

Operational Safety and All-Terrain Mobility

Safety is ensured by the two-hand control equipped with anti-burst protection, compliant with CE regulations. Mobility is facilitated by oversized rubberized plastic wheels, with a diameter of 23 cm, designed for use on uneven terrain. The side plates provide stable support to the trunk during the splitting process.

Intended for operators with technical knowledge, the Junior SV 60 CE M3 is ideal for processing seasoned wood of medium-high hardness, such as beech, chestnut, and ash. The compact and robust structure, combined with an ergonomic and safe control system, allows for intensive use in semi-professional contexts.

Watch the video

Features

• Professional vertical log splitter
• 230V electric motor
• 7 Ton splitting power
• 50 cm piston stroke
• 54 cm cutting height
• 4 L hydraulic oil (Shell S1 M46)
• Wheel diameter Ø 230 mm
• 2-hand control
• 25 x 25 cm work table
• Indicative weight 104 kg
• Made in Italy
