CGM S12000 DUAL
Soundproof Generator
230V/400V - 9/13.2 kW - 12 V
794 cc - 16 HP
DIESEL - Liquid Cooled
€6,344.00
€5,200.00 tax excl.
Warranty 2 years
Shipped on Pallet

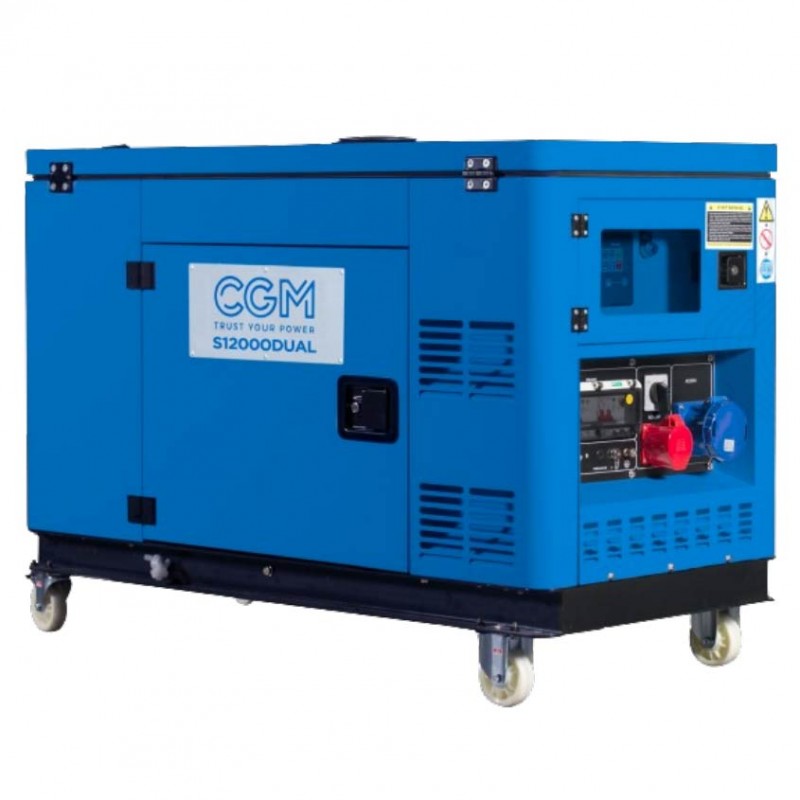

CGM S12000 DUAL - Soundproof Generator
CGM S12000 DUAL soundproof generator set equipped with a CGM D16HP WATER COOLED water-cooled diesel engine and with electric starting system with 12 V battery, key and battery .
This generator has a single-phase/three-phase voltage selector and a manual panel with quick connector for connecting an automatic ATS .
CGM S12000DUAL with 400V produces a maximum power of 13.2 kVA - 10.6 kW cos φ 0.8 , while with 230V it produces a maximum power of 9.9 kVA - 8.9 kW cos φ 0.9 . Generator with consumption of 3 L/h , autonomy of 10 hours , engine displacement of 794 cc and 2 cylinders .
This generator's tank has a 30-liter capacity, allowing for excellent autonomy. The soundproofed cabin is also weatherproof , allowing for a very low noise level of just 70 dB(A) at a distance of 7 meters . Anti-vibration rubber mounts are included to prevent excessive vibration.
Electrical panel
The electrical panel of this CGM S12000 DUAL generator has several sockets:
- 32 A 3P 230V CEE socket
- 32 A 5P 400V CEE socket
- Circuit breaker with differential protection
Available models
Selectable from the drop-down menu:
- Standard Version
- Generator + ATS 230 V 80 A
- Generator + ATS 400 V 40 A
Characteristics
- Soundproof
- Diesel Engine
- Water cooling
- 30 L tank
- Electric start
- Voltage selector
- Quick connector for ATS
- Consumption of 3 L/h
- Battery life 10 hours
- Noise level 70 dB(A) at 7 m
- Displacement 794 cc
Optional Equipment
- Automatic panel with network/group switching
Technical Data
| Motor | CGM D16HP WATER COOLED |
| Voltage | 230V / 400V |
| Engine Power | 16 HP |
| Engine RPM | 3000 RPM |
| Single Phase Nominal Amperage | 39 A @ 230V |
| Three-Phase Nominal Amperage | 16 A @ 400V |
| Displacement | 794 cc |
| Cylinders | 2 |
| Starting System | Electric - Tear-Off |
| Drums | 12 V |
| Fuel | Diesel |
| Consumption | 3 L/h @ 75% |
| Tank Capacity | 30 L |
| Voltage Selector | 230V / 400V |
| Maximum power 230V | 9.9 kVA - 8.9 kW cos φ 0.9 |
| Continuous Power 230V | 9 kVA - 8.1 kW cos φ 0.9 |
| Maximum power 400V | 13.2 kVA - 10.6 kW cos φ 0.8 |
| Continuous Power 400V | 12 kVA - 9.6 kW cos φ 0.8 |
| Voltage Regulation | AVR |
| Noise | 70 dB(A) at 7 m |
| Voltage Accuracy | + - 1% |
| Dimensions | 136 x 65 x 98 cm |
| Weight | 320 kg |
Technical Data
| Motor | CGM D16HP WATER COOLED |
| Voltage | 230V / 400V |
| Engine Power | 16 HP |
| Engine RPM | 3000 RPM |
| Single Phase Nominal Amperage | 39 A @ 230V |
| Three-Phase Nominal Amperage | 16 A @ 400V |
| Displacement | 794 cc |
| Cylinders | 2 |
| Starting System | Electric - Tear-Off |
| Drums | 12 V |
| Fuel | Diesel |
| Consumption | 3 L/h @ 75% |
| Tank Capacity | 30 L |
| Voltage Selector | 230V / 400V |
| Maximum power 230V | 9.9 kVA - 8.9 kW cos φ 0.9 |
| Continuous Power 230V | 9 kVA - 8.1 kW cos φ 0.9 |
| Maximum power 400V | 13.2 kVA - 10.6 kW cos φ 0.8 |
| Continuous Power 400V | 12 kVA - 9.6 kW cos φ 0.8 |
| Voltage Regulation | AVR |
| Noise | 70 dB(A) at 7 m |
| Voltage Accuracy | + - 1% |
| Dimensions | 136 x 65 x 98 cm |
| Weight | 320 kg |
