Hyundai 65241
Silenced Diesel Inverter Generator 6.5 kW

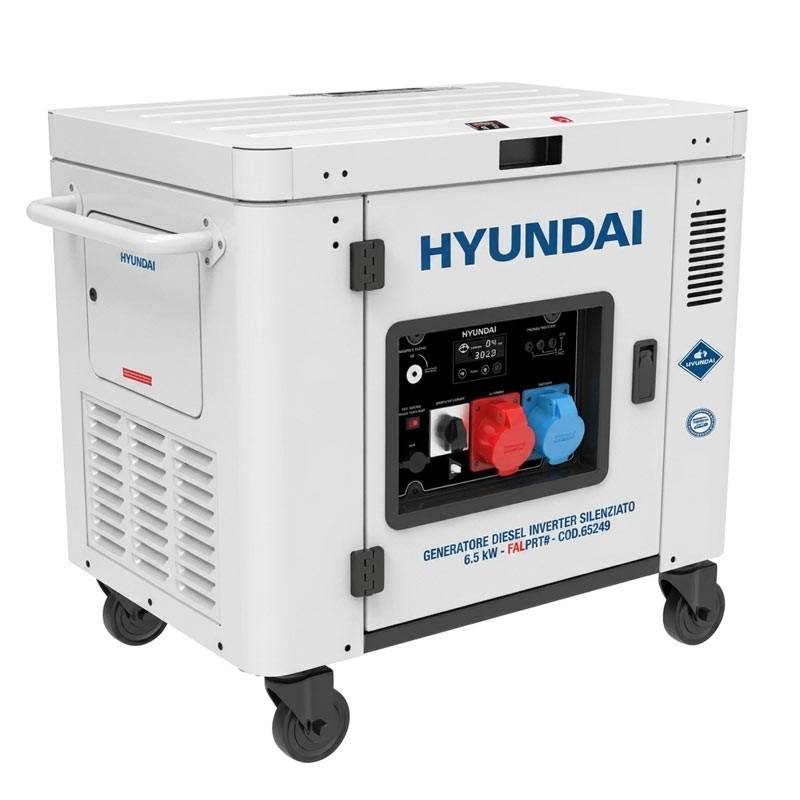

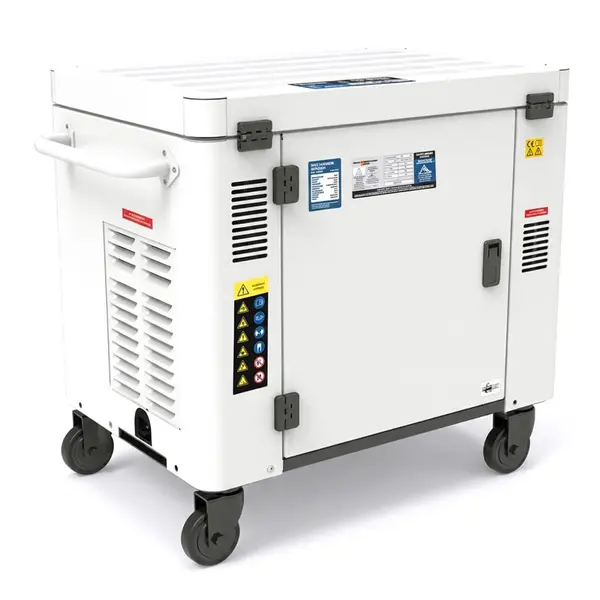

Hyundai 65241 - Silenced Diesel Inverter Generator 6.5 kW

Hyundai 65241 is a professional diesel generator with inverter technology, Full Power configuration, and maximum power of 6.5 kW. The generator set is equipped with a 498 cc single-cylinder 4-stroke diesel engine, 7.5 HP power, and electric key start.

The alternator with 100% copper winding ensures a structure suitable for continuous and professional use. The generator provides 230/400 V, with a rated power of 6 kW and possibility of single-phase and three-phase use. The 25 L diesel tank ensures autonomy of up to 10 hours at 100% load.

The machine is also equipped with a wheeled frame, silenced system, digital display, overload protection, low oil level alarm, and ATS predisposition (optional).

FUNCTIONAL SPECIFICATIONS

6.5 kW Full Power

The Hyundai 65241 generator develops a maximum power of 6.5 kW and a rated power of 6 kW. The Full Power configuration allows the available power to be used in both single-phase and three-phase modes.

230/400 V Output

The diesel generator set has an output voltage of 230/400 V. The available current is 26.1 A at 230V and 8.7 A at 400V, allowing the connection of single-phase and three-phase loads.

Inverter Technology

Inverter technology manages electricity production through a dedicated electronic system, providing power suitable even for devices requiring greater stability of electrical parameters.

Copper Alternator

This diesel inverter generator uses an alternator with 100% copper winding, designed to ensure high conduction capacity and good thermal management during operation.

498 cc Diesel Engine

The engine is a single-cylinder 4-stroke diesel with a displacement of 498 cc and a power of 7.5 HP. The operating speed is 3300 RPM.

Electric Start

The electric key start allows the engine to be started without resorting to manual starting systems.

25 Liter Diesel Tank

The tank has a capacity of 25 L. The generator's autonomy reaches 10 hours at 100% load.

Silenced Operation

The Hyundai silenced generator is designed to reduce noise during operation. The declared noise level is 97 dB(A).

Digital Display

The control panel integrates a multifunction digital display showing volts, frequency, and hour meter, allowing verification of main operating parameters and usage hours.

Sockets and Electrical Outputs

The panel features 1 x AC 16 A 415V socket and 1 x AC 32 A 250V socket, as well as a DC output. The configuration allows for the connection of different types of electrical loads.

Overload Protection

Overload protection intervenes to protect the electrical system in case of power demand exceeding the intended operating limits.

Oil Alarm

The engine has a 1.65 L oil tank and a low oil level alarm, which signals the need to check the lubricant level.

Wheeled Frame

The wheeled frame facilitates the transport and positioning of the generator set within the area of use.

ATS Predisposition

Hyundai 65241 is ATS ready. With the installation of the ATS (optional), the generator can be configured for systems requiring automatic power switching in case of mains power failure.

Hyundai 65241 is also ready for the ATS 65293 kit - to be purchased separately.

FEATURES

• Diesel inverter generator
• Full Power configuration
• Rated power 6 kW
• Maximum power 6.5 kW
• Output voltage 230/400 V
• 100% copper alternator
• 4-stroke diesel engine
• Displacement 498 cc
• Engine power 7.5 HP
• Electric key start
• Engine speed 3300 RPM
• 25 L diesel tank
• Autonomy up to 10 hours at 100% load
• Noise level 97 dB(A)
• Silenced system
• Digital display volts/frequency/hour meter
• Overload protection
• Low oil level alarm
• 1 x AC 16 A 415V socket
• 1 x AC 32 A 250V socket
• DC output
• Wheeled frame
• ATS predisposition
• Optional ATS
