Lavor L5 50BT
Battery-Powered Floor Scrubber Dryer
with Traction Motor

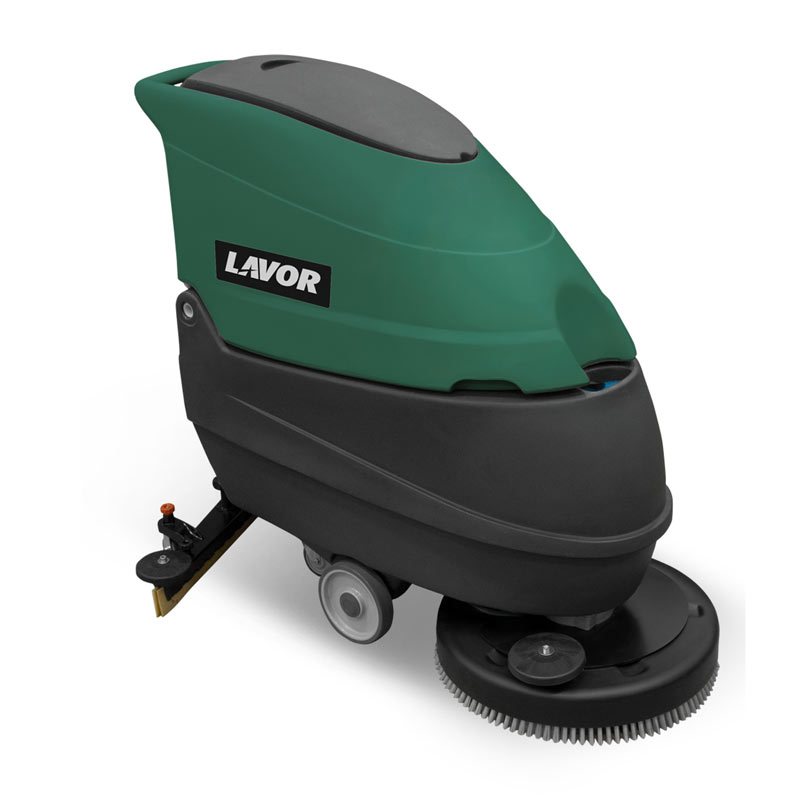

Lavor L5 50BT - 24V Battery-Powered Floor Scrubber Dryer

The Lavor L5 50BT is a professional battery-powered walk-behind scrubber dryer designed to ensure high performance in cleaning small commercial and industrial environments, up to approximately 1500 m² . It is a compact and highly manoeuvrable machine, ideal for sectors such as car showrooms , retail outlets , gyms and wellness centres , where deep but continuous and minimally invasive cleaning is required.

Thanks to its Made in Italy configuration and the presence of a single high-efficiency brush , this scrubber-dryer combines power, reliability, and ease of use. The integration of the 24V battery system with assisted traction and charge indicators with progressive protection makes the Lavor L5 50BT an extremely efficient solution for intensive professional use, while ensuring operational safety and work continuity.

TECHNICAL SPECIFICATIONS

The Lavor L5 50BT is powered by a 24V battery system that guarantees operating autonomy and freedom of movement without cable constraints. The battery compartment is integrated into the lower tank, designed for maximum accessibility and protection, while batteries and charger are included as standard. The electrical system is supported by an intelligent control with a discharge indicator and progressive protection of the operating functions .

From a performance point of view, the machine is equipped with a 550 W brush motor and a 400 W suction motor , capable of generating a depression of 1280 mm H2O . The working width is 500 mm , with an 800 mm squeegee drying system, ensuring an hourly throughput of up to 2000 m²/h . The tanks are made of rotational polyethylene resistant to impacts and chemicals , with a capacity of 44 L for the solution and 60 L for recovery , ensuring high operational continuity.

FUNCTIONAL SPECIFICATIONS

Compact cleaning system for professional environments

The Lavor L5 50BT is designed as a compact professional walk-behind scrubber dryer , designed to operate in small spaces without compromising cleaning efficiency. Its compact structure allows for optimal maneuverability even in congested environments such as car showrooms and retail spaces, always maintaining high and consistent performance.

24V battery power supply with operating autonomy

The professional 24V battery system guarantees complete freedom of movement and freedom from direct power supply constraints. The included batteries and charger allow for immediate use, while the energy management system ensures optimized power distribution throughout the work cycle.

High-performance washing system with 550W brush

The washing unit is equipped with a brush powered by a 550W motor , designed to ensure a deep and uniform clean. This system allows the Lavor L5 50BT professional scrubber-dryer to remove stubborn dirt even on high-traffic surfaces, maintaining constant pressure and performance.

High vacuum suction for rapid drying

The 400W suction motor generates a vacuum of 1280 mm H2O , ensuring rapid and complete drying of treated surfaces. This system makes the machine particularly effective in reducing downtime in cleaned areas, improving overall productivity.

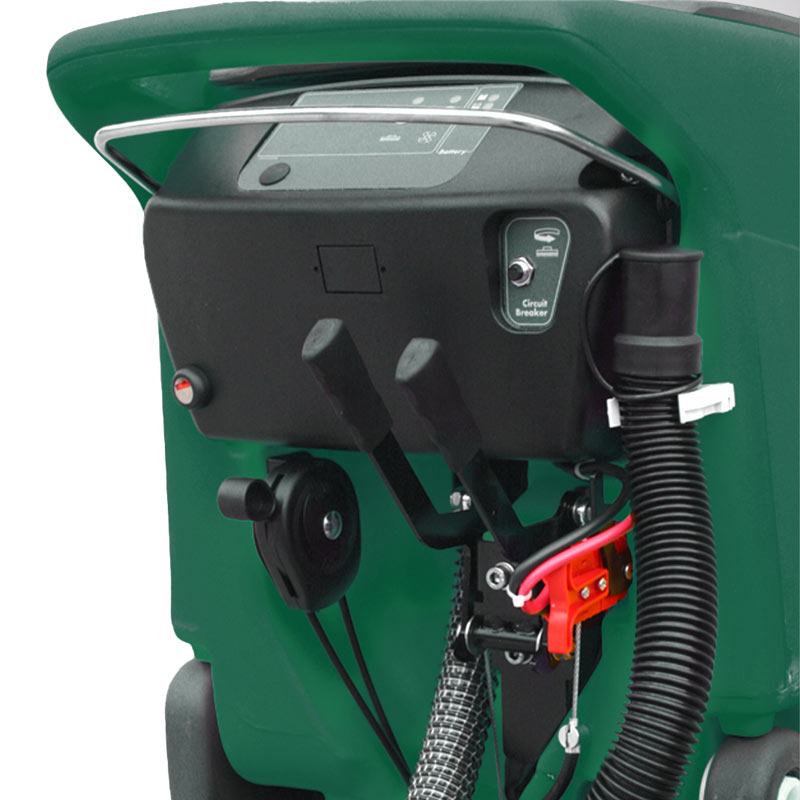

Safety system with operator presence control

The control panel is equipped with a safety system that detects operator presence , ensuring controlled and safe use of the machine. This system helps reduce the risk of misuse and improves overall management of operations in professional settings.

Intelligent battery management with progressive protection

The battery discharge indicator, with progressive inhibition of the brush and vacuum functions, allows for optimized management of residual energy. This system preserves battery integrity and ensures controlled shutdown of functions, avoiding sudden interruptions.

Solution distribution system with solenoid valve and filter

Detergent solution management is handled by a system with a control lever , integrated filter , and solenoid valve . This configuration ensures precise and consistent detergent distribution, optimizing consumption and improving washing effectiveness.

Easy access and simplified maintenance of the battery compartment

The battery compartment is designed to be extremely accessible , facilitating maintenance and replacement operations. The structure integrated into the lower tank allows for orderly and safe management of energy components.

Quick emptying system and inspectable tank

The recovery tank's quick-emptying system, combined with its accessible structure, allows for efficient management of collected liquids. This solution reduces machine downtime and simplifies cleaning and maintenance operations.

Quiet operation for sensitive environments

The Lavor L5 50BT 's design includes a protected suction motor, which contributes to quiet operation. This feature makes it particularly suitable for settings such as wellness centers, gyms, and busy retail environments.

Traction assist system for controlled progress

The machine is equipped with a traction motor that assists forward motion, improving operating comfort and reducing operator fatigue. This system ensures smooth and controlled operation, increasing overall efficiency in professional cleaning operations.

Characteristics

• Battery-powered floor scrubber dryers for professional environments
• 24V power supply
• Working width 500 mm
• Drying width 800 mm
• Hourly output 2000 m²/h
• 550W brush motor
• 400 W 1280 mm H2O suction motor
• 44L detergent tank
• 60 L recovery tank
• Adjustable detergent flow

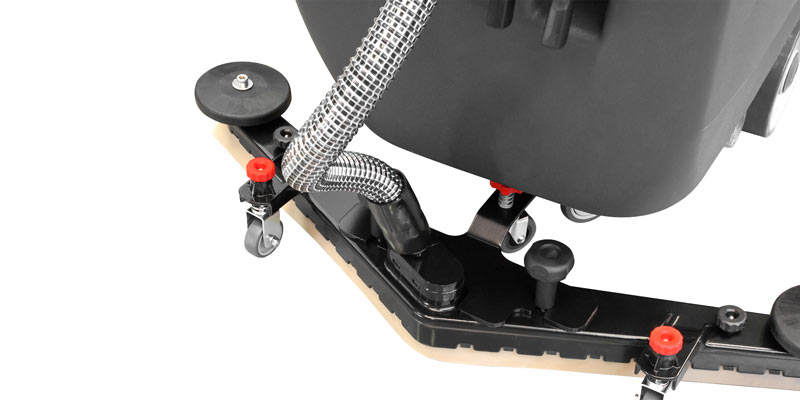

• Wide coverage squeegee system
• Silent operation
• Battery and charger INCLUDED
• Traction engine
• Made in Italy

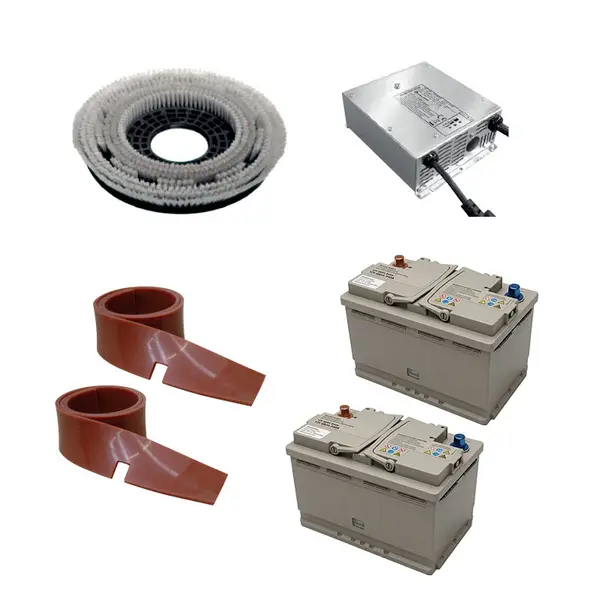

Standard equipment

• PP brush Ø 483 mm 19" - code 10002-08127
• Front squeegee blade L830 mm 40 Th 25 mm - cod. 00005-02298
• Rear squeegee blade L870 mm 40 Th 3 mm - cod. 00005-02297
• CBHD1 24V 10A On-Board Battery Charger - Code 00056-00038
• AGM GEL Battery 12V 88 Ah C5, quantity 2 - code 2x 00055-00183
