Lavor L1.5 36B
Washer Dryer for Small Environments
1260 m²/h
24V battery
Manual Traction

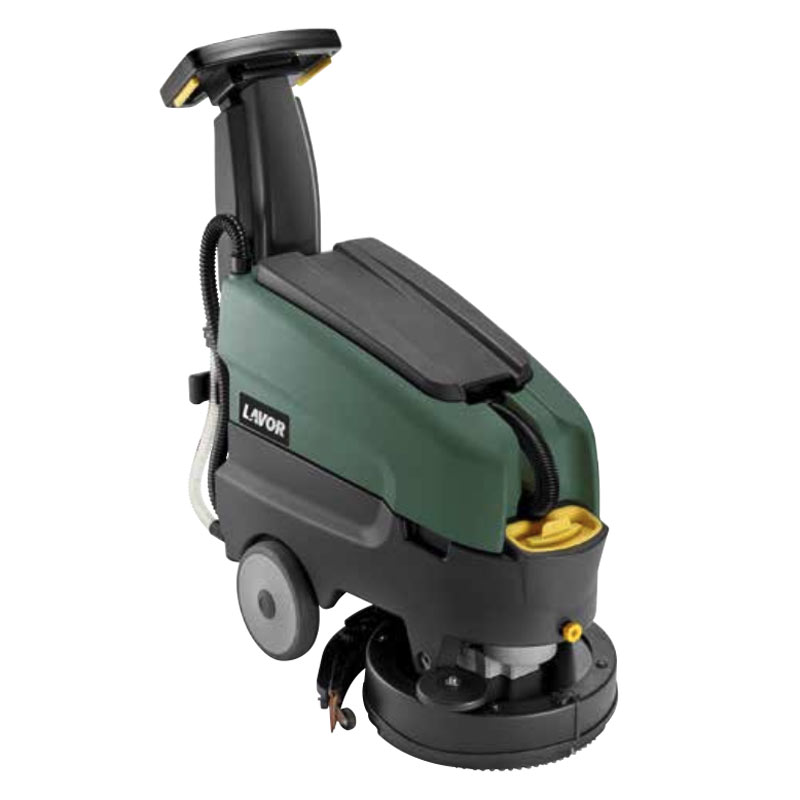

Lavor L1.5 36B - Washer Dryer for Small Environments
The Lavor L1.5 36 B walk-behind floor cleaner is a professional machine manufactured in Italy , designed to guarantee perfect cleaning in small internal environments such as hospitals , schools , offices, shops , bars and restaurants .
This washer dryer is equipped with a 36 cm rotating brush , with a rear Squagee brush , which collects the water sucked up at the same time and conveys it into the recovery tank .
With a reclining handle , the height of Lavor L1.5 36 B adapts to the operator's needs.
Lavor L1.5 36B is in fact equipped with 2 tanks , a 15 L detergent tank and a 16 L recovery tank.
Lavor L1.5 36B has dimensions 98 x 47 x 99 cm and weighs 70 kg . With suction filter .
Brush and Squeegee
The rotating brush supplied with the Lavor professional washer-dryer has a power of 400 W , with a suction power of the washer-dryer of 250 W.
The brush attaches automatically and can be quickly released manually ; the Squeegee brush, which is 46 cm wide, can be lifted with a lever.
The brush rotation speed is 160 RPM, while the pressure the brush exerts on the floor is 27 kg.
Cleaning with Disc Brush
At this point, you may be wondering what the difference is, in terms of cleaning, between a washer dryer with a disc brush, compared to other competing models. We will summarize it in these points:
- Allows for complete washing even close to walls
- For a prolonged action of the bristles on the surface
- To thoroughly degrease even the most encrusted dirt

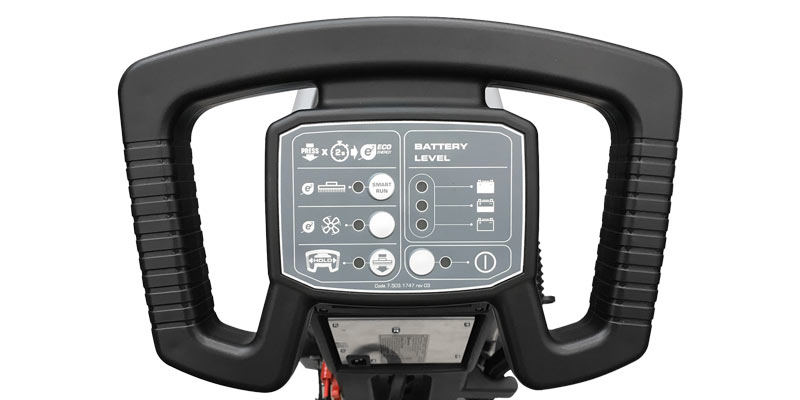

Lavor L1.5 36 B controls
This professional floor cleaner uses the innovative Eco Energy system , which allows you to optimize cleaning while saving on energy consumption . Among the controls there is a control panel that allows you to view the progress of Eco Energy.
Commands include:
- Control levers for machine operation
- Battery safety connector
- Knob to adjust the direction
- Knobs to adjust the height of the handle
- Charger connection
Applications and uses
- Automotive sector (Car washes, car showrooms, car rentals, petrol stations, workshops, auto electricians and body shops)
- Public sector (Schools, universities, kindergartens and libraries, canteens and kitchens, gyms and sports facilities, churches, municipalities, stations, barracks)
Characteristics
- Ideal for cleaning small environments such as: shops, offices, kitchens, schools, hospitals, bars, gyms, restaurants
- Replaces normal manual cleaning systems
- Disc brush and rear brush Squeegee
- 2 tanks, detergent and recovery
- Quick brush release
- Removable recovery tank
- Eco Energy for energy saving
Optional Equipment - On request
- Front blade polyurethane L.537 - 0000502257 / Rear blade 0000502258
- Tynex/PP/PES brush Ø 36 and 38
- EWU Drive Disc Ø 36 - 10002-08107
- Abrasive discs set of 5 beige, green and black (various codes on request)
- AGM Battery 12V 33Ah - 2 x 00055-00098
Standard Equipment
- 36mm 14" PP Brush - 10002-13271
- Front and rear squeegee blade - 00005-02259/96
- On-board battery charger 24V 5A - 00056-00064
- AGM Battery 12V 33Ah - 2 x 00055-00098
Technical Data
Drums | 24V 33Ah |
Working Width | 36 cm |
Drying Width | 46 cm |
Hourly Yield | 1260 m²/h |
Solution Tank | 15 L |
Recovery Tank | 16 L |
Advancement Type | Mechanical |
Engine RPM | 130 RPM |
Brush Pressure | 27 kg |
Engine Power | 400W |
Detergent Dispensing | Solenoid valve |
Depression Aspiration | 850 mmH2O |
Aspiration Engine | 270W |
Battery charger | Included |
AGM Battery | 2 x Included |
Dimensions | 98 x 47 x 99 cm |
Weight | 70 kg |
Technical Data
Drums | 24V 33Ah |
Working Width | 36 cm |
Drying Width | 46 cm |
Hourly Yield | 1260 m²/h |
Solution Tank | 15 L |
Recovery Tank | 16 L |
Advancement Type | Mechanical |
Engine RPM | 130 RPM |
Brush Pressure | 27 kg |
Engine Power | 400W |
Detergent Dispensing | Solenoid valve |
Depression Aspiration | 850 mmH2O |
Aspiration Engine | 270W |
Battery charger | Included |
AGM Battery | 2 x Included |
Dimensions | 98 x 47 x 99 cm |
Weight | 70 kg |
