Svelt Jolly
Mobile Scaffold from 1.8 to 11.7 m
Aluminum

Svelt Jolly - Modular Professional Aluminum Mobile Scaffold

The Svelt Jolly Aluminum Mobile Scaffold, suitable for professional and domestic use , has a base of 2 x 1.05 m and is made up of modular sections from 1.81 m up to 11.67 m with a maximum working height reachable at 12.62 m. These modules are easy to handle and transport and are ideal for painting, installation, and maintenance work.

Svelt Jolly is made of a very light tubular aluminum alloy with a diameter of 50 mm with non-slip serrated rungs. Easy to assemble, this professional mobile scaffold is rust-proof and guaranteed for 5 years.

Each module is complete with everything needed based on the height the module allows to reach. This way, the user automatically purchases everything necessary for European standards UNIEN1004.1.2 with maximum safety. Wall anchoring is not mandatory for all modules; for anchoring requirements of each configuration, refer to the technical table at the bottom of the page.

Main Features of Svelt Jolly

• Base dimensions 2.00 x 1.05 m
• Aluminum Structure
• Load capacity of 200 kg/m² (including two people)
• Serrated Rungs
• Rung Spacing: 30 cm
• Module A with 4 adjustable wheels from 0 to 30 cm + brake
• Module C with hatch in Serrated Multilayer Wire Mesh
• Modular - configurable as desired

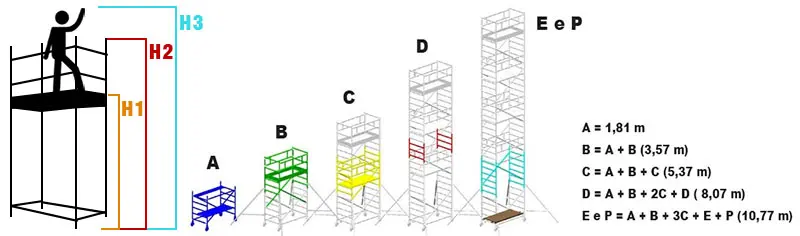

Available Configurations

Standard equipment depending on the module purchased and height

• Module A: h 1.81 m - Kg 56.70
  composed of:
  • 2 uprights
  • 2 diagonal braces
  • 2 horizontal braces
  • 4 wheels with brake Ø 150 mm and adjustable legs
  • 1 platform with hatch
• Module B: h 1.84 m - kg 50
  composed of:
  • 2 end frames
  • 2 diagonal braces
  • 2 guardrails
  • 1 toe board set (4 pieces)
• Module C: h 1.80 m - Kg 41.50

  • 2 intermediate frames
  • 2 diagonal braces
  • 2 guardrails
  • 1 trapdoor platform
• Module D: h 0.90 - Kg 8.50

  • 2 frames
• Module E: h 1.80 m - Kg 17

  • 2 intermediate frames
  • 2 diagonal braces
• Module P:
  1 trapdoor platform (without toe boards), 1 solid platform.
• Module F:
  kit of 4 toe boards (2 long, 2 short).
• Module S/S1:
  4 stabilizer brackets
• SERVOTECH
  accessory that allows safe assembly/disassembly of guardrails while standing on the lower platform (EN1004.1). Once the guardrails are installed, the operator can ascend to the upper platform in complete safety, protected on all sides. code TJOLLYSER Kg 3.5.

* In JOLLY mobile scaffolds compliant with European standards UNIEN1004.1.2, trapdoor platforms can be used without toe boards. Anchoring is not mandatory.
* If trapdoor platforms are used for working, they must be completed with the toe board kit (Module F).
* For JOLLY (D.Lgs 81/08), all additional intermediate work platforms must always be supplied with a toe board kit (module F) + 2 guardrails.

Watch the video

Functional Specifications

Optional Accessories

• Trapdoor Platform (without toe boards)
  Module P (TJOLLYPL2)
• Set of 4 Toe Boards  (2 long + 2 short)
  Module F (TJOLLYFPW)
• 4 Stabilizer Brackets
  Module S (TJOLLYPS)
• 4 Stabilizer Brackets (small for module A)
  Module S1 (TJOLLYAPS)
• Pre-assembled Base with Automatic Base (quick open/close)
  Module A  (TJOLLY11W)
• Kit for safe assembly of guardrails (2 pieces)
  Servotech (TJOLLYSER/2)
• Additional Guardrail for Jolly
  Italian standard DLGS81/08 compliant (TJOLLY0P)
