Svelt SvelTower
Ultracompact Scaffold
Quick Assembly by 1 operator
Working Height from 2.87 to 6.17 m
Base Size 0.74 x 1.10 m
200 Kg/m² - EN 1004.1.2
€1,300.00
€1,065.57 tax excl.
Warranty 2
years
Shipped on Pallet

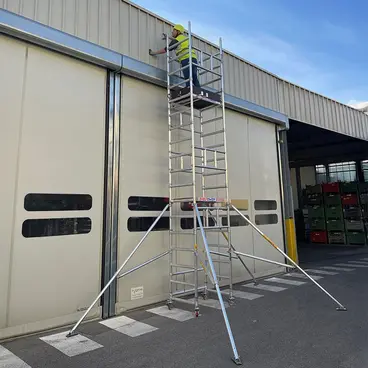

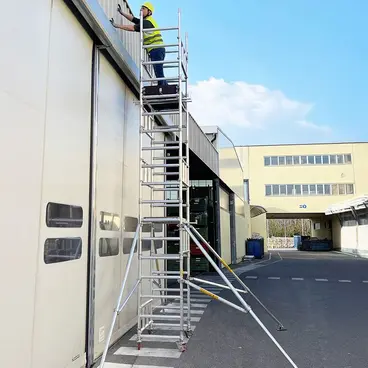

Svelt Sveltower - Ultracompact Professional Aluminum Scaffold h max 5.67 m.
PATENTED: SELF-ASSEMBLING!
The Svelt Sveltower Aluminum Scaffold is specifically designed for professional use and is characterized by its extreme ease of rapid assembly by a single operator. Thanks to this configuration, a single operator can assemble it safely in less than 10 minutes without having to get down during assembly. When closed, the Sveltower Scaffold has compact dimensions making it very easy to transport.
With base dimensions of 74 x 110 cm, this scaffold is modular, thanks to the possibility of assembly according to choice of modular sections with heights from 2.37 m to 5.67 m (maximum working height 6.17 m).
Svelt Sveltower is ideal for painting, installation, maintenance, and similar jobs.
This professional outdoor scaffold is made of lightweight aluminum profile Ø 50 mm (1.2 mm thickness). Easy to assemble, this professional scaffold is rust-proof and guaranteed for 5 years.
Each module is complete with everything needed based on the height the module reaches. This way, the user automatically purchases everything necessary for European regulations UNIEN1004.1.2 with maximum safety. Wall anchoring is not mandatory.
Main Features of Svelt Sveltower
- Base dimensions 74 x 110 cm
- Aluminum Structure
- Load capacity of 200 kg/m² (1 operator)
- 4 wheels Ø 125 mm with brake
- 4 legs of 15 cm
Available Configurations
| Platform Height | Total Height | Working Height | |
| ATOWER187 | 0.87 m | 2.37 m | 2.87 m |
| ATOWER217 | 1.17 m | 2.67 m | 3.17 m |
| ATOWER277 | 1.77 m | 2.77 m | 3.77 m |
| ATOWER307 | 2.07 m | 3.27 m | 4.07 m |
| ATOWER397 | 2.97 m | 4.47 m | 4.97 m |
| ATOWER427 | 3.27 m | 4.77 m | 5.27 m |
| ATOWER487 | 3.87 m | 5.37 m | 5.87 m |
| ATOWER517 | 4.17 m | 5.67 m | 6.17 m |
Included in every purchase:
- 4 wheels Ø 125 mm
- 4 adjustable legs: 150 mm
- Guardrail
- Aluminum Work Platform
- Wooden toe board kit
- Manual and instruction labels
Watch the video
Technical Specifications
- Can be assembled/disassembled by one person
- Quick and safe assembly in under 10 minutes
- Rigid, lightweight, sturdy, and resistant
- Platforms equipped with retractable hooks to hold components and avoid descending to retrieve them during assembly
- Compact for transport
- Minimal footprint during use, even in confined spaces
Functional Specifications
Compact
The base module of Sveltower transforms into a practical trolley that allows transporting all the components required for assembly. This trolley forms the base of the scaffold to be assembled. With a width of just 74 cm and depth of 110 cm, it can easily pass through doors, corridors, and fit into standard elevators, as well as vans.
Ideal for Rental
Thanks to its ease of handling and transport, this scaffold is perfectly suited for rental. Rental companies can easily store and deliver the scaffold to customers directly in the trolley. This avoids manual transport during both delivery and return phases.
Retractable Work Platforms
Work platforms with quick-release button retractable brackets for supporting components. They prevent the operator from constantly descending, as all components are found at height within reach.
Self-Assembly (1 operator)
The operator assembles the first modules from the ground. Before climbing onto the platform to assemble subsequent modules, they hang all components on the special retractable hooks inserted into the platform above. This way, when climbing up for assembly, all components will be within reach, and they won't have to constantly descend to retrieve others.
Optional Accessories
- Double Guardrail
- Work Platform
- Stabilizer Bracket
- Toe Board Set
- 3-rung frame
- 4-rung frame
- Wheel Ø 125 mm with brake
- 15 cm Leg
Technical Data
| Model | ATOWER187 | ATOWER217 | ATOWER277 | ATOWER307 | ATOWER397 | ATOWER427 | ATOWER487 | ATOWER517 |
| Platform Height m | 0.87 m | 1.17 m | 1.77 m | 2.07 m | 2.97 m | 3.27 m | 3.87 m | 4.17 m |
| Total Height m | 2.37 m | 2.67 m | 2.77 m | 3.27 m | 4.47 m | 4.77 m | 5.37 m | 5.67 m |
| Working Height m | 2.87 m | 3.17 m | 3.77 m | 4.07 | 4.97 m | 5.27 m | 5.87 m | 6.17 m |
| Base Dimensions | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm | 74 x 110 cm |
| No. of Platforms | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| No. of Toe Boards | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Indoor Use | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| Outdoor Use | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 | EN1004 |
| No. of 4-rung frames | 2 | 4 | 2 | 4 | 4 | 6 | 4 | 6 |
| No. of 3-rung frames | 2 | 0 | 4 | 2 | 4 | 2 | 6 | 4 |
| Guardrails | 3 | 3 | 4 | 4 | 6 | 6 | 7 | 7 |
| Total Weight | 47.5 kg | 49 kg | 79 kg | 80.5 kg | 100.5 kg | 102 kg | 109 kg | 111 kg |
