Base I-CODE B1223
S1P ESD SRC
Micro-adjustable safety shoe

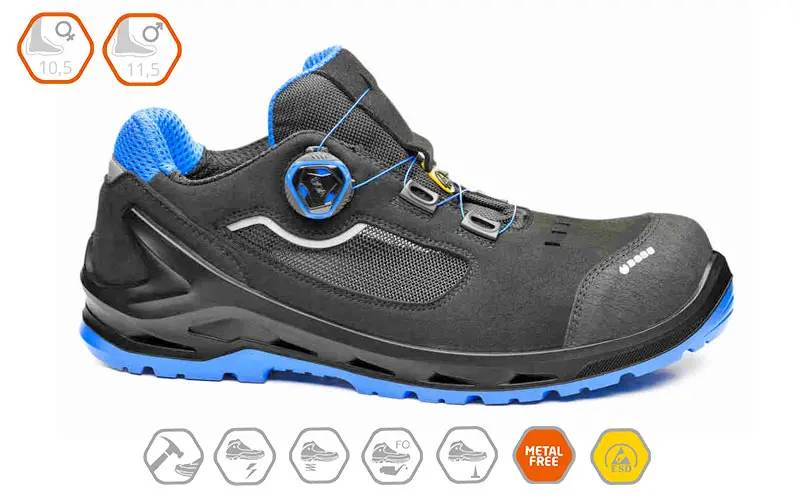

Base Protection i-CODE B1223 - Micro-adjustable safety shoe

Original Base Protection safety shoes model i-CODE CA-B1223-0WA of the i4 line equipped with BOA closure system with fit micro -regulation for a constant fit and quick and easy opening.
Thanks to the 3D technical fabric lining, this Base Protection safety shoe guarantees maximum breathability , reducing bad odors and bacteria, while the ultra-light and thin non-metallic toe cap is covered with an abrasion-resistant toe cap for greater durability.

This i-CODE B1223 shoe features a Dry'n Air removable anatomical footbed and is compatible with other insoles according to DGUV 112-191.

Base Protection I-CODE CA-B1223-0WA complies with the S1P ESD SRC standard according to the EN ISO 20345:12 standard, satisfying the CEI EN 61340-5-1:2016 /COR1:2017, CEI EN IEC 61340-4- 3:2018, CEI EN IEC 61340-4-5:2018 regarding the requirements for "specific elements of protection from ESD" (ESD = Electro-Static Discharges = Electrostatic Discharges).

It is characterized by:

• Antistatic sole
• Energy absorption in the heel area
• Protection from electric shocks
• Hydrocarbon resistant sole
• Slip resistance
• Metal Free tip
• 200 Joule tip crush protection
• Orthopedic insole adaptation

Characteristics

• TOE CAP
  SlimCap - Non-metallic resistant to 200J

• INSOLE
  Fresh'n Flex

• SOLE
  AirTech + Tpu-Skin® anti-fatigue
  Resistant to hydrocarbons

• INNER LINING
  SmellStop anti-odour and antibacterial (Breathable 3D technical fabric)

• UPPER
  Microfiber
• SIZES/SIZES AVAILABLE
  35-48
• MONDOPOINT SIZE
  11.5 (men's fit - sizes ≥ 39)
  10.5 (women's fit - sizes < 39 )
• BOA® FIT LACING SYSTEM

Recommended area of use

• Indoor, internal use
• Logistics sector
• Use Warehouse

This original Base protective shoe features the following patented Base Protection® technologies:

BOA® FIT system

This system present on the Base I-CODE CA-B1223-0WA safety shoes consists of an innovative closure system characterized by three integral parts: a micro-adjustable dial, extra-strong light laces and low-friction lace guides designed to obtain a perfect fit, fast in both opening and closing and effortlessly.
This lacing system improves circulation.

OMNIA Dry'n Air® system

The Base Protection safety shoes with Dry'n Air System ensure an excellent thermoregulation capacity thanks to the simplified recirculation of the air present inside the work shoe. This innovative system pushes the humidity generated by sweat out of the footwear, improving the internal microclimate and the well-being of the foot, which remains dry and cool even in the presence of high temperatures.
The secret of this technology is a system of channels and holes, always free in an ergonomic insole capable of lifting the foot beyond the edge of the sole by distributing the weight evenly.

Fresh'n Flex system

The BASE I-CODE B1223 shoe is equipped with a 0 mm perforation ballistic fabric insert according to the EN ISO 20345:2011 standard.

Smell Stop® system

The 3D thermal fabric lining ensures maximum breathability while the permanent antibacterial system reduces the risk of infections and fungi by definitively counteracting the proliferation of bad smells.
The antibacterial treatment is effective throughout the life cycle of the safety shoes, performing a constant action.

AirTech + Tpu-Skin®

It is an anti-fatigue sole with exclusive technology patented by Base Protection to reduce the thickness of the tread making it less hard and compact, thus giving greater elasticity and a cushioning effect when walking.

SlimCap

The Metal Free toe cap of this Base Protection shoe has a reduced thickness of 6.5 mm, 35% less than standard work shoes on the market. This toe cap also features a perfectly contoured toe cap designed to prevent soreness and pressure on the toes.

Size Comparison Table

Guide to the correct interpretation of protection classes and standards

All safety shoes for professional use in accordance with EN ISO 20345:2022 are identified by the following wordings:

• SB (ex standard S0): Basic Protection
• S1 (ex standard 01): antistatic sole with energy absorption in the heel area
  • S1: They have no anti-puncture plate
  • S1P: They have anti-perforation plate in steel
  • S1PL: Have Metal Free anti-perforation foil for 4.5mm nails (Large)
  • S1PS: They have Metal Free anti-perforation plate for 3 mm nails (Small)
• S2 (ex standard 02): S1 + light impermeability given by an upper in leather (or similar materials) able to resist the permeability of water for max. 60 minutes.
• S3 (ex standard 03): S2 + anti-perforation plate
  • S3: They have anti-perforation plate in steel
  • S3L: Have Metal Free anti-perforation foil for 4.5 mm nails (Large)
  • S3S: They have Metal Free anti-perforation plate for 3 mm nails (Small)
• S4 : WRU water resistance
• S5 : S4 + anti-perforation plate
  • S5: They have anti-perforation plate in steel
  • S5L: Have Metal Free anti-perforation foil for 4.5 mm nails (Large)
  • S5S: They have Metal Free anti-perforation plate for 3 mm nails (Small)
• S6 : EXTRA Water Resistance (WR)
  • S6: They do not have anti-puncture plate
  • S6P: They have anti-perforation plate in steel
  • S6L: Have Metal Free anti-perforation foil for 4.5mm nails (Large)
  • S6S: Have Metal Free anti-perforation plate for 3 mm nails (Small)
• S7: S6 + anti-perforation plate
  • S7: They have anti-perforation plate in steel
  • S7L: Have Metal Free anti-perforation foil for 4.5 mm nails (Large)
  • S7S: Have Metal Free anti-perforation plate for 3 mm nails (Small)

Slip resistance classes - standard EN 13287 (2012):

• SRA : slip resistance with ceramic floor with water and detergent
• SRB: slip resistance with steel and glycerine floor
• SRC: SRA + SRB

Risk protection - standard 20345:2022:

P - Puncture resistant foil
E - Energy absorption from the heel
WR - Water Resistance (it is the improvement of the WRU)
WRU / WPA - Upper resistant to water penetration
AN - Malleolus protection
M - Metatarsal protection
HRO - Sole resistant to heat contact 300°C for 1 minute
HI - Heat insulation up to 150°C
CI - Cold insulation up to - 17°C
FO - Hydrocarbon resistant sole
ESD - Protection from electric shock
A - Electrostatic footwear
C - Conductive footwear (electricity)
CR - Cut Resistance
SR - Slip resistance with ceramic floor with water and detergent and with steel and glycerine
DGUV112-191 - Orthopedic insole adaptation
SC - Toe Abrasion Resistance
LG - Sole with heel detached from the plant for grip on ladder rungs
