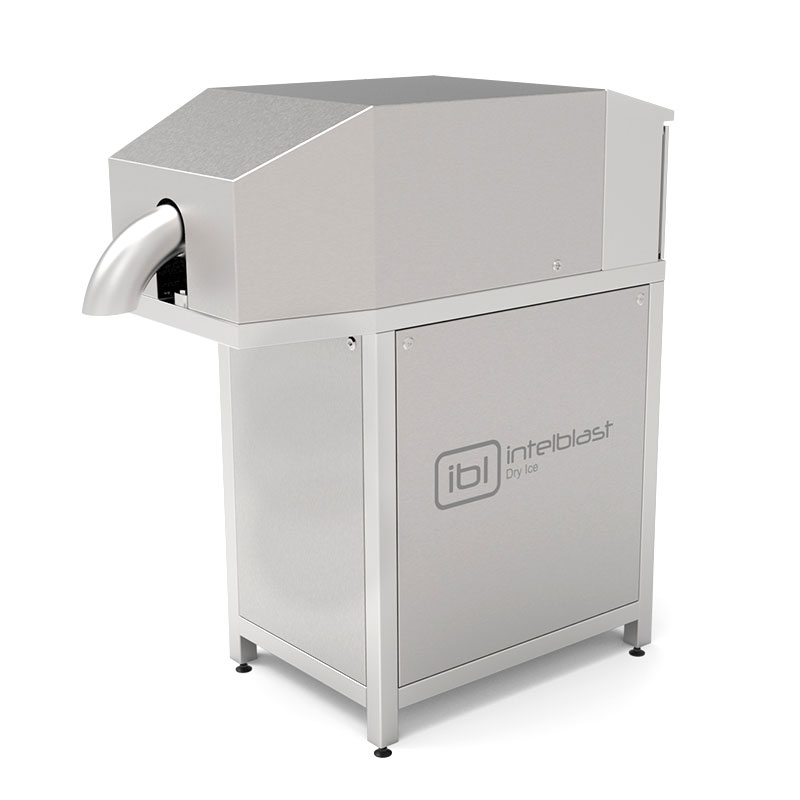

Intelblast DIP120
Dry Ice Pelletizer 120 kg/h

Intelblast DIP120 - Dry Ice Pelletizer 120 kg/h

The Intelblast DIP120 dry ice pelletizer is the ideal solution for companies looking to produce high-quality dry ice pellets quickly and efficiently. Designed with intelligent engineering and reliable components, this machine ensures consistent performance and low operating costs. With a production capacity of 120 kg/h, the Intelblast DIP120 perfectly meets the needs of in-house production for cryogenic cleaning and industrial cooling applications. The internal pipe system for the flow of liquid CO₂ optimizes the production process, allowing start-up in less than a minute. The practical touch panel allows for complete control of the machine and customization of operating parameters. Compact, robust, and constructed of stainless steel , the Intelblast DIP120 represents a strategic choice for those seeking production autonomy, reduced waste, and consistently fresh, high-performance pellets.

How it works

Production of pellets for cryogenic cleaning

The dry ice pelletizer converts liquid CO₂ (LCO₂) into solid pellets used for cryogenic cleaning and cooling . The process begins when liquid CO₂ , coming from the tank at a pressure of approximately 13–23 bar, enters the machine. Here it undergoes rapid expansion, causing a strong cooling and the formation of dry ice snow at −78.5 °C. This fine snow is then conveyed into the compression chamber , where a hydraulic system compacts it and pushes it through an extrusion plate with calibrated holes (e.g. 3 mm). During this phase, the material is densified and transformed into uniform cylindrical pellets. The result is high-density, ready-to-use dry ice pellets that are easy to dose.

Advantages

The production of dry ice pellets offers the following advantages:

• Short-notice delivery/production
• Reduce losses by producing only what is necessary
• Fresh pellets for cleaning and cooling

Technical specifications

Production capacity of 120 kg/h

The Intelblast DIP120 pelletizer is designed to meet most needs for internal dry ice production for cleaning and cooling. With a capacity of 120 kg/h , it offers an ideal balance between compactness, efficiency, and reliability. Intelligent engineering with internal pipes for the flow of liquid CO₂ reduces production costs and increases overall efficiency , allowing production to start in less than a minute.

Touch panel for complete control

This Intelblast DIP120 pelletizer is controlled via a modern touch panel that allows for customized settings to optimize production capacity. The input/output menu allows for complete system control, including functional testing of valves and components.

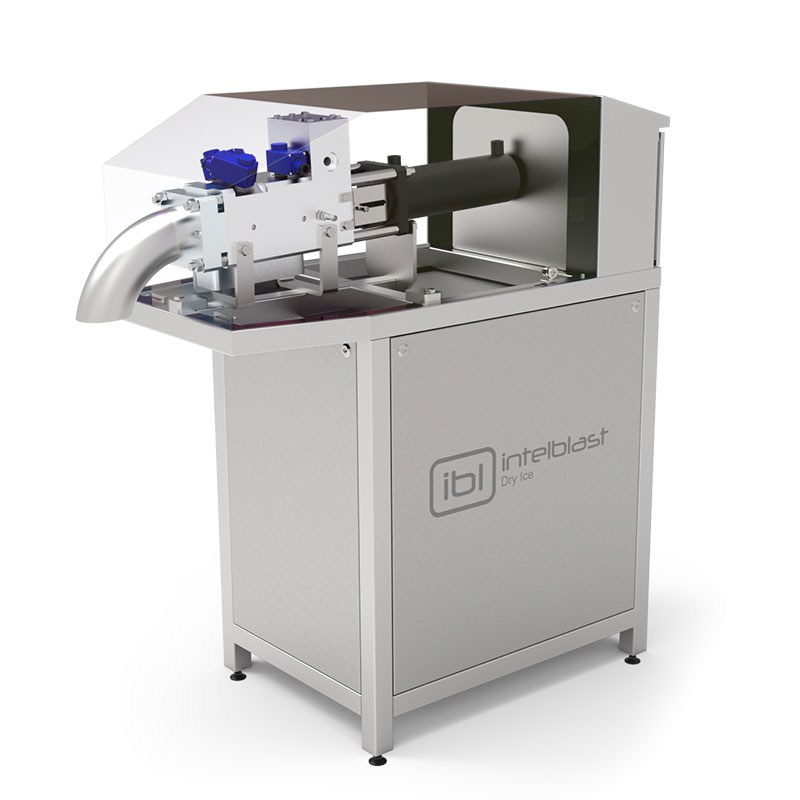

Quality components and robust design

In addition to the robust stainless steel cabinet, Intelblast uses components from high-quality technical brands such as Danfoss and Siemens , along with a high-performance hydraulic power unit. The special design of the pressing chamber improves the conversion of liquid CO₂ up to approximately 2.2 kg to produce 1 kg of dry ice, increasing efficiency compared to market standards.

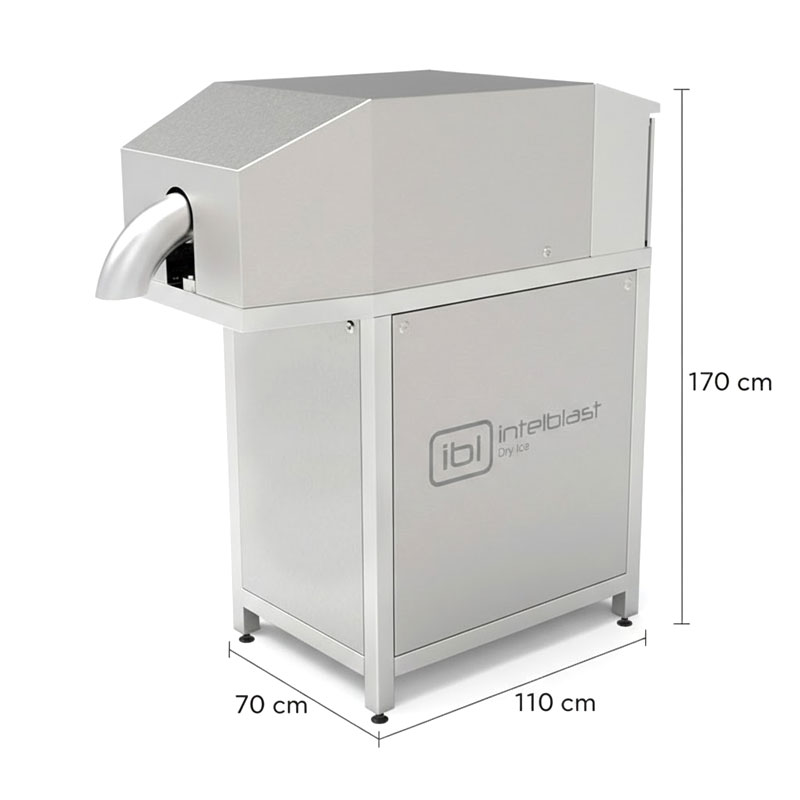

Stainless steel furniture

The Intelblast DIP120 features a stainless steel cabinet designed to be easily moved with a forklift, making cleaning the machine easier. Removable panels simplify maintenance, reducing time and costs.

Watch the Video

Presentation video of the Intelblast pelletizer range.

Characteristics

• Dry ice pelletizer
• High quality pellet production
• Fast and efficient operation
• Production capacity 120 kg/h
• Optimized CO2 flow
• Complete Touch Panels
• Robust stainless steel construction
