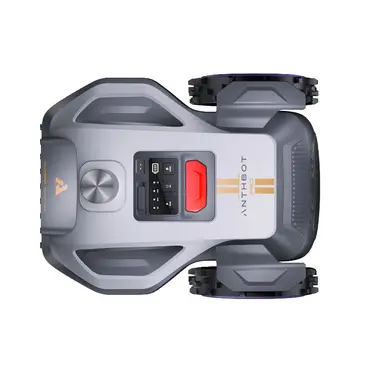

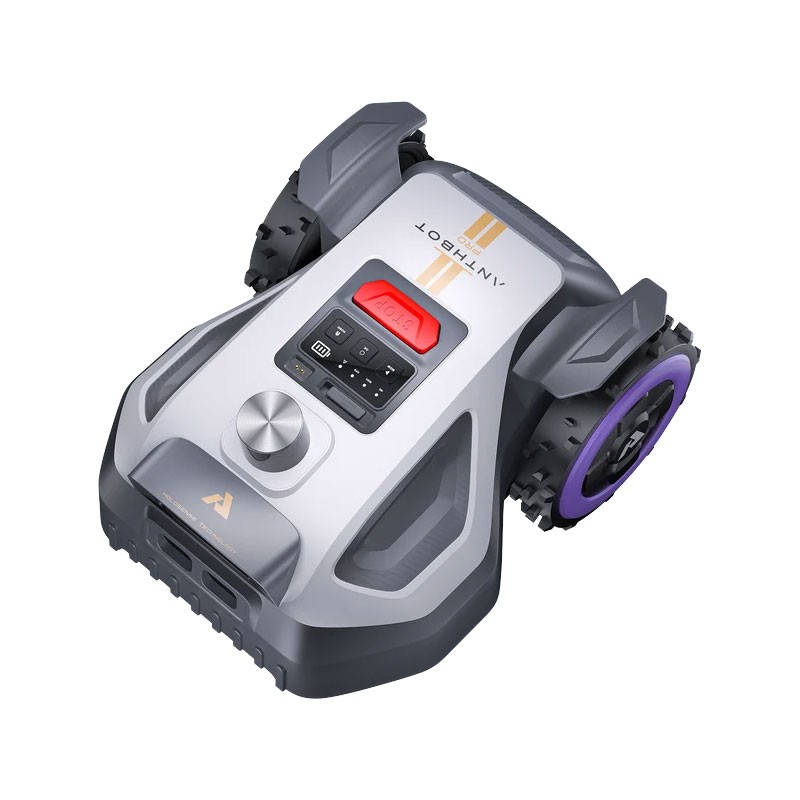

Anthbot M5 Pro
AI Vision 360° Robotic Lawnmower

Anthbot M5 Pro - Boundary Wire-Free Robotic Lawnmower with 360° LiDAR + RTK & NetRTK + Dual Vision AI

Anthbot M5 Pro is the robotic lawnmower designed for professional care of gardens up to 500 sqm without boundary wire. The HoloSense positioning system integrates 360° LiDAR, RTK, NetRTK, and AI vision for precise navigation in all conditions.

With a maximum manageable slope of 45% (24°) and automatic mapping, M5 Pro is the ideal choice for those seeking a reliable, autonomous, and easy-to-configure robotic lawnmower.

TECHNICAL SPECIFICATIONS

Anthbot M5 Pro is based on HoloSense Quad-Fusion positioning, which combines 360° LiDAR, RTK, NetRTK, and AI vision. The RTK station is included in the package. Alternatively, NetRTK technology, already integrated into the robot, allows it to work without a station via 4G connection, included free for the first year. Two HDR cameras with artificial intelligence complete the system, which is entirely managed via the Anthbot APP.

The robot can work on areas up to 500 sqm and handles slopes up to 45% (24°). Thanks to its narrow passage width of only 65 cm, and blade discs that allow a cutting width of 20 cm, this robotic lawnmower can work even in tight spaces with maximum efficiency. The cutting height adjustable from 3 to 7 cm is manageable via the APP. The planning manages up to 32 cutting zones and the AI vision recognizes over 1,000 obstacles.

FUNCTIONAL SPECIFICATIONS

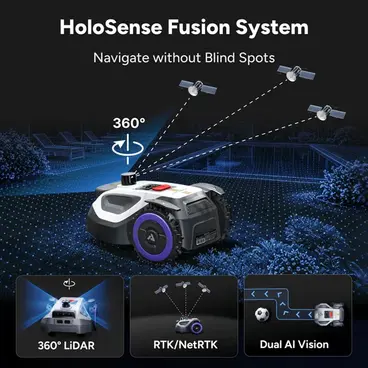

HoloSense Quad-Fusion Navigation: 360° LiDAR, RTK, and NetRTK

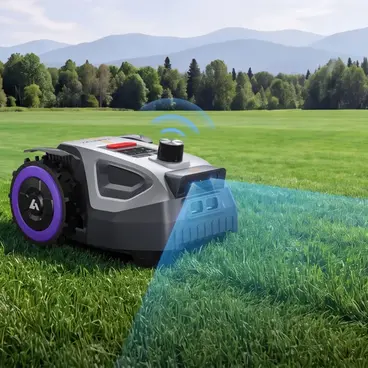

HoloSense technology combines 360° LiDAR, RTK, NetRTK, and AI vision to navigate without blind spots in all scenarios. LiDAR scans the 3D features of the environment and allows operation even where a GPS-only mower would get stuck, for example, under trees. NetRTK technology ensures perfect localization even in the most remote open areas.

The robot works with the included RTK station or, without a station, via NetRTK over 4G. The first year is free, then the service must be renewed to continue using M5 Pro without a station; alternatively, you can simply continue using only the RTK station.

AI Vision and Anti-theft: Safety for Lawn, People, and Animals

Two HDR cameras with AI capture precise details and easily detect even low-lying obstacles. Artificial intelligence recognizes over 1,000 obstacles, providing effective protection for the robot, people, and pets. Anti-theft monitoring adds an extra layer of investment protection.

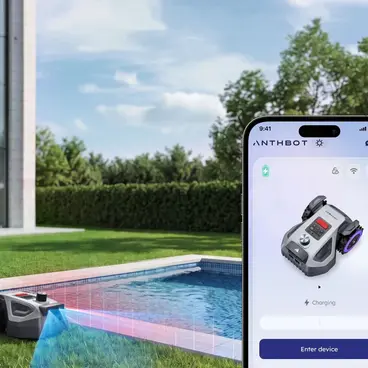

Drop & Mow, Automatic Mapping, and Multi-Zone Programming

Thanks to the Drop & Mow function, it takes only about 3 minutes to get the boundary wire-free robotic lawnmower operational. M5 Pro autonomously maps the work area, without human intervention and with a single touch. Intelligent multi-zone programming from the Anthbot APP allows organization of up to 32 cutting zones.

EdgeWiz™ Edge Cutting and App-Adjustable Cutting Height

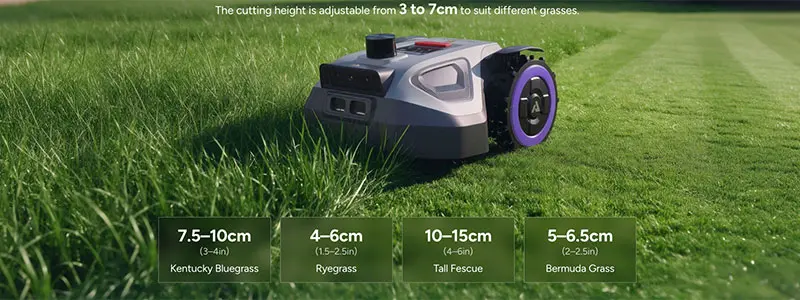

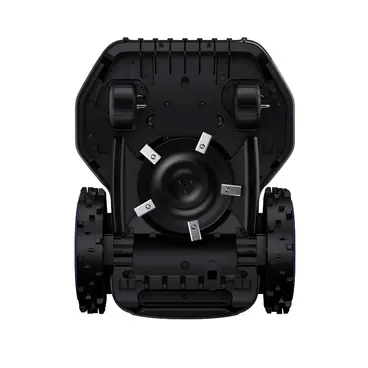

EdgeWiz™ precisely trims lawn edges. The robot mows efficiently with a U-shaped path thanks to the 20 cm blade discs and cuts grass even near roads, eliminating manual trimming. The cutting height is adjustable from 3 to 7 cm via the app, to adapt to different grass types.

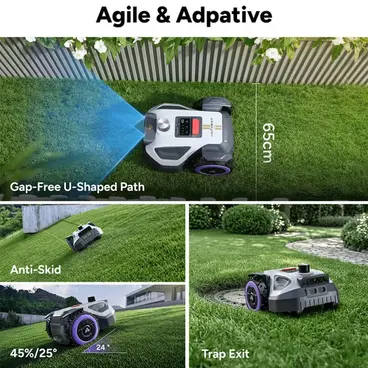

Agility on Slopes, Quiet Operation, and Rain Resistance

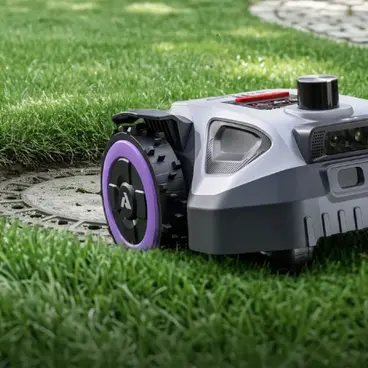

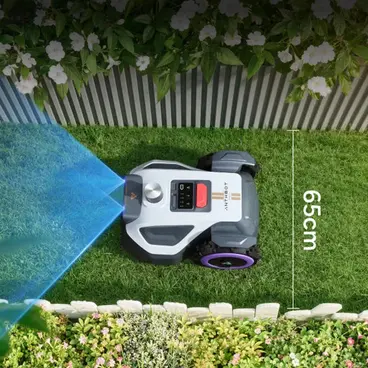

Compact and agile, the M5 Pro navigates narrow passages of only 65 cm, ensuring professional cutting. It can exit pits or lowered manholes on its own and handles slopes up to 45% (24°). Operation is quiet at only ≤ 58 dB.

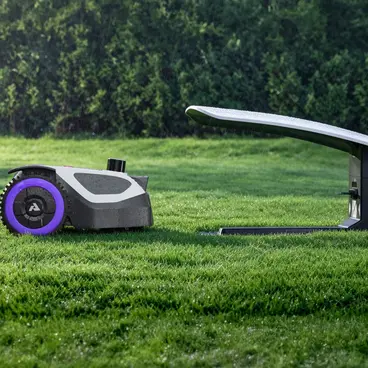

The IPX6 certification and rain sensor allow for autonomous return to the base when it starts raining.

Features

• Mowing up to 500 sqm
• HoloSense Positioning (360° LiDAR + RTK + NetRTK + AI Vision)
• Boundary wire-free
• RTK Station included
• NetRTK included with 1st year 4G free
• Automatic mapping
• Recognition of over 1,000 obstacles with AI
• Multi-zone programming up to 32 zones
• EdgeWiz edge cutting
• Slope up to 45% (24°)
• IPX6

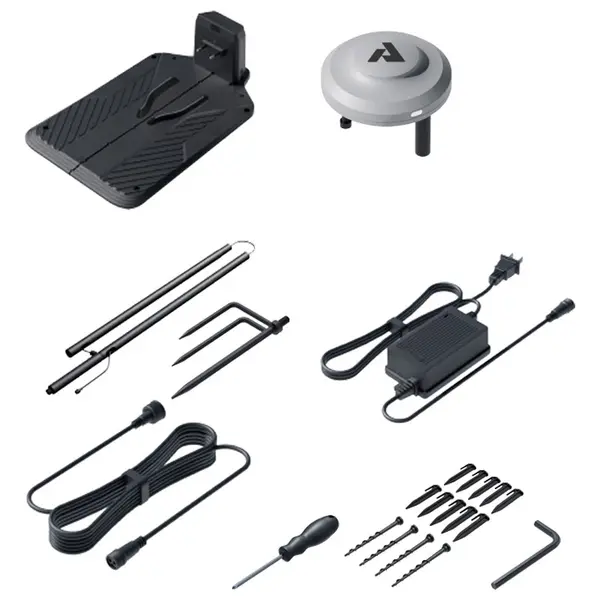

Standard Equipment

• Charging Station
• RTK Reference Station
• RTK Mounting Pole
• RTK Tripod Fixing Stake
• Charging Pile Adapter
• Charging Pile Adapter Extension Cable
• Screwdriver
• Tool Kit
