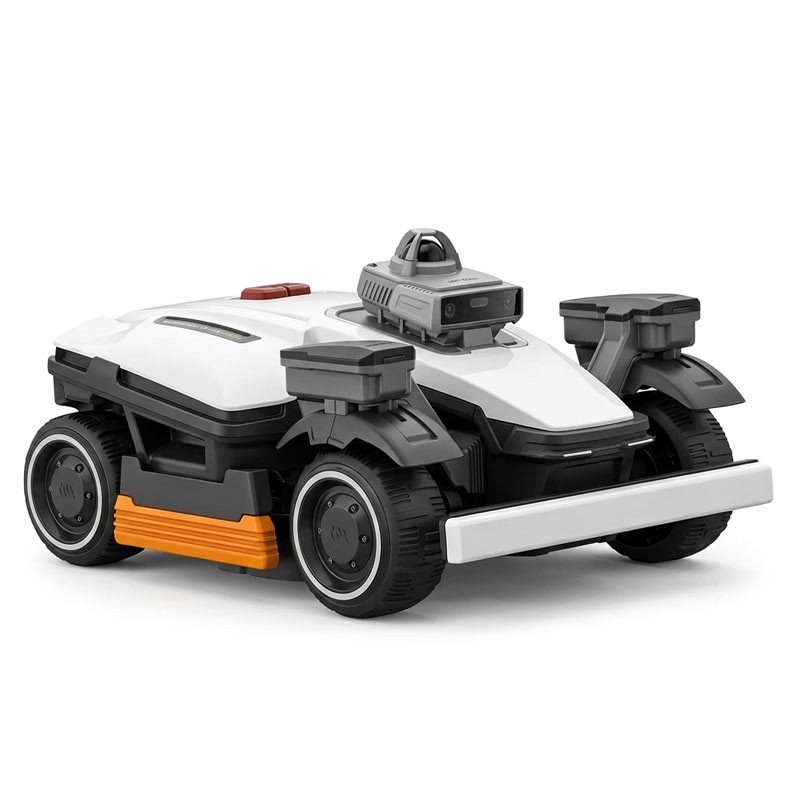

Mammotion LUBA 4 AWD 12000F
Wire-Free Robotic Lawnmower 12000 sqm

Mammotion LUBA 4 AWD 12000F - Wire-Free Robotic Lawnmower for Lawns Up to 12000 sqm

Mammotion LUBA 4 AWD 12000F is a professional robotic lawnmower designed for automated management of areas up to 12000 sqm, with AWD traction, independent front wheel steering, and management of up to 100 zones.

The navigation system integrates 360° LiDAR, NetRTK, and Quad-Vision AI for precise positioning and detection of over 300 types of obstacles.

The 530 mm floating cutting deck with 3 discs and 18 blades in total ensures high productivity, while the adjustment of the cutting height from 25 to 85 mm, the ability to handle slopes up to 80% (38.6°) and overcome obstacles up to 60 mm make the LUBA 4 AWD 12000F suitable for professional maintenance of large and complex lawns.

Functional Specifications

360° LiDAR and NetRTK Navigation

The Tri-Fusion system combines 360° LiDAR, NetRTK, and Quad-Vision AI for precise and stable navigation, without the need to install a physical perimeter. The LiDAR offers positioning with a declared accuracy of less than 1 cm.

Quad-Vision AI Obstacle Detection

The 4 wide-angle cameras, 2 front and 2 rear, work with LiDAR and AI to detect over 300 categories of obstacles and automatically adjust the trajectory.

AWD Traction

The AWD traction with active steering manages torque on all four wheels to maintain grip on uneven, slippery terrain and on slopes up to 80% (38.6°).

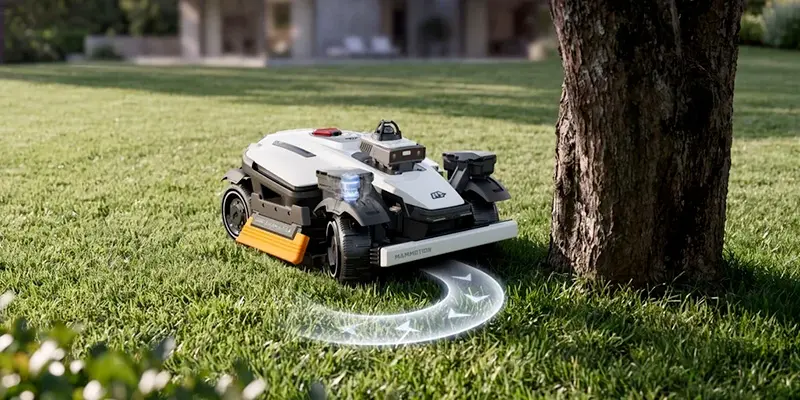

Independent Steering and Bi-directional Driving

The independent front wheel steering and bi-directional driving allow for smooth turns and direction changes without U-turns, reducing wheel drag and lawn marks.

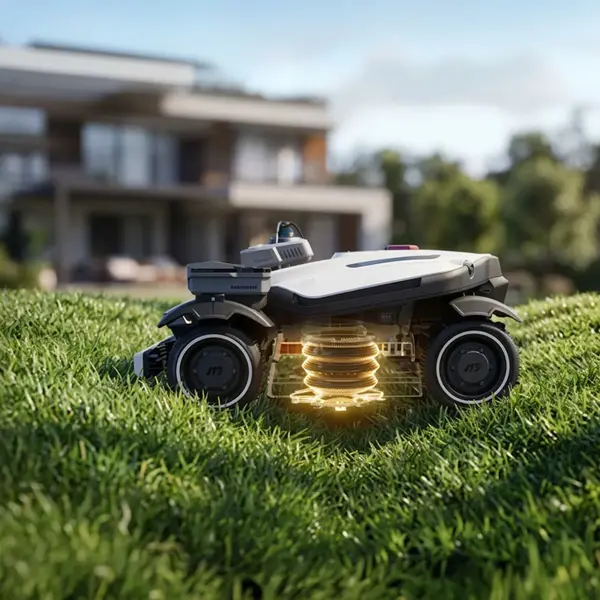

Adaptive Suspension and Floating Deck

The front suspension arm and the floating cutting deck follow ground irregularities, ensuring a uniform cutting height even on uneven surfaces.

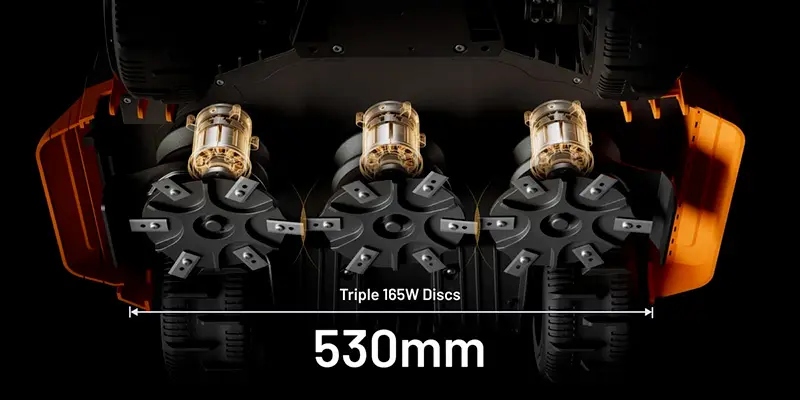

3-Disc Cutting System

The 530 mm deck integrates 3 cutting discs, each with 6 razor blades and a dedicated 165 W motor, for effective cutting even on tall grass.

Cutting Height Adjustment

The cutting height adjustable from 25 to 85 mm allows adapting the work to different lawn maintenance needs.

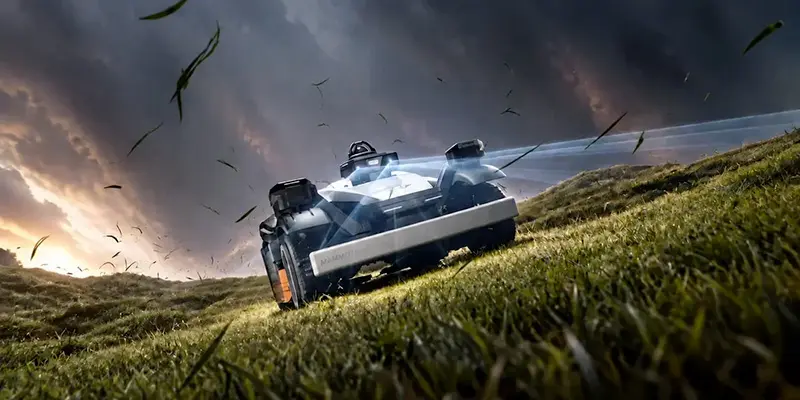

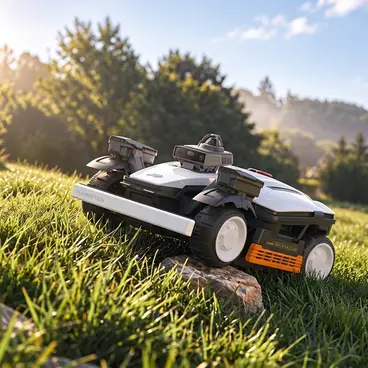

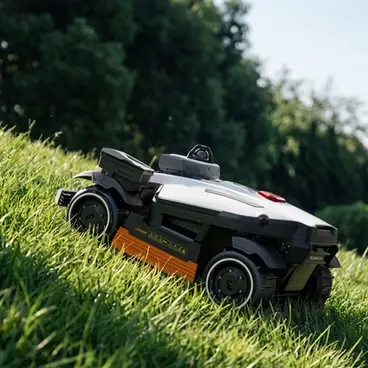

Handling Slopes and Obstacles

The AWD configuration allows tackling slopes up to 80% and overcoming vertical obstacles up to 60 mm, while maintaining high traction capacity.

Adaptive Fast Charging

The 210 W charger and adaptive charging management allow the robot to calculate the necessary energy and automatically resume work after charging.

High-Capacity Battery

The replaceable 21.6 V, 15.3 Ah, and 330.48 Wh battery is designed to support the management of large areas with automatic return to the charging station.

Multi-Zone Management

LUBA 4 AWD 12000F can manage up to 100 zones, allowing for organized automated maintenance of complex lawns divided into different areas.

Connectivity and Remote Control

The system supports offline voice control, video calls, and real-time garden monitoring, as well as connectivity via the Mammotion iNavi Service module.

Safety and Monitoring

The robot integrates systems for rain detection, anti-fall protection, lift and tilt sensors, a physical bumper, a GPS module with geo-fence alarm, and AirTag compatibility.

Watch the video

Features

• Professional AWD robotic lawnmower
• Working area up to 12000 sqm
• Management of up to 100 zones
• Tri-Fusion: 360° LiDAR + NetRTK + Quad-Vision AI
• LiDAR accuracy less than 1 cm
• Detection of over 300 obstacle categories
• AWD traction with active steering
• Maximum slope 80% (38.6°)
• Obstacle clearance up to 60 mm
• 530 mm floating cutting deck
• 3 cutting discs
• 18 razor blades in total
• 3 x 165 W cutting motors
• Cutting height 25-85 mm
• Battery 21.6 V 15.3 Ah 330.48 Wh
• 210 W adaptive fast charger

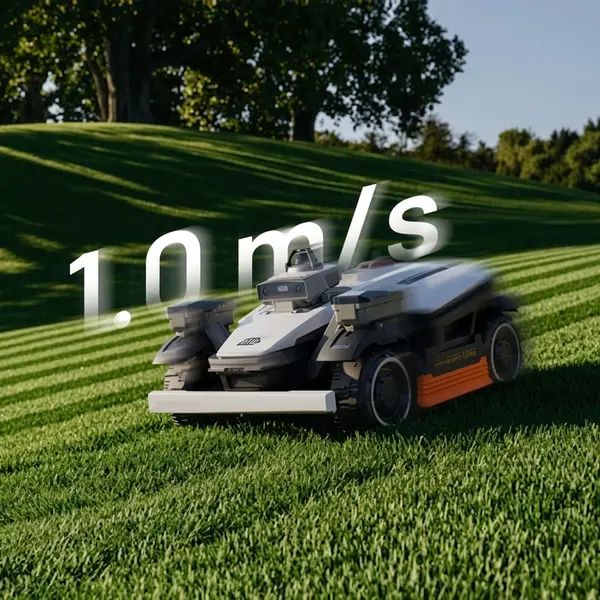

• Cutting speed up to 1.0 m/s
• Noise level 64 dB
• Minimum narrow passage 70 cm
• Offline voice control
• FPV video call and monitoring
• GPS module and geo-alarm
• Rain detection
• Lift and tilt sensors
• AirTag compatibility
• Edge cutting module not compatible
