Mammotion LUBA 4 AWD 6000F
Cordless Lawn Mower Robot 6000 sqm

Mammotion LUBA 4 AWD 6000F - Cordless Lawn Mower Robot for Lawns Up to 6000 sqm

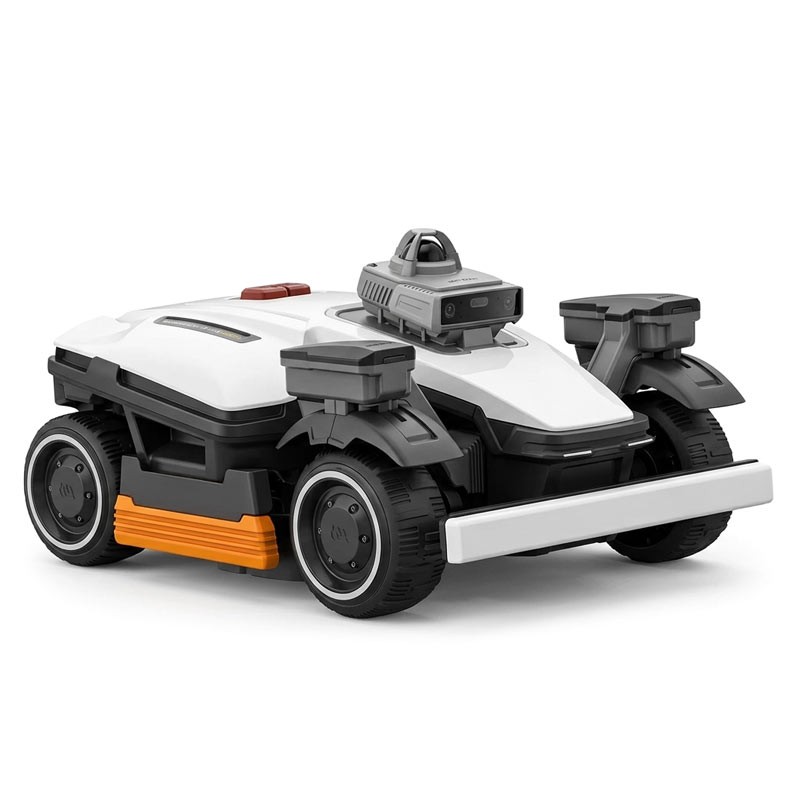

Mammotion LUBA 4 AWD 6000F is a professional lawn mower robot for areas up to 6000 sqm, designed for the automated management of complex lawns and with slopes up to 80% (38.6°).

It integrates 360° LiDAR, NetRTK, and Quad-Vision AI for precise positioning and detection of over 300 categories of obstacles.

The AWD traction with independent front wheel steering, adaptive suspension, and floating cutting deck ensure stability on uneven terrain and reduce lawn marks.

It features two 220 mm cutting discs, 440 mm working width, cutting height adjustable from 25 to 100 mm, and a 21.6 V 15.3 Ah battery (330.48 Wh).

Functional Specifications

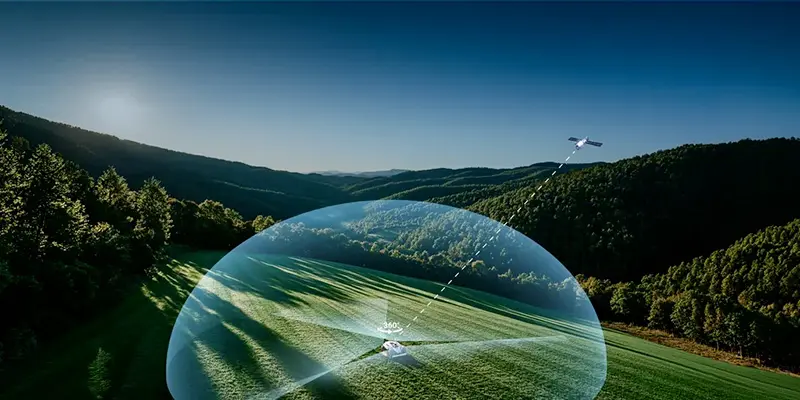

360° LiDAR Positioning and NetRTK

The Tri-Fusion system combines 360° LiDAR, NetRTK, and Quad-Vision AI for precise and stable navigation, without the need to install a dedicated RTK station.

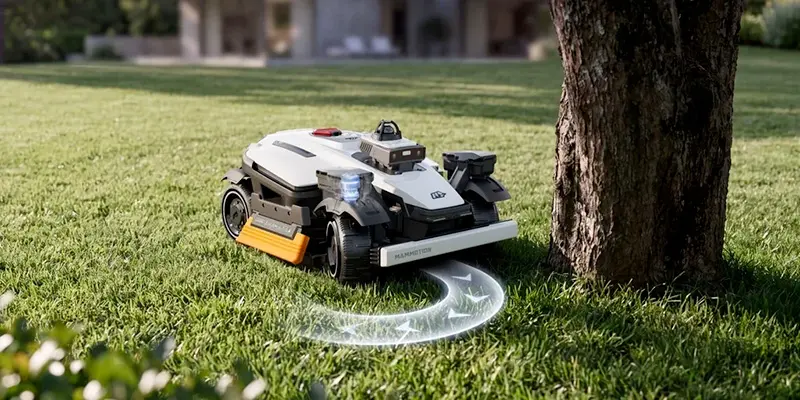

Quad-Vision AI for Obstacle Detection

The 4 wide-angle cameras work with LiDAR and artificial intelligence to detect over 300 categories of obstacles and automatically adjust the trajectory.

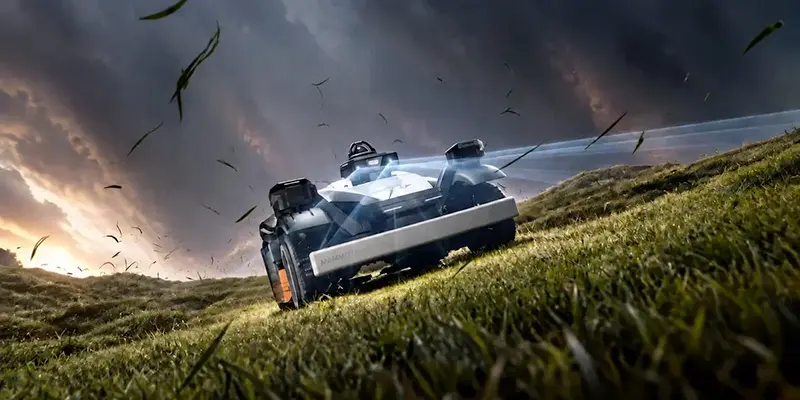

AWD All-Wheel Drive

The AWD system with four-wheel drive and intelligent torque control maintains high traction on slopes, roots, slippery surfaces, and uneven terrain.

Independent Front Wheel Steering

The front wheels feature independent steering, allowing for smooth turns without dragging and limiting scuff marks on the lawn.

Bi-directional Driving

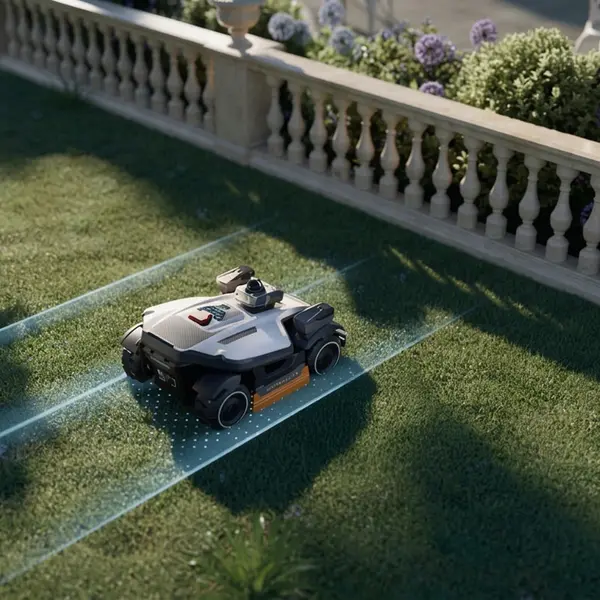

Bi-directional driving allows changing direction without resorting to traditional U-turns, reducing pressure on the turf and wear in maneuvering areas.

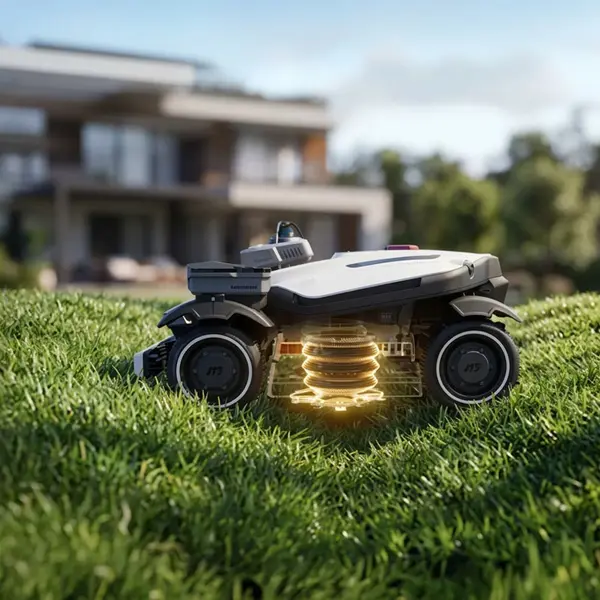

Adaptive Suspension and Floating Deck

The adaptive front suspension system and the floating cutting deck keep the cutting unit close to the ground even on uneven surfaces, promoting a uniform cutting height.

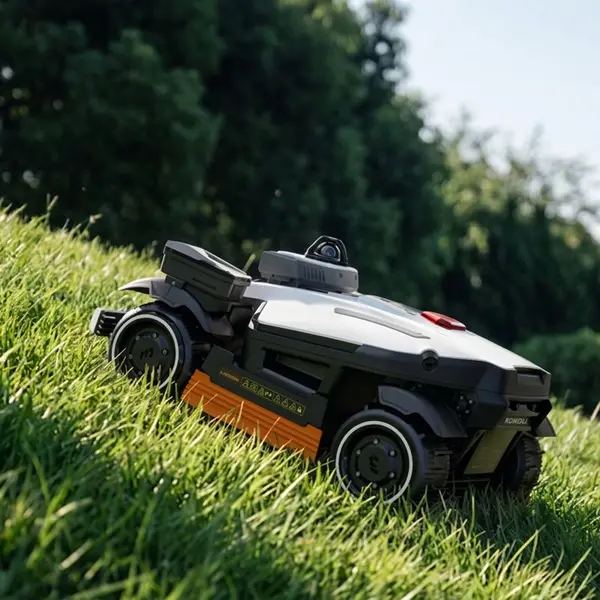

Handles Slopes up to 80%

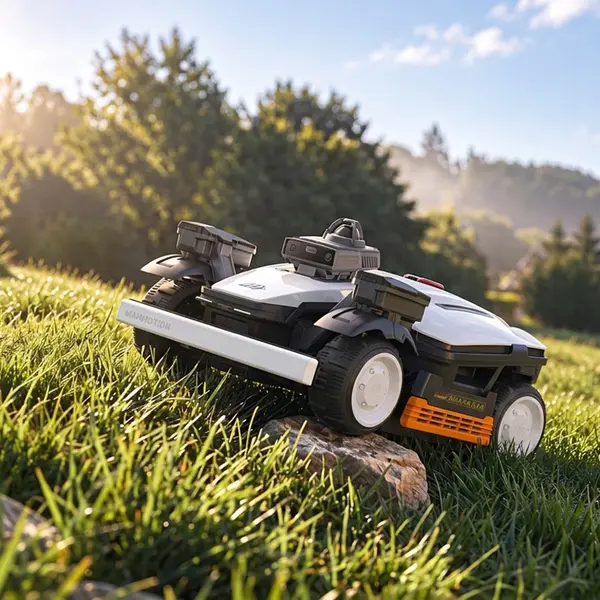

The AWD traction allows tackling slopes up to 80% (38.6°) and overcoming vertical obstacles up to 60 mm.

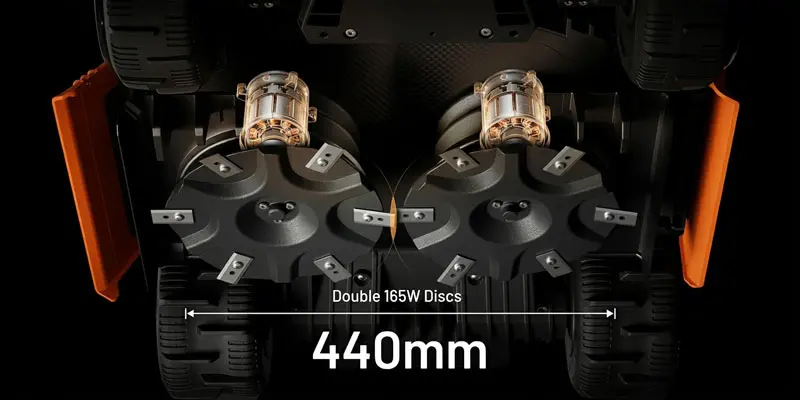

Dual-Disc Cutting System

The cutting unit uses 2 discs with 6 blades each and high-torque motors of 165 W per disc, with a total cutting width of 440 mm.

Adjustable Cutting Height

The cutting height from 25 to 100 mm allows adapting the work to different lawn management needs.

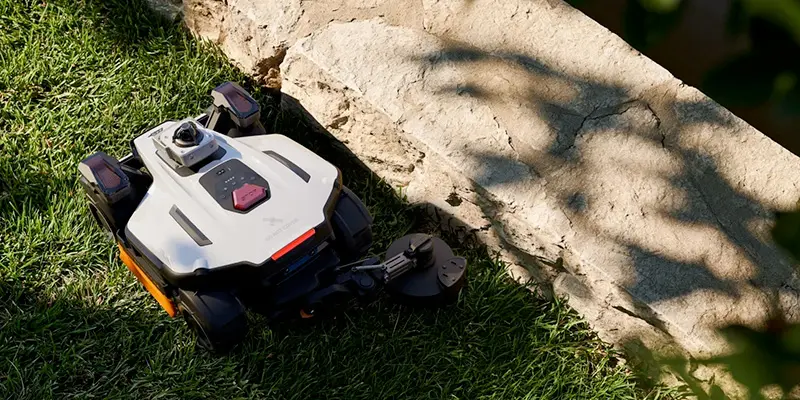

Optional Edge Cutting

The optional automatic edge cutting module, available as a compatible accessory, allows finishing areas along walls, flowerbeds, and other edges difficult to reach with the main deck.

Adaptive Charging

The 210 W adaptive charging system calculates the energy needed to complete the job and allows the robot to automatically resume mowing after charging.

Multi-Zone Management

LUBA 4 AWD 6000F can manage up to 50 work zones, allowing for the organization of complex lawns and separate areas.

Navigation in Narrow Passages

The robot can operate in narrow passages down to 60 cm, a useful feature for gardens with corridors and reduced transit areas.

Connectivity and Remote Control

The platform integrates a 4G module, OTA updates, and garden monitoring, with support for offline voice control and video calls.

Watch the video

Features

• AWD professional lawn mower robot
• Working area up to 6000 sqm
• AWD all-wheel drive
• Maximum slope 80% (38.6°)
• Tri-Fusion LiDAR + NetRTK + Quad-Vision Positioning
• 360° LiDAR with <1 cm accuracy
• 4 Quad-Vision AI cameras
• Detection of over 300 obstacle categories
• 2 cutting discs with 6 blades each
• 165 W cutting motors per disc
• 440 mm cutting width
• 25-100 mm cutting height
• Floating cutting deck
• Independent front wheel steering
• Adaptive suspension
• Obstacle clearance up to 60 mm
• Up to 50 manageable zones
• Minimum passage 60 cm
• 21.6 V 15.3 Ah battery
• 330.48 Wh battery capacity
• 210 W adaptive fast charging
• Noise level 63.5 dB
• Compatible edge cutting module
• 4G module with iNavi service
• Offline voice control
• Video calls
• Real-time garden monitoring
