Segway Navimow Terranox CM120M1
Professional Robotic Lawn Mower
for Commercial Lawns

Segway Navimow Terranox CM120M1 - Professional Robotic Lawn Mower for Commercial Lawns

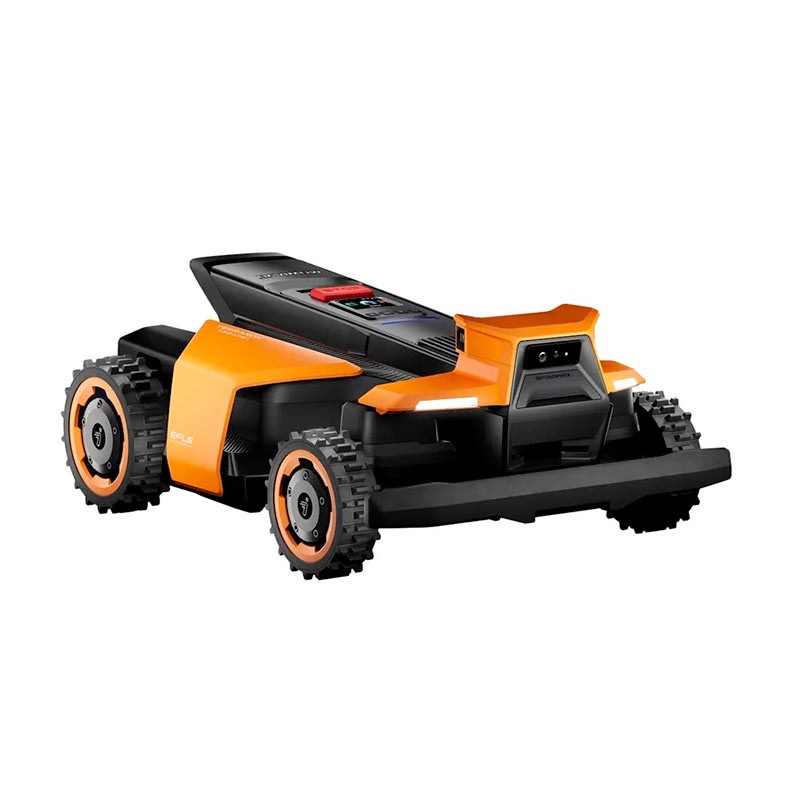

The Segway Navimow Terranox CM120M1 is a professional robotic lawnmower designed for the advanced management of large lawn areas in commercial and industrial settings . Ideal for sports fields , golf courses , urban green spaces and corporate campuses , this automated system integrates advanced navigation technologies and high-performance cutting mechanics to ensure consistent results, dramatically reducing labor and operating costs.

Thanks to the EFLS™ NRTK system with 360° vision , AWD all-wheel drive , and the complete absence of perimeter wires or physical antennas, the Terranox CM120M1 represents a cutting-edge solution for intelligent lawn maintenance. Its combination of centimeter-level accuracy, operating autonomy, and the ability to adapt to complex terrain makes it a benchmark in the professional robotic lawnmower segment.

TECHNICAL SPECIFICATIONS

The Segway Navimow Terranox CM120M1 robotic lawnmower is powered by a high-capacity 20 Ah, 432 Wh battery designed to ensure long, reliable work cycles. A full charge time of 145 minutes is consistent with the maximum continuous operating time, allowing for optimized management of work cycles. The system integrates intelligent automatic charging and advanced connectivity via Bluetooth , Wi-Fi and cellular network , with one year of access to NRTK and Connect+ services included , ensuring constant coverage and high performance in all operating conditions.

In terms of performance, the device is capable of covering up to 12,000 m² of cutting surface , with a yield of approximately 1,500 m² per single charge and a feed speed of up to 0.9 m/s . The cutting system is composed of two discs with 12 blades and an operating width of 430 mm , with automatically adjustable height between 20 and 95 mm . The structure is IP66 certified , guaranteeing resistance to dust and water, while the noise level of 68 dB(A) allows for continuous use even in sensitive contexts.

FUNCTIONAL SPECIFICATIONS

High-precision EFLS™ NRTK intelligent navigation

The EFLS™ NRTK system is the technological heart of the Segway Navimow professional robotic lawnmower , combining a triple-frequency RTK network , 360° panoramic vision , and visual inertial odometry . This architecture enables centimeter-accurate GPS positioning that is stable even in complex or partially obstructed environments, eliminating the need for physical antennas and improving operational flexibility.

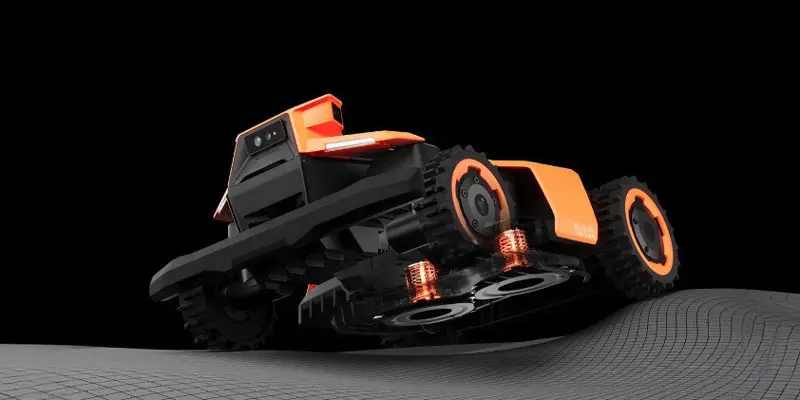

VisionFence system with advanced obstacle recognition

VisionFence technology with a 360° RGB camera and ToF sensors allows the device to identify and avoid over 200 types of obstacles . This intelligent detection system ensures operational safety in dynamic environments, protecting people, animals, and infrastructure during the work cycle.

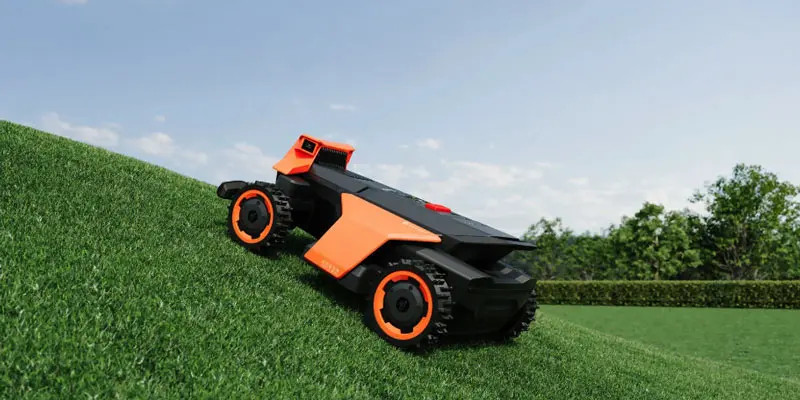

AWD all-wheel drive for complex terrain

The four-wheel drive AWD system with dual independent motors ensures superior performance on uneven surfaces. The Terranox CM120M1 can handle slopes up to 40° (84%) while maintaining stability and traction without compromising turf quality, making it ideal for professional applications in challenging conditions.

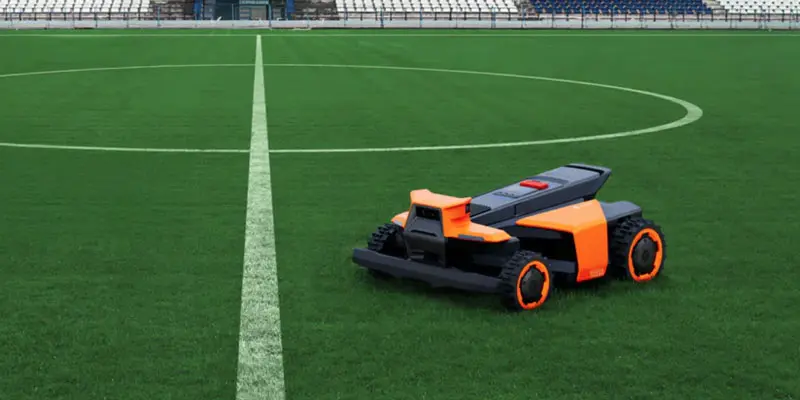

GeoSketch™ automatic mapping without perimeter cables

GeoSketch™ technology enables instant setup through automatic mapping of the work area. The drop-and-go system completely eliminates the need for perimeter cables, allowing multi-zone management of up to 120 areas and intuitive boundary editing directly from the app or web portal.

Professional double disc cutting system

The floating cutting system with double decks and 12 blades ensures a uniform and consistent cutting quality. The anti-clog design and automatic height adjustment allow it to adapt to different grass types and operating conditions, maintaining the high standards typical of professional lawnmowers for large areas.

Advanced NavimowFleet™ remote management

The NavimowFleet™ platform allows centralized control of robot fleets via an app and web portal. A single operator can monitor performance in real time, assign tasks, and modify operational maps, optimizing productivity and reducing management costs.

Quiet and eco-friendly operation

With a noise level of just 68 dB(A) and a total absence of direct emissions, the device is designed for sustainable use in urban and professional environments. This feature makes it particularly suitable for nighttime operations or in noise-sensitive areas.

Advanced security and access control

The system integrates lift alarm , out-of-bounds alarm , PIN code , proximity unlocking and GPS tracking , ensuring a high level of security against unauthorized use and theft, which is essential for large-scale professional applications.

Intelligent adaptation to weather conditions

Thanks to integrated sensors and weather forecast analysis , the professional robot lawnmower is able to automatically interrupt or adapt the work cycle in case of rain, preserving the quality of the cut and the health of the lawn.

Characteristics

• Professional robotic lawnmower without perimeter wire
• Ideal for commercial lawns up to 12,000 m²
• High-efficiency intelligent cutting with automatic mapping
• Cutting height 20-95 mm
• Cutting width 43 cm
• Cutting system with 12 blades on double floating disc
• AWD all-wheel drive with max slope 84% (40°)
• 20 Ah 432 Wh high capacity battery
• Battery life up to 145 minutes with automatic charging
• Mowing speed up to 0.9 m/sec
• EFLS NRTK Localization (RTK + 360° Vision + VIO)
• VisionFence 360° RBG + ToF obstacle detection system
• Intelligent recognition of over 200 objects
• IP66 protection
• Silent Operation 68 dB(A) zero emissions
• Fleet management with NavimowFleet via App and Web
• Bluetooth, Wi-Fi and cellular connectivity (1 year included)
• Multi-zone management up to 120 areas
• Advanced security with GPS, alarms and PIN code
