Mammotion Spino E1
Robot for Cleaning Pools 150 m2

Mammotion Spino E1 - Battery-Powered Pool Cleaning Robot for 150m2 Pools

The Mammotion Spino E1 is a professional pool cleaning robot designed to offer industrial-grade performance in advanced residential and semi-professional settings. Designed for in-ground and above-ground pools up to 150 m² , it integrates a triple brushless motor system and a maximum suction power of 5800 GPH , ensuring complete removal of fine and coarse debris from the floor, walls, and waterline in a single operation.

Equipped with SmartArc™ intelligent path planning , up to 210 minutes of battery life and IPX8 protection , the Spino E1 has been developed to ensure systematic coverage and consistent performance even on complex surfaces such as concrete , vinyl , fiberglass , tile and pebble tec . The combination of advanced navigation with 17 sensors and double high-grip rubber tracks allows for effective wall climbing and deep cleaning without leaving residues behind.

TECHNICAL SPECIFICATIONS

The Mammotion Spino E1 pool robot is powered by a 6000 mAh lithium battery , designed to ensure continuous work cycles of up to 210 minutes , with a full charging time of approximately 3 hours . The system integrates double battery protection for greater operational safety and long-term stability. The IPX8 certified waterproofing allows reliable operation when submerged up to 3 meters deep , while the resistance to salt water up to 5000 ppm expands the range of application even in pools treated with salt systems.

From a performance standpoint, the device is equipped with 3 high-efficiency brushless motors , tested for over 2,500 hours of life , capable of developing a suction power of up to 5,800 GPH . The filtration system is based on a 180-micron filter basket , positioned with top access for quick and direct maintenance. The 289.6 mm roller brush , combined with oversized 40 mm Caterpillar tracks , guarantees stable traction and constant pressure on the surfaces, optimizing the removal of algae, sand and sediment even in rectangular, round, kidney-shaped or free-form pools.

FUNCTIONAL SPECIFICATIONS

SmartArc™ intelligent cleaning for total coverage

The SmartArc™ system is the technological heart of the Mammotion Spino E1 . Thanks to 17 high-precision sensors and advanced planning algorithms, the robot analyzes the pool's morphology and optimizes cleaning paths by automatically adjusting its direction after each cycle. This intelligent management eliminates unnecessary overlaps and uncovered areas, ensuring complete pool coverage with maximum energy efficiency.

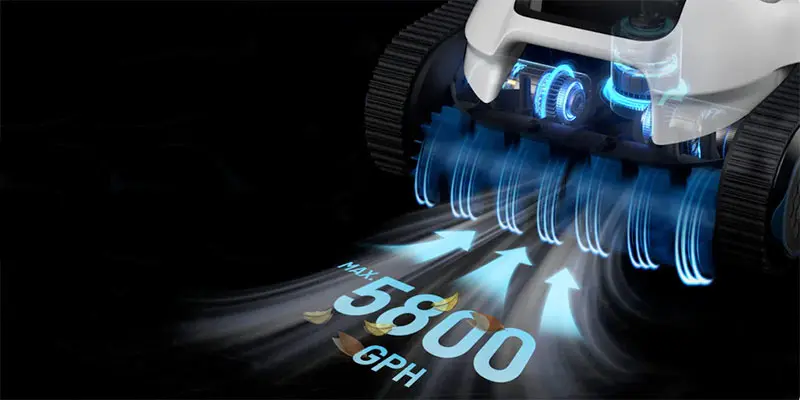

High-performance triple brushless motor

The brushless 3-motor system ensures greater efficiency, less mechanical friction , and a longer operating life than traditional brushed motors. The 5800 GPH suction power captures debris of various sizes without performance drops, providing deep and consistent cleaning even in very dirty conditions.

Complete cleaning of bottom, walls and waterline

The Spino E1 is designed to operate on the bottom , walls , and waterline in a single pass. The high-grip dual rubber tracks allow for stable climbing of vertical surfaces, while the traction system ensures traction even on smooth surfaces like vinyl and fiberglass. The automatic waterline parking feature facilitates recovery at the end of the cycle, eliminating the need for manual immersion.

5 professional cleaning modes

The pool robot offers 5 operating modes selectable via one-touch start or control via the Mammotion app . Floor mode allows for targeted cleaning for up to 210 minutes, Wall mode focuses on vertical surfaces with up to 180 minutes of battery life, All mode performs a combined wall-floor sequence optimized based on battery level, Eco mode performs low-consumption scheduled cycles every two days, while Maximum mode activates intensive suction for extraordinary jobs.

180 micron rapid filtration system

The rapid water filtration system separates debris in about 5 seconds , improving water quality throughout the work cycle. The 180 µm upper filter basket is removable and washable with a simple rinse, reducing maintenance time and ensuring operational continuity.

Anti-tangle design and ultra-strong construction

The tangle-free design and quick water release improve handling during retrieval. The UV-resistant construction, combined with IPX8 certification and advanced battery protection , makes the professional pool cleaner suitable for intensive and continuous use. OTA updates and intelligent app control complete a technological platform designed for professionals who demand reliability, precision, and guaranteed optimal cleaning results.

Characteristics

• Professional pool cleaning robot
• Battery operated 6000 mAh
• Battery life up to 210 min
• Triple brushless motor
• Maximum suction power 5800 GPH
• Cleaning the bottom, walls and waterline in a single cycle
• SmartArc™ intelligent navigation system
• Pool coverage up to 150 m2
• 180 micron filter basket with top access
• 289.6mm high grip roller brush
• 40mm enlarged Caterpillar tracks
• Automatic parking at the water line
• IPX8 waterproof protection
• Salt water resistance up to 5000 ppm
• Intelligent control via Mammotion App
• Charging time approximately 3 hours
• Operating depth from 0.6 to 3 m

WARRANTY

Have you purchased your Mammotion robotic lawnmower? You have 60 days from the date of purchase to register your Mammotion robotic lawnmower and purchase the 1-year extended warranty .
Follow the instructions below to successfully complete your registration:

1. Visit: mammotion.com/pages/extended-warranty
2. Select the product and model purchased
3. Click "continue" and follow the steps to complete registration and get your extended warranty.

Standard Equipment
