Lavor Comfort XS-R1 UP
Ride-On Professional Scrubber Dryer
4350÷5000 sqm/h
24V Battery
Front wheel drive
Warranty 2
years
Shipped on Pallet
Lavor Comfort XS-R1 UP - Professional Ride-On Scrubber Dryer
Lavor Comfort XS-R1 UP is a 24V battery-powered professional ride-on floor scrubber dryer, designed for cleaning and drying large surfaces up to approximately 4000 sqm.
The two brushes ensure a constant pressure of 50 kg, while the 110 L detergent solution tank and 130 L recovery tank reduce operational downtime. Compact, ergonomic, and maneuverable, it is suitable for cleaning companies, industries, warehouses, shopping centers, and large areas.
Charger included.
Battery to be chosen and purchased separately.
Functional Specifications
Professional two-brush washing
The two brushes with 50 kg pressure and 2 x 400 W motors ensure effective washing even with heavy dirt and surfaces requiring deep cleaning.
High productivity
XS-R1 75 UP reaches 4350 sqm/h, while the XS-R1 85 UP reaches 5000 sqm/h, ensuring high performance in cleaning large areas.
High-capacity tanks
The 110 L detergent solution tank and 130 L recovery tank allow for longer working periods, minimizing interruptions for refilling and emptying.
Optimized detergent dispensing
The detergent solution solenoid valve controls dispensing in conjunction with mechanical dosing, preventing waste. Detergent is dispensed only when the brushes are rotating.
High-efficiency suction
The suction system achieves a depression of 1300 mmH2O, ensuring effective water recovery and rapid floor drying.
Automatic squeegee
The squeegee is automatically lifted and features a reverse safety system to protect it during maneuvers.
Self-leveling brush head
The self-leveling brush head maintains uniform contact with the surface, optimizing washing effectiveness and pressure distribution.
Front wheel drive
The 600 W front motor wheel, small turning radius, and compact dimensions make the machine agile even in tight spaces.
Battery protection
The charge indicator shows the remaining battery life, and the system protects the batteries from deep discharge, helping to preserve their lifespan and efficiency.
On-board charger
The on-board charger allows the machine to be recharged directly in the operating areas, without necessarily having to return it to the storage point.
Tilting recovery tank
The tilting recovery tank, combined with the large discharge hose, facilitates emptying, cleaning, and routine maintenance operations.
Comfort and digital control
The digital control panel includes hour meter, battery indicator, speed adjustment, direction indicator, empty tank warning light, horn, and suction control with delayed shutdown.
Features
- Professional ride-on floor scrubber dryer
- 24V Battery
- Two brushes
- Working width from 750 to 850 mm
- Hourly output up to 5000 sqm/h
- 110 L detergent tank
- 130 L recovery tank
- 50 kg brush pressure
- 2 x 400 W brush motors
- 600 W front motor wheel
- 1300 mmH2O depression
- On-board charger
- Solenoid valve for detergent
- Self-leveling brush head
- Automatic lifting of brushes and squeegee
- Anti-foam system
- Charge indicator and battery protection
- Digital hour meter
- Compact dimensions
- Maximum gradient 13% unloaded / 10% fully loaded
Standard Equipment
- PP Brush Ø 360 mm 14" for mod. Comfort XS-R1 75 UP - 2x code 10002-08108
- PP Brush Ø 430 mm 17" for mod. Comfort XS-R1 85 UP - 2x code 10002-08138
- Front/rear squeegee blade 3 mm/4 mm for mod. Comfort XS-R1 75 UP - code 00005-02240/00005-02237
- Front/rear squeegee blade 3 mm/4 mm for mod. Comfort XS-R1 85 UP - code 00005-02270/00005-02269
- On-board charger 24V 20A - code 00056-00058
Optional Equipment

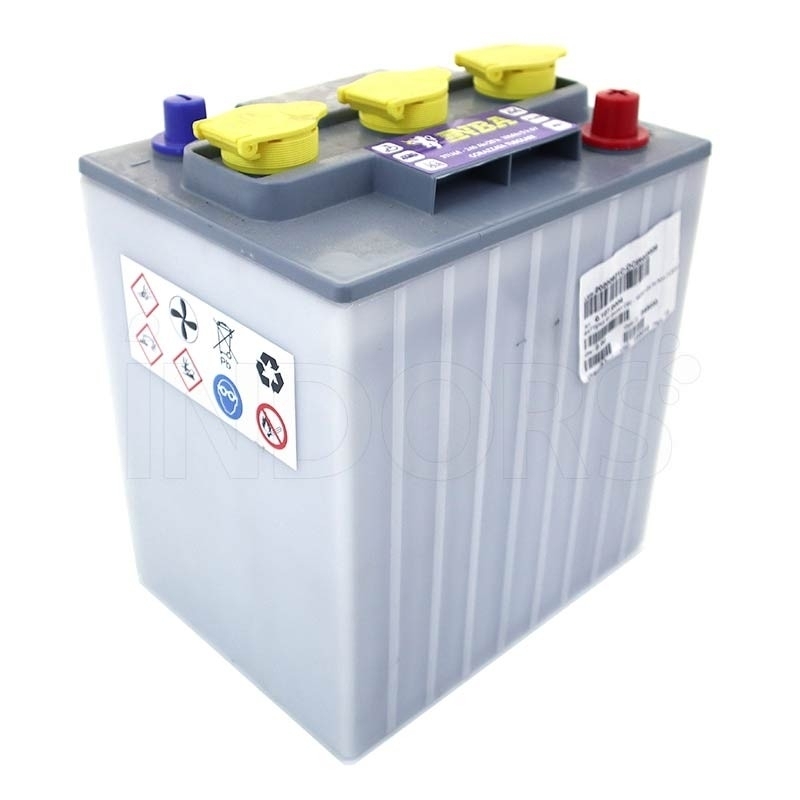

- Tubular Lead-acid Battery 6V 180Ah C5 - 4x code 00055-00013
- GEL Battery 6 MFP 180 6V 180Ah C5 - 4x code 00055-00142
- Battery charger 24V 30A 115-240/50-60 - code 00056-00067
- Battery connection cable 00056-00067 SB50-SB80 - code 10002-08044
- Front polyurethane blade L.925 TH.3 Sh.40 code 00005-02253 / Rear polyurethane blade L.1015 TH.4 Sh.40 - code 00005-02252 / Front polyurethane blade L.1027 TH.3 code 00005-02273 / Rear polyurethane blade L.1150 TH.4 - code 00005-02274
- Tynex Brush Ø 360 mm 14" - 2x code 10002-08109 / PP Brush 0.3 Ø 360 mm 14" - 2x code 10002-08110 / PES Brush Ø 360 mm 14" - 2x code 10002-08111 / Tynex Brush Ø 430 mm 17" - 2x code 10002-08118 / PP Brush 0.3 Ø 430 mm 17" - 2x code 10002-08119 / PES Brush Ø 430 mm 17" - 2x code 10002-08120
- Kit 5 beige abrasive discs Ø 380 mm 15" - code 10001-09944 / Kit 5 green abrasive discs Ø 380 mm 15" - code 10001-09945 / Kit 5 black abrasive discs Ø 380 mm 15" - code 10001-09942 / Kit 5 beige abrasive discs Ø 430 mm 17" - code 10001-09913 / Kit 5 green abrasive discs Ø 430 mm 17" - code 10001-09918 / Kit 5 black abrasive discs Ø 430 mm 1517 - code 10001-09923
- EWU pad holder Ø 380 mm 15" - 2x code 10002-08137 / EWU pad holder Ø 430 mm 17" - 2x code 10002-08121
Technical Data
| Model | Comfort XS-R1 75 UP | Comfort XS-R1 85 UP |
| Working Width | 75 cm | 85 cm |
| Drying Width | 90 cm | 100 cm |
| Hourly Output | 4350 sqm/h | 5000 sqm/h |
| Solution Tank | 110 L | 110 L |
| Recovery Tank | 155 L | 155 L |
| Drive Type | Front motor wheel | Front motor wheel |
| Motor RPM | 170 RPM | 170 RPM |
| Brush Pressure | 50 kg | 50 kg |
| Brush Motor | 2 x 400 W | 2 x 400 W |
| Depression | 1300 mm H2O | 1300 mm H2O |
| Suction Motor | 400 W | 400 W |
| Max. Gradient | 13% / 10% | 13% / 10% |
| Charger | Included | Included |
| Battery | Not Included - see Optional | Not Included - see Optional |
| Dimensions | 146 x 81 x 138 cm | 146 x 87 x 138 cm |
| Weight | 189 kg | 195 kg |
