ABAC DRY 20 ÷ 130
Compressed Air Dryer

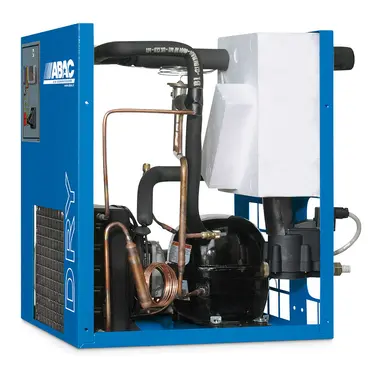

ABAC DRY 20 ÷ 130 - Compressed Air Dryer

Description ABAC DRY 20 ÷ 130

ABAC DRY compressed air dryers use a refrigerant gas to cool the compressed air, thus managing to condense the water in the air to eliminate it. This refrigeration technology is the most used in over 95% of industrial applications .

The ABAC DRY series allows to reach a pressure dew point of 5 ° C. Refrigeration dryers are commonly used in general pneumatic and industrial applications such as engineering, steel, paper, tanneries, garages).

The ABAC DRY range of dryers offers reliable components in a simple and space-saving vertical arrangement .

Main Features ABAC DRY dryer

• INTELLIGENT AND SILENT CONDENSATE DISCHARGE
• EASY READING OF DEW POINT WITH DIGITAL DISPLAY
• MAINTENANCE OF CONSTANT EFFICIENCY
• For general pneumatic and industrial applications
• Refrigeration dryer
• Simple installation and easy use
• Easy access for quick and cost-effective maintenance
• greater durability and efficiency of the tools and equipment used
• Efficient cooling system
• Transport flexibility
• Small footprint
• Stable dew point
• Elimination of water / dust produced during the compression process
• Clean compressed air network protected against rust
• Reduction of losses thanks to clean compressed air
• Longer life of operating tools (machinery and equipment)
• Safe use and longer life of pneumatic tools
• Reduced costs for maintenance of the compressed air network
• Improvement of the quality of the final product
• Stable control of operating costs
• Greater productivity
• Impossible to freeze the pipes of the compressed air network

Components Compressed Air Dryer ABAC DRY

1. Refrigerant compressor driven by an electric motor, cooled by the refrigerant fluid itself and protected against thermal overload.
2. Air-cooled refrigerant condenser with large surface area for high heat exchange.
3. IP54 motor fan for condenser cooling air flow
4. Air-refrigerant evaporator with high heat exchange and low losses
5. High efficiency condensate separator q
6. Air-to-air heat exchanger with high thermal exchange and low pressure drops
7. Coolant separator
8. Maximum pressure switch
9. Service valve
10. Fan control pressure switch
11. The hot gas bypass valve regulates the refrigerant capacity under all load conditions avoiding the formation of ice inside the system
12. Coolant filter
13. Capillary tube
14. Service valve
15. Tools panel
16. Dirt collector filter to protect the system
17. Automatic ecological drain of condensate, able to avoid the involuntary discharge of compressed air

Limit Conditions of Use of ABAC DRY compressed air dryers

• Operating pressure: 16 bar
• Operating temperature: 55 ° C
• Ambient temperature min / max: + 5 ° C; + 45 ° C

Why use an Abac dryer

For greater durability and efficiency of the tools and equipment used with air compressors , Abac has developed a series of solutions to transform compressed air from the point where it is generated to the point where it is used into high quality air . Abac produces refrigerated compressed air dryers that guarantee a high quality of the air used , thus avoiding potentially costly production interruptions , increasing the efficiency and duration of the equipment used in production. Abac compressed air dryers therefore represent a highly recommended investment for any kind of business .

A compressor removes the moisture and contaminants present in the intake air which, during the compression process, join the oil used in the compressor. All these impurities can cause wear and corrosion of downstream equipment with the risk of potentially costly production interruptions and a reduction in the efficiency and duration of the equipment used. To limit these negative effects, Abac has developed a complete range of compressed air dryers that ensure quality air and improve the efficiency, productivity and life of the tools and equipment used .
