MTM Quick Coupling
Stainless Steel Ball High Pressure
MPN: 1190020100+1190040100
Ball Quick Coupling High Pressure
in Stainless Steel
€35.00
€28.69 tax excl.

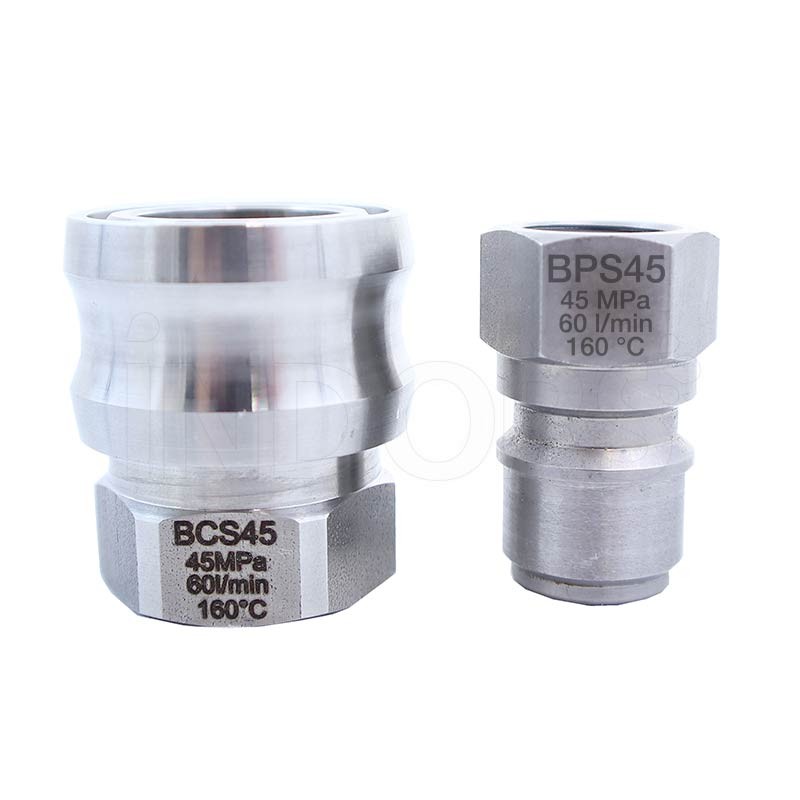

MTM Quick Coupling - Stainless Steel Ball High Pressure
The pair of male and female couplings is supplied.
BCS45 Ball Quick Coupling:
- Inlet Coupling: G 3/8 F
- Outlet Coupling: BPS45
- Material: Stainless Steel
- Weight: 165 gr
- Nominal Pressure: 400 bar
- Admissible Pressure: 450 bar
- Nominal Flow: 60 L/min
- Nominal Temperature: 160 °C
BPS45 Quick Connector:
- Inlet Coupling: BCS45
- Outlet Coupling: G 3/8 F
- Material: Hardened Stainless Steel
- Weight: 60 gr
- Nominal Pressure: 400 bar
- Admissible Pressure: 450 bar
- Nominal Flow: 60 L/min
- Nominal Temperature: 160 °C
Technical Data
| 1190020100 | 1190040100 | |
| Inlet Coupling | G 3/8 F | BCS45 |
| Outlet Coupling | BPS45 | G 3/8 F |
| Material | Stainless Steel | Hardened Stainless Steel |
| Nominal Pressure | 400 bar | 400 bar |
| Admissible Pressure | 450 bar | 450 bar |
| Nominal Flow | 60 L/min | 60 L/min |
| Nominal Temperature | 160 °C | 160 °C |
| Weight | 165 gr | 60 gr |
