Speroni WX 500-A
High Flow Centrifugal Electric Pump
Open Stainless Steel Impeller
400V - 3÷4HP
1100÷1400 L/min - Head 5.5÷118 m
Ø 2'' 1/2 - 2'' 1/2
€474.00
€388.52 tax excl.

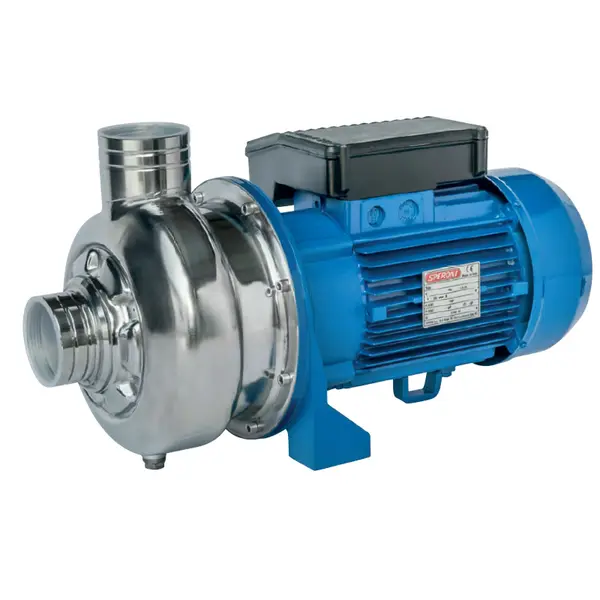

Speroni WX 500-A - Three-phase centrifugal electric pump with open stainless steel impeller
The Speroni WX 500-A three-phase electric pump is a pump suitable for a wide range of applications in the industrial and food sectors. Designed to meet the needs of moving residual suspended solids in food production, this Speroni WX 500-A electric pump is an excellent choice for ensuring cleanliness and hygiene in various contexts.
WX 500-A has the ability to move suspended solids making it ideal for cleaning vegetables, meat and fish , ensuring unwanted residues are removed efficiently and safely.
Furthermore, the Speroni electric pump can be used for cleaning metal parts , bottles , jars and glass , ensuring effective removal of any contaminants.
Not only limited to the handling of solids, the WX 500-A pump is equally effective in the treatment of dirty liquids . Speroni WX-A can also be used to handle slightly corrosive liquids : this electric pump is suitable for industrial and process liquid circulation systems .
Used in circulation and involvement systems , it guarantees complete and uniform cleaning, regardless of the nature of the contaminated liquid.
Thanks to its robustness and resistance to corrosion , the Speroni WX-A pump is particularly suitable for use in industrial washing systems and community dishwashers.
Its reliability and durability make it a preferred choice in environments where hygiene and cleanliness are of primary importance.
Limits of use
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max liquid temperature: 90°C (for other uses)
- Ambient temperature up to 40°C
- Manometric suction height up to 3 m
- Continuous service
- Minimum efficiency index (BEP) MEI ≥ 0.4
Motor
- Single phase 230V-50Hz
- Three-phase 230/400V-50Hz
- 2-pole induction electric motor (n = 2850 min-1)
- Insulation Class F
- IP 55 protection
Protection
- Pump body: AISI 304 stainless steel
- Engine mount: Aluminum
- Open Impeller: AISI 304 Stainless Steel
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seals Silicon/Graphite/NBR
Model Specifications
Selectable from drop-down menu:
- WX 500-A/2,2 - cod.101069220
- WX 500-A/3 - cod.101069230
Hydraulic Curve
Product Dimensions
Technical Data
| Model | WX 500-A/2,2 IE3 | WX 500-A/3 IE3 |
| Code | 101069223 | 101069233 |
| Power Supply | 400V | 400V |
| Nominal Power | 3 HP - 2.2 kW | 4 HP - 3 kW |
| Power Absorbed | 3kW | 4 kW |
| Suction Diameter | 2''1/2 | 2''1/2 |
| Delivery Diameter | 2''1/2 | 2''1/2 |
| Prevalence | from 5.5 to 15 m | from 6 to 18 m |
| Liquid Flow Rate | 100÷1100 L/min | 100÷1400 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Dimensions | 42.6 x 26 x 19.3 cm | 42.6 x 26 x 19.3 cm |
| Weight | 19.6 kg | 23.4 kg |
