Speroni WX 300-A
Three-phase centrifugal electric pump
Open stainless steel impeller
€368.00
€301.64 tax excl.
Warranty 2 years
14 days to change your mind

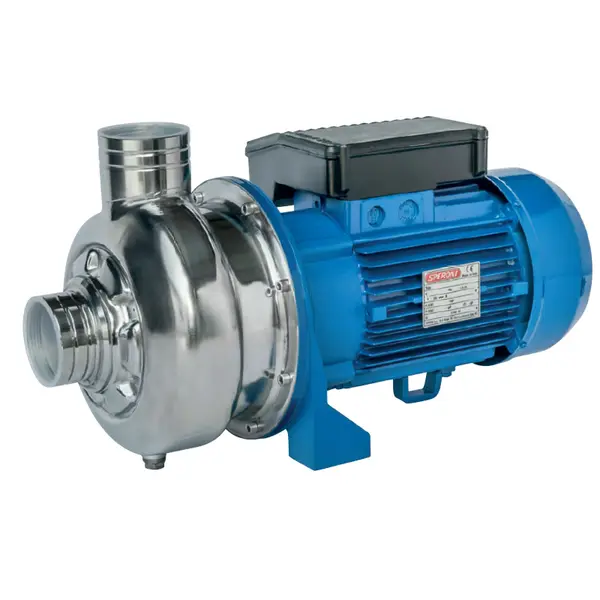

Speroni WX 300-A - Centrifugal Electric Pump with Open Stainless Steel Impeller
The Speroni WX-A three-phase electric pump is a pump suitable for a wide range of applications in the industrial and food sectors. Designed to meet the needs of moving residual suspended solids in food production, this Speroni WX 300-A electric pump is an excellent choice to ensure cleanliness and hygiene in various contexts.
WX-A has the ability to dislodge suspended solids making it ideal for cleaning vegetables, meat and fish , ensuring unwanted residues are removed efficiently and safely.
Furthermore, the electric pump can be used to clean metal parts , bottles , jars and glass , ensuring effective removal of any contaminants.
Not only limited to the handling of solids, the WX-A pump is equally effective in the treatment of dirty liquids . Speroni WX-A can also be used to handle slightly corrosive liquids : this electric pump is suitable for industrial and process liquid circulation systems .
Used in circulation and involvement systems , it guarantees complete and uniform cleaning, regardless of the nature of the contaminated liquid.
Thanks to its robustness and resistance to corrosion , the Speroni WX-A pump is particularly suitable for use in industrial washing systems and community dishwashers.
Its reliability and durability make it a preferred choice in environments where hygiene and cleanliness are of primary importance.
Usage limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max liquid temperature: 90°C (for other uses)
- Ambient temperature up to 40°C
- Manometric suction height up to 3 m
- Continuous service
- Minimum efficiency index (BEP) MEI ≥ 0.4
Motor
- Single phase 230V-50Hz
- Three-phase 230/400V-50Hz IE3 version
- 2-pole induction electric motor (n = 2850 min-1)
- Insulation Class F
- IP 55 protection
Protection
- Pump body: AISI 304 stainless steel
- Engine mount: Aluminum
- Open Impeller: AISI 304 Stainless Steel
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seals Silicon/Graphite/NBR
Model Specifications
Selectable from drop-down menu:
- WX 300-A/1,1 - cod.101069200
- WX 300-A/1.5 IE3 - code 101069213

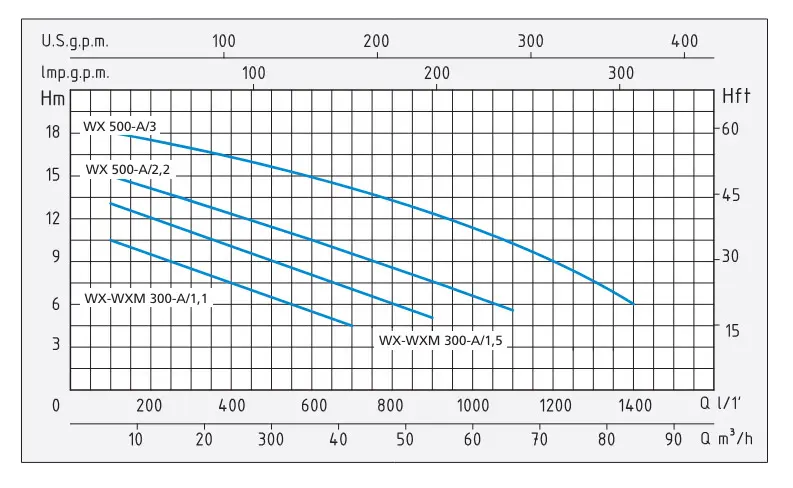

Hydraulic Curve

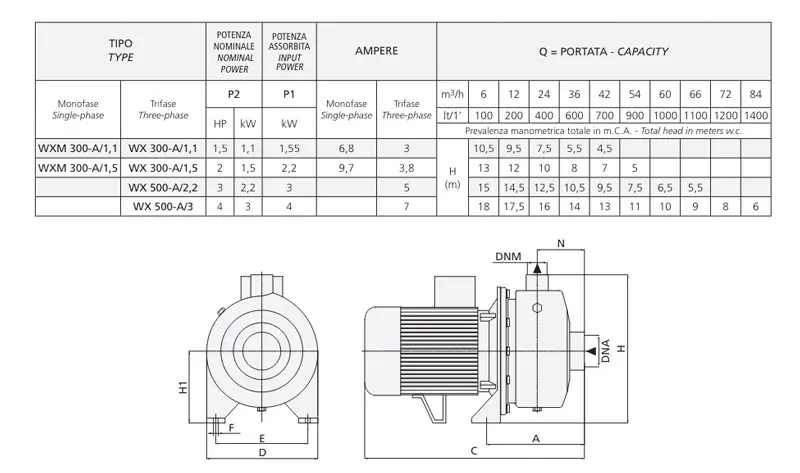

Product Dimensions
Technical Data
| Model | WX 300-A/1,1 | WX 300-A/1,5 IE3 |
| Code | 101069200 | 101069213 |
| Power Supply | 400V | 400V |
| Nominal Power | 1.5 HP - 1.1 kW | 2 HP - 1.5 kW |
| Power Absorbed | 1.5 kW | 2.2 kW |
| Suction Diameter | 2'' | 2'' |
| Delivery Diameter | 2'' | 2'' |
| Prevalence | from 4.5 to 10.5 m | from 5 to 13 m |
| Liquid Flow Rate | 100÷700 L/min | 100÷900 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Dimensions | 38.2 x 26 x 19.3 cm | 38.2 x 26 x 19.3 cm |
| Weight | 15.3 kg | 16.3 kg |
Technical Data
| Model | WX 300-A/1,1 | WX 300-A/1,5 IE3 |
| Code | 101069200 | 101069213 |
| Power Supply | 400V | 400V |
| Nominal Power | 1.5 HP - 1.1 kW | 2 HP - 1.5 kW |
| Power Absorbed | 1.5 kW | 2.2 kW |
| Suction Diameter | 2'' | 2'' |
| Delivery Diameter | 2'' | 2'' |
| Prevalence | from 4.5 to 10.5 m | from 5 to 13 m |
| Liquid Flow Rate | 100÷700 L/min | 100÷900 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Dimensions | 38.2 x 26 x 19.3 cm | 38.2 x 26 x 19.3 cm |
| Weight | 15.3 kg | 16.3 kg |
