Speroni RV 80
4 HP three-phase electric pump

Speroni RV 80 - Three-phase Multistage Centrifugal Vertical Electric Pump

The Speroni RV 80 multistage centrifugal vertical electric pump is an excellent solution for various pumping needs, thanks to its ability to generate considerable pressure and, at the same time, a high water flow rate , all with reduced energy consumption. Speroni RV 80 is an electric pump that represents a versatile choice, suitable for both civil and industrial applications in a wide range of sectors.

Speroni RV centrifugal multistage electric pumps are versatile electric pumps , suitable for a variety of uses, including washing systems , irrigation , agriculture , sports facilities and domestic use . Their flexibility also makes them perfect for application in pressurization systems , where it is essential to ensure effective water distribution.

Limitations of use

• Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
• Max liquid temperature: 35°C (for other uses)
• Ambient temperature up to 40°C
• Manometric suction height up to 7 m
• Continuous service
• Minimum efficiency index (BEP) MEI ≥ 0.4

Motor

• Single phase 230V-50Hz
• Three-phase 230/400V-50Hz
• 2-pole induction electric motor (n = 2850 min-1)
• Class F insulation
• IP 55 protection

Protection

• Pump body: Cast iron
• Engine support: Cast iron
• Impeller: Noryl
• Diffuser: Noryl
• Pump sleeve AISI 304 stainless steel
• Drive shaft AISI 304 stainless steel
• Silicon/Silicon/NBR mechanical seals

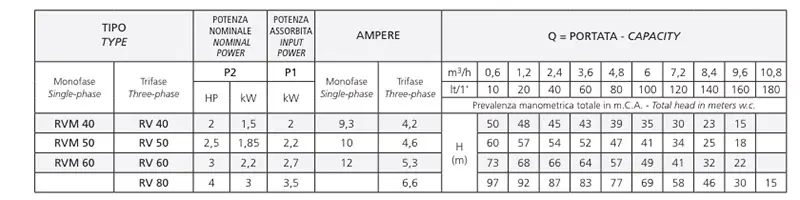

RV 80 model specifications

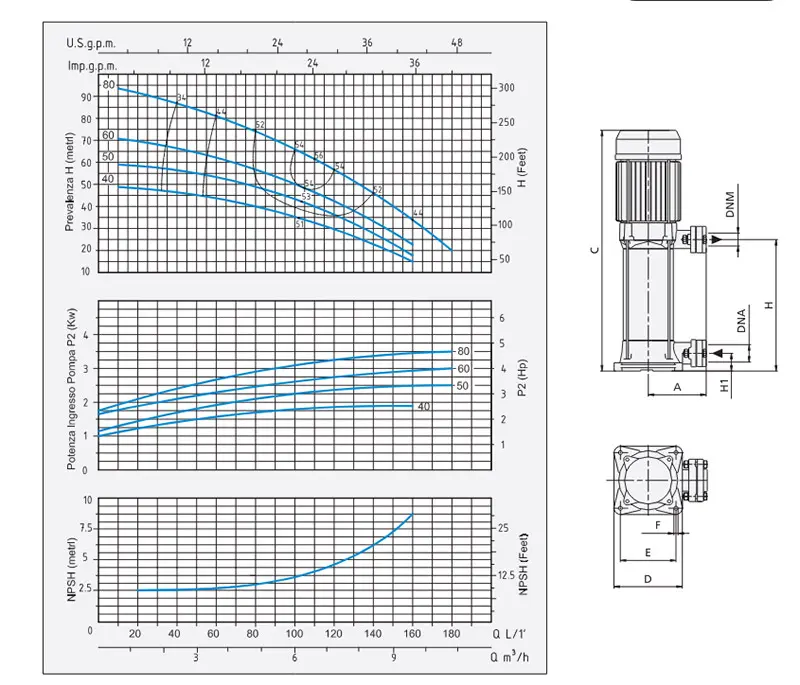

Hydraulic curve

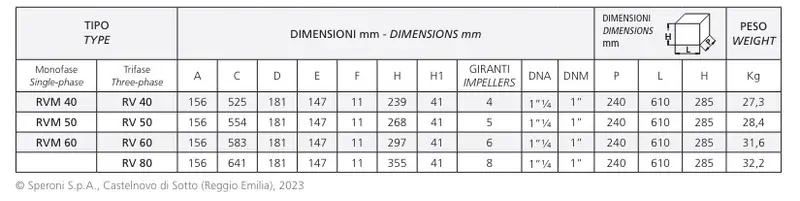

Product Dimensions
