Speroni CX 32
Monobloc Centrifugal Electric Pumps

Speroni CX 32 - Stainless steel monobloc centrifugal electric pumps

Speroni CX 32 are monobloc and single-impeller centrifugal electric pumps from the original Speroni CX range completely in STAINLESS STEEL. The electric pumps of the Speroni CX range are suitable for pumping clean water and other liquids that are not chemically or mechanically aggressive. Their use is ideal in the civil, agricultural, industrial or plant engineering fields in general.

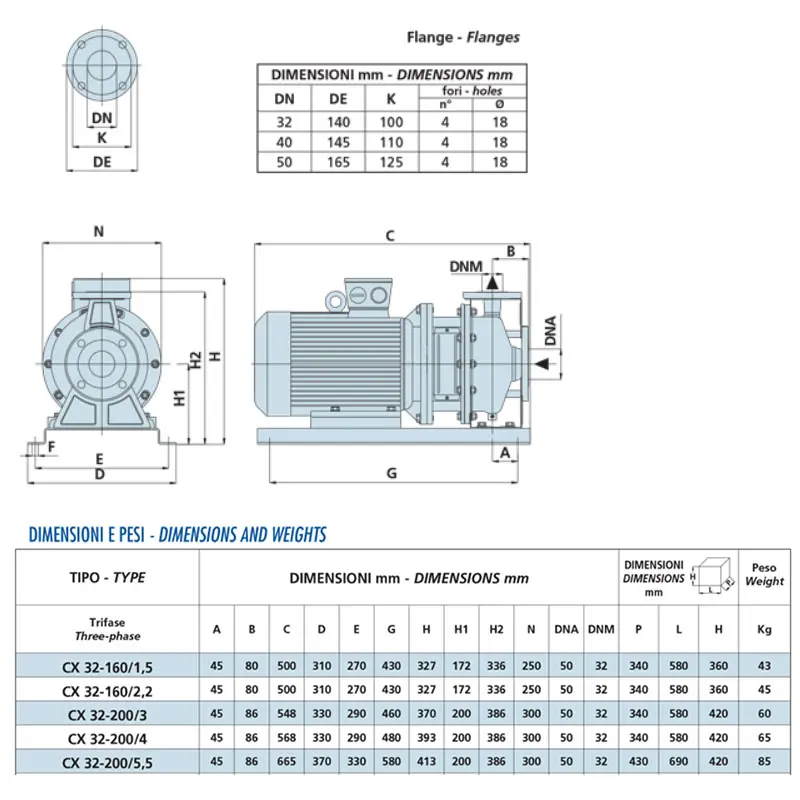

The CX Speroni electric pumps are equipped with a 2-pole three-phase induction electric motor and are available in different powers that can be selected from the drop-down menu. The Speroni CX 32 range has a delivery diameter of Ø 32 mm and an intake diameter of Ø 50 mm .

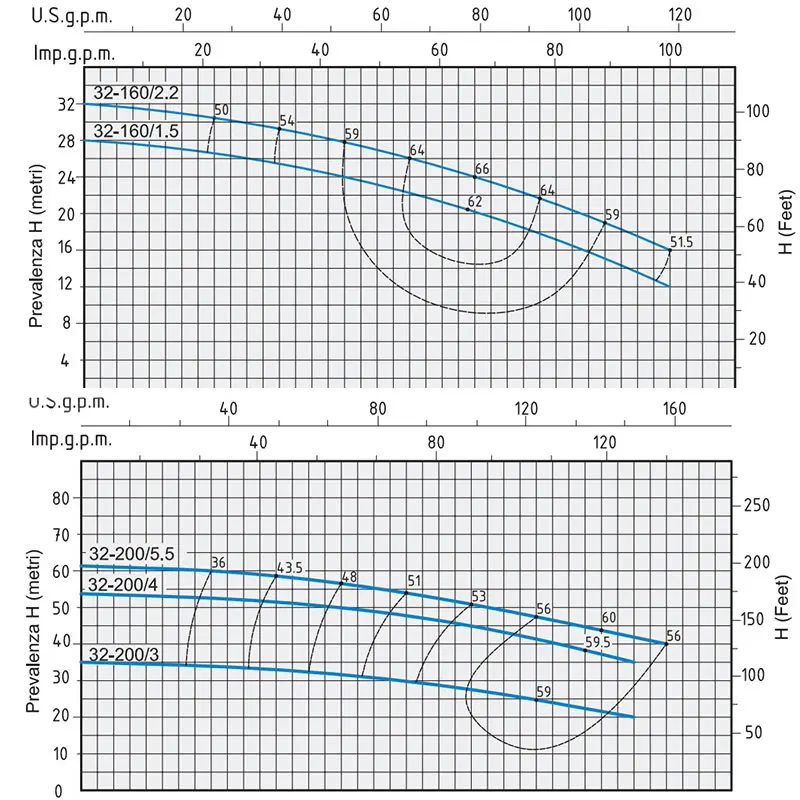

Maximum head 58.5 m with water flow rate of 600 L/min max with manometric suction height up to 7 m .

These Speroni CX 32 electric pumps have three-phase power and can have a 230V-50Hz or 400V-50Hz connection .

Functional specifications

The CX 32 Speroni electric pumps can be installed in any position (with the exception of the one with the suction mouth facing upwards), making their use easy in various activities. Furthermore, these monobloc centrifugal electric pumps have a construction form that allows the extraction of the motor complete with rotating parts of the pump and subsequent reassembly without removing the pump body or the pipes connected to it.

Models available

Selectable from the drop-down menu:

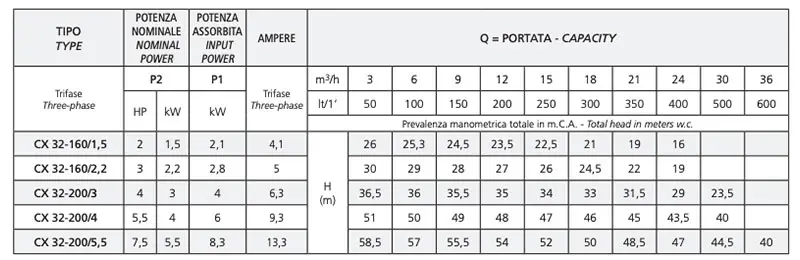

• Spurs CX 32-160/1.5 cod. 101810013 - power 2 HP
• Spurs CX 32-160/2.2 cod. 101810023 - power 3 HP
• Spurs CX 32-200/3 cod. 101810073 - power 4 HP
• Spurs CX 32-200/4 cod. 101810083 - power 5.5 HP
• Spurs CX 32-200/5.5 cod. 101810093 - power 7.5 HP

Limitations of use

• Liquid temperature up to 35°C
  (for domestic use according to EN 60335-2-41)
  Max. temperature liquid: 90°C (for other uses)
• Ambient temperature up to 40°C
• Manometric suction height up to 7 m.
• Continuous service

Materials

• Pump course: AISI 304 stainless steel
• AISI 304 stainless steel seal holder flange
• Impeller: AISI 304 stainless steel
• Motor shaft: AISI 304 stainless steel
• Mechanical seals: Ceramic / Graphite / NBR

Motor

• Three-phase 230/400V-50Hz
• 2-pole induction electric motor (n = 2850 min-1)
• Class F insulation
• IP 55 protection

Areas of use

• Water supplies
• Rain or flow irrigation
• Autoclave supplies and pressure increases
• Heating and air conditioning
• Any other use that involves the transfer of clean liquids in general
• Civil field
• Agricultural field
• Industrial field
• Plant engineering field in general
