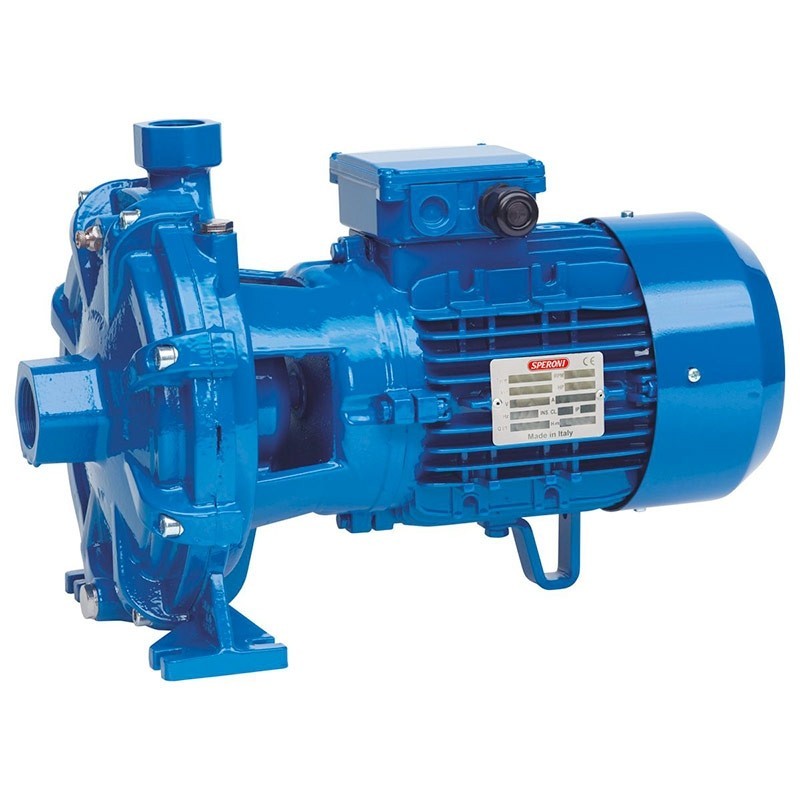

Speroni 2C 25/160 B
Three-phase twin-impeller electric pump

Speroni 2C 25/160 B - Twin-impeller centrifugal electric pump

The Speroni 2C 25/160 B is a twin-impeller centrifugal electric pump designed for lifting clean water or other liquids moderately loaded with impurities but not aggressive towards the materials of which the pump is made.

These pumps can be single-phase or three-phase, selectable from the drop-down menu above and are characterized by the use of two opposing impellers which allow much higher heads than single-impeller models.
The 2CM electric pumps are suitable for civil and industrial systems, for water distribution via autoclave and for rain irrigation both in agriculture and in private gardens.

Download the Technical Data Sheet

Limitations of use

• Liquid temperature limit up to 35 °C for domestic use (EN 60335-2-41)
• Liquid temperature limit up to 90°C for other uses
• Ambient temperature up to 40°C
• Monometric suction height up to 7 m
• Continuous service

Materials

• Pump course: Cast iron
• Engine support: Cast iron
• Impellers: Brass
• Motor shaft: AISI 304 stainless steel
• Mechanical seals: Ceramic / Graphite / NBR

Engines

• Class F insulation
• IP 55 protection
• Single phase 230V-50Hz ≤ 7.5 kW
• Three-phase 230/400V-50Hz > 7.5 kW
• 2-pole induction electric motor (n=2850 min-1)
• Minimum efficiency index (BEP) MEI ≥ 0.4

Hydraulic curve

Model details available

Product Dimensions
