Rato RT50YB100-7.2Q
High Head Motor Pump

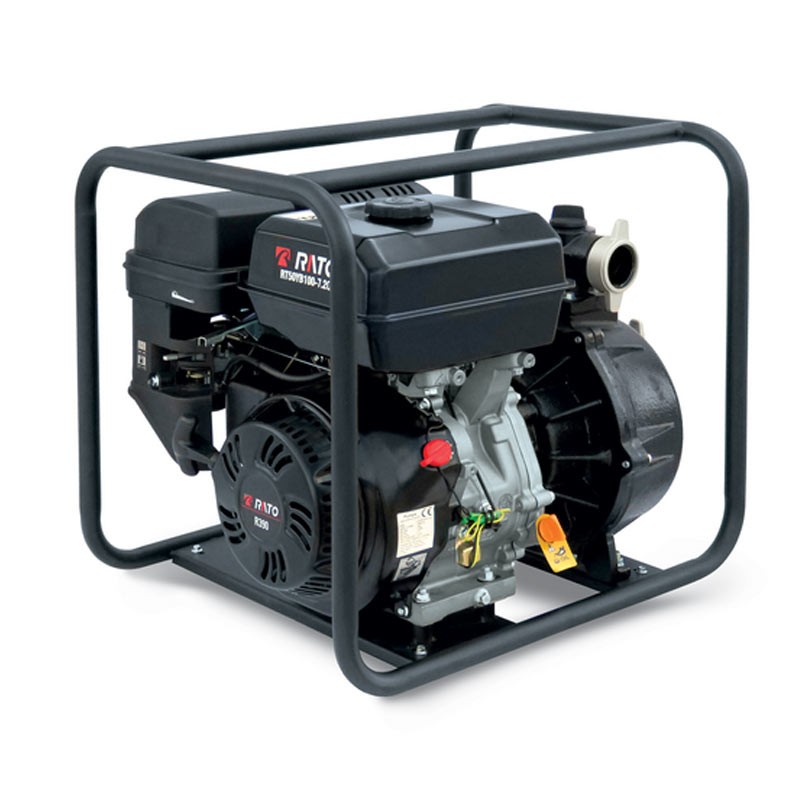

Rato RT50YB100-7.2Q - 13 HP High Head Motor Pump

The Rato RT50YB100-7.2Q water pump is a high-head machine designed to ensure high performance and reliability in any condition. Powered by a 13 HP Rato R390 petrol engine, it offers a flow rate of 500 L/min and is ideal for agricultural, industrial, and emergency applications. Thanks to its self-priming system , aluminum construction, and recoil starter, it ensures rapid and long-lasting operation.

• Power 13 HP
• Displacement 389 cc
• Oil bath lubrication
• Manual start
• Flow rate 500 L/min
• Maximum head 90 m
• Suction 7 m
• Suction and delivery diameter Ø 2''

Operating curve

Functional specifications

Powerful and reliable Rato engine

The heart of the Rato RT50YB100-7.2Q is the robust Rato R390 engine , a single-cylinder overhead valve (OHV) engine with a displacement of 389 cm³ and 13 HP . Oil-bath lubrication ensures long life and reduced wear on mechanical components, while automatic decompression makes starting easy even at low temperatures. Starting is manual, with a pull cord.

Self-priming pump with 7 m suction

The Rato RT50YB100-7.2Q pump is self-priming, built entirely of high-strength aluminum, which provides a perfect balance between strength and lightness. With a speed of 3600 rpm , it can guarantee a flow rate of 500 L/min and a maximum head of 90 meters , ideal for irrigation, drainage or water transport operations over long distances. The maximum draft of 7 m further increases its versatility.

Compact design and ease

Weighing just 64 kg, which makes transport and installation easy, the Rato water pump is ready to use in less than 5 minutes and comes with aluminum fittings, a suction filter, clamps, a bottle of oil, and an instruction manual. The 5.2 L tank ensures extended operating time.

Scope of use

Can be used in these contexts:

• Agriculture
• Industry

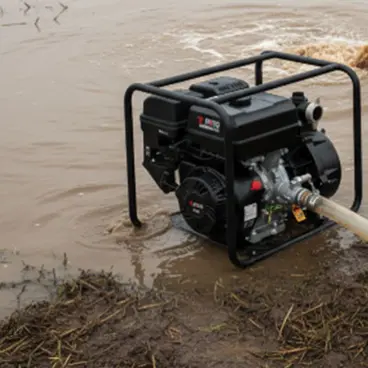

• Emergency and civil protection - especially for emptying flooded areas
• Construction sites and building works

Characteristics

• Motor pump suitable for irrigation, drainage and water transport
• Self-priming pump with max 7 m draft
• High-strength aluminum pump
• Pump working at 3600 rpm
• Weight 64 kg
