Leo KBZ
Drainage Electric Pump
Three Phase from 3 to 7.5 HP
230V - 1 HP
175 L/h - Head 32.5 m
Ø 1"
€830.00
€680.33 tax excl.

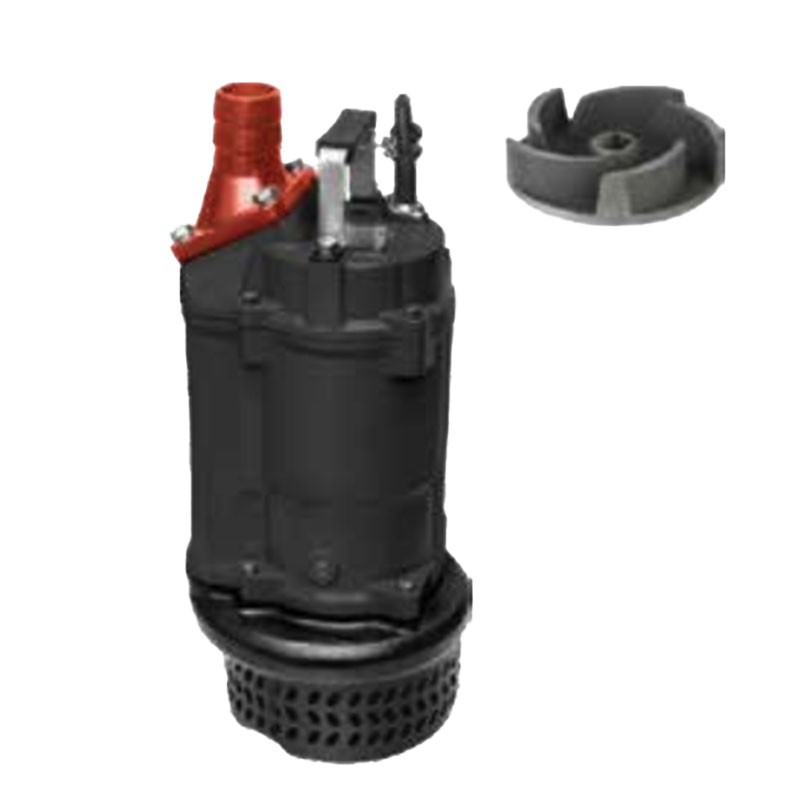

Leo KBZ - Drainage Electric Pump
Leo KBZ is a drainage electric pump designed to efficiently and reliably tackle the most demanding applications in the civil engineering, mining, sewage treatment and general pumping sectors. Built to operate in harsh conditions, this submersible pump offers flow rates of up to 105 m³/h , with heads reaching 34 m , ensuring high drainage capacity even in the presence of sewage, sludge or waste water.
Leo KBZ mounts motors from 2.2 to 5.5 kW , with copper windings, IP68 protection and insulation class B , ideal for immersions up to 25 meters deep . The pump body is designed to resist corrosion and wear, while the free passage of 8.5 mm allows the management of suspended solids.
Leo KBZ represents the ideal choice for those who need a robust, long-lasting and high-performance solution in the industrial and infrastructural fields.
Available models
- KBZ 22.2 - code 1056022
- KBZ 33.7 - code 1056033
- KBZ 45.5 - code 1056045
APPLICATION
- Civil Engineering
- Coal Mines and Sewage
- Purification plants
- Pumping systems
PUMP
- Maximum liquid temperature: 40 °C
- Flow rates up to 105 m³/h
- Heads up to 34 m
- Power from 2.2 kW (3 HP) up to 5.5 kW (7.5 HP)
- Maximum diving depth 25 m
Motor
- Copper winding
- Insulation class B
- IP 68 protection

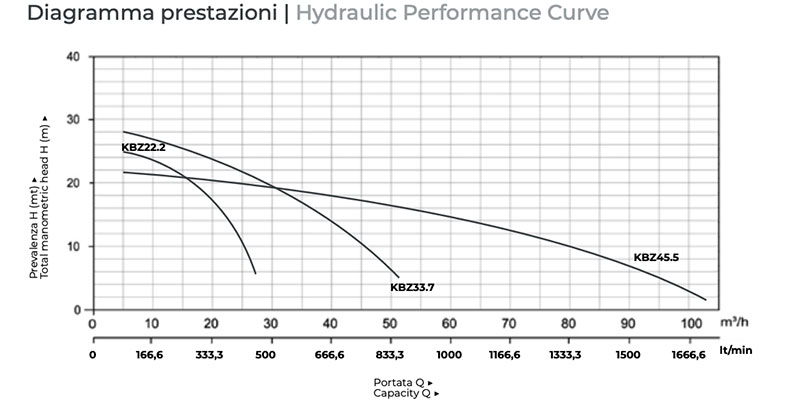

Performance

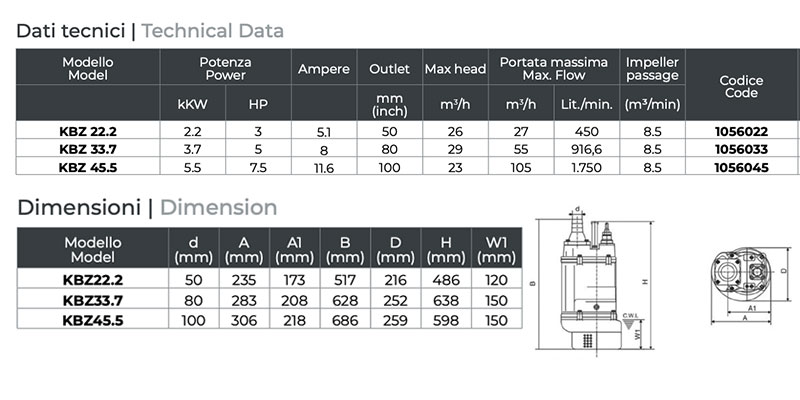

Technical Data
| Model | KBZ 22.2 | KBZ 33.7 | KBZ 45.5 |
| Code | 1056022 | 1056033 | 1056045 |
| Power Supply | 400V | 400V | 400V |
| Rated power | 2.2 kW - 3 HP | 3.7 kW - 5 HP | 5.5 kW - 7.5 HP |
| Delivery Diameter | Ø 2'' (50 mm) | Ø 3'' (80 mm) | Ø 4'' (100 mm) |
| Suction Diameter | Ø 216 mm | Ø 252 mm | Ø 259 mm |
| Prevalence | 34 m | 34 m | 34 m |
| Max Liquid Temp. | 40 °C | 40 °C | 40 °C |
| Protection Class - Insulation | IP68 - Class B | IP68 - Class B | IP68 - Class B |
| Diving Depth | 25 m | 25 m | 25 m |
| Dimensions | 51 x 23.5 x 21.6 cm | 62.8 x 28.3 x 25.2 cm | 68.6 x 30.6 x 25.9 cm |
| Pump Material | Cast iron | Cast iron | Cast iron |
Technical Data
| Model | KBZ 22.2 | KBZ 33.7 | KBZ 45.5 |
| Code | 1056022 | 1056033 | 1056045 |
| Power Supply | 400V | 400V | 400V |
| Rated power | 2.2 kW - 3 HP | 3.7 kW - 5 HP | 5.5 kW - 7.5 HP |
| Delivery Diameter | Ø 2'' (50 mm) | Ø 3'' (80 mm) | Ø 4'' (100 mm) |
| Suction Diameter | Ø 216 mm | Ø 252 mm | Ø 259 mm |
| Prevalence | 34 m | 34 m | 34 m |
| Max Liquid Temp. | 40 °C | 40 °C | 40 °C |
| Protection Class - Insulation | IP68 - Class B | IP68 - Class B | IP68 - Class B |
| Diving Depth | 25 m | 25 m | 25 m |
| Dimensions | 51 x 23.5 x 21.6 cm | 62.8 x 28.3 x 25.2 cm | 68.6 x 30.6 x 25.9 cm |
| Pump Material | Cast iron | Cast iron | Cast iron |
