Speroni SNG-TV 400V
Vortex Submersible Electric Pumps
Three-phase 1.5 and 2 HP
400 V - 1.5÷2 HP
600 L/min - Prevalence 11÷12 m
2'' DNV
€370.00
€303.28 tax excl.
Speroni SNG-TV 400V - Submersible Electric Pumps with Vortex Impeller Three Phase 1.5 and 2 HP
Speroni SNG 1500-TV and SNG 2000-TV portable stainless steel submersible electric pumps with recessed Vortex type stainless steel impeller, ideal for emptying settling pits and pumping waste water for domestic and civil use.
The Speroni SNG-TV models available here are Three-phase 400V (50Hz) , with class F insulation and IP 68 protection in oil bath for cooling and bearing lubrication. The water flow rate is max. 600 L/min with a head of 11 to 12 m based on the selected model.
Available models
- SNG 1500-TV - 1.5 HP 1.1 kW 400 V
- SNG 2000-DV - 2 HP 1.5 kW 400 V
Also available on our website are single-phase 230V models from 0.75 HP to 2 HP.
Usage limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Maximum diving depth 10 m.
- Solid passage Ø 50 mm
- Min. suction level 70 mm
- Continuous service
Motor
- Three phase 400V-50Hz
- Double chamber with oil bath motor for cooling and bearing lubrication
- Permanent capacitor inserted
- Insulation Class F
- IP 68 protection
Materials
- Handle: AISI 304 Stainless Steel + PP
- Motor case: AISI 304 stainless steel
- Pump body: Cast iron
- Impeller: AISI 304 Stainless Steel
- Suction grille: AISI 304 stainless steel
- Crankshaft: AISI 304 Stainless Steel

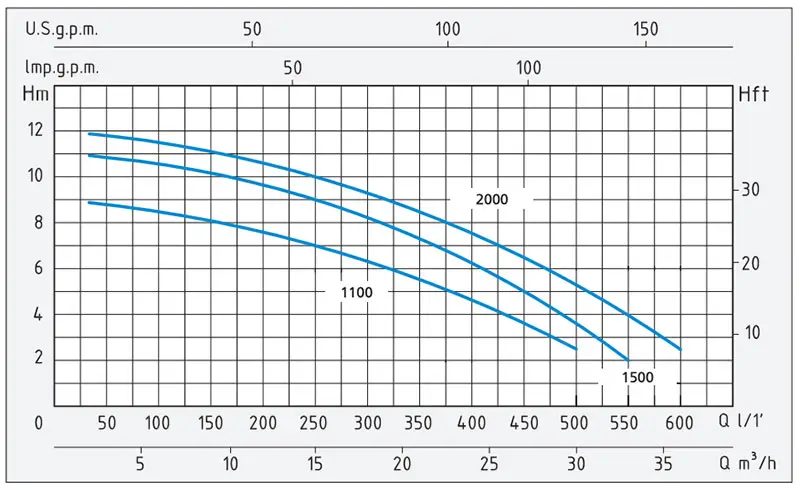

Hydraulic Curve

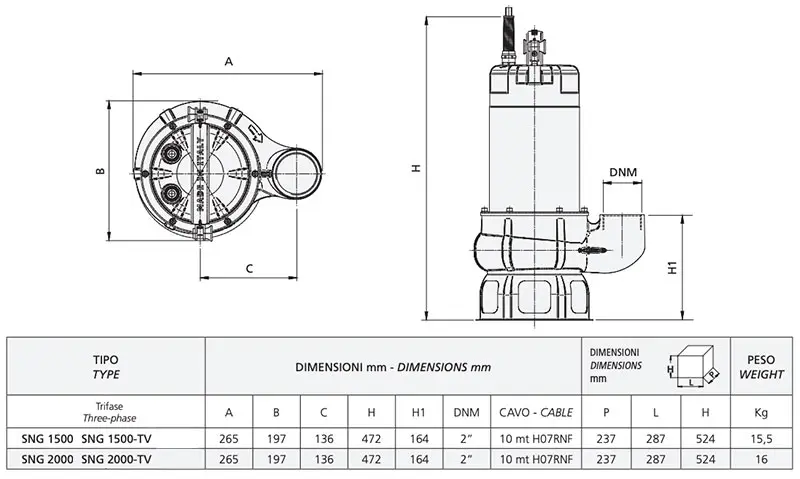

Product Dimensions

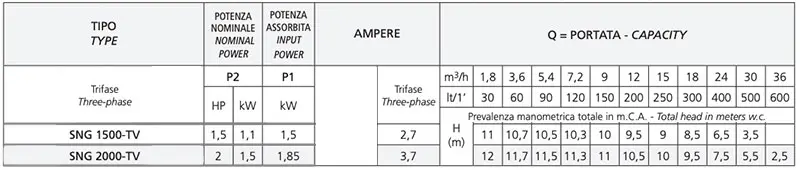

Technical Data
| Model | SNG 1500-TV | SNG 2000-TV |
| Code | 101298970 | 101298980 |
| Power Supply | 400V | 400V |
| Nominal Power | 1.5 HP (1.1 kW) | 2 HP (1.5 kW) |
| Delivery Diameter | DNM 2'' | DNM 2'' |
| Minimum prevalence | 3.5 m | 2.5 m |
| Max prevalence | 11 m | 12 m |
| Liquid Flow Rate | 600 L/min | 600 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 23.7 x 28.7 x 52.4h cm | 23.7 x 28.7 x 52.4h cm |
| Weight | 15.5 kg | 16 kg |
Technical Data
| Model | SNG 1500-TV | SNG 2000-TV |
| Code | 101298970 | 101298980 |
| Power Supply | 400V | 400V |
| Nominal Power | 1.5 HP (1.1 kW) | 2 HP (1.5 kW) |
| Delivery Diameter | DNM 2'' | DNM 2'' |
| Minimum prevalence | 3.5 m | 2.5 m |
| Max prevalence | 11 m | 12 m |
| Liquid Flow Rate | 600 L/min | 600 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 23.7 x 28.7 x 52.4h cm | 23.7 x 28.7 x 52.4h cm |
| Weight | 15.5 kg | 16 kg |
