Leo LVR 15
Surface Electric Pump
Three-Phase from 3 to 5.5 HP Vertical

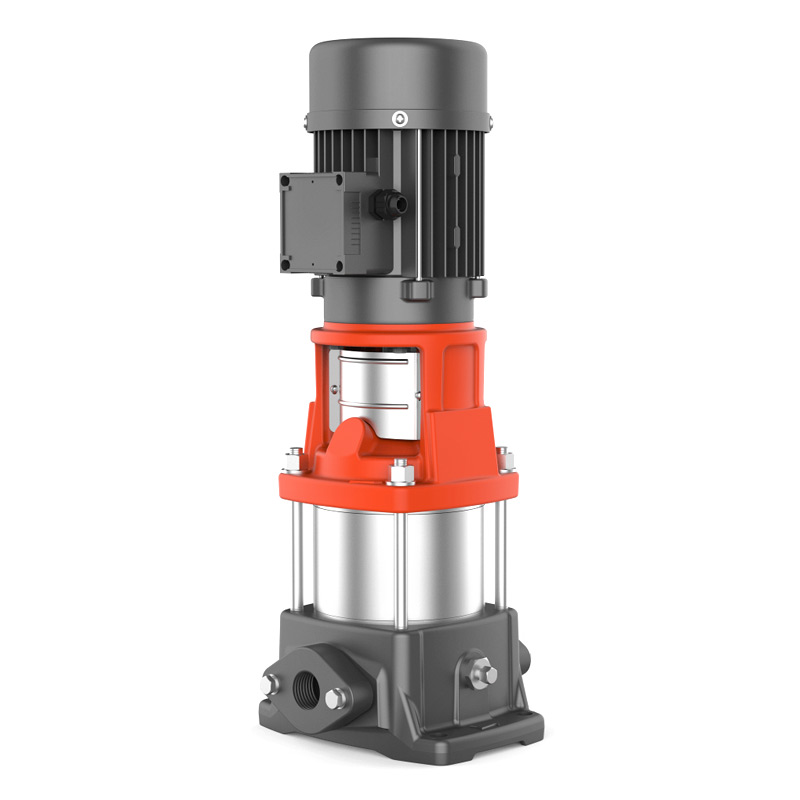

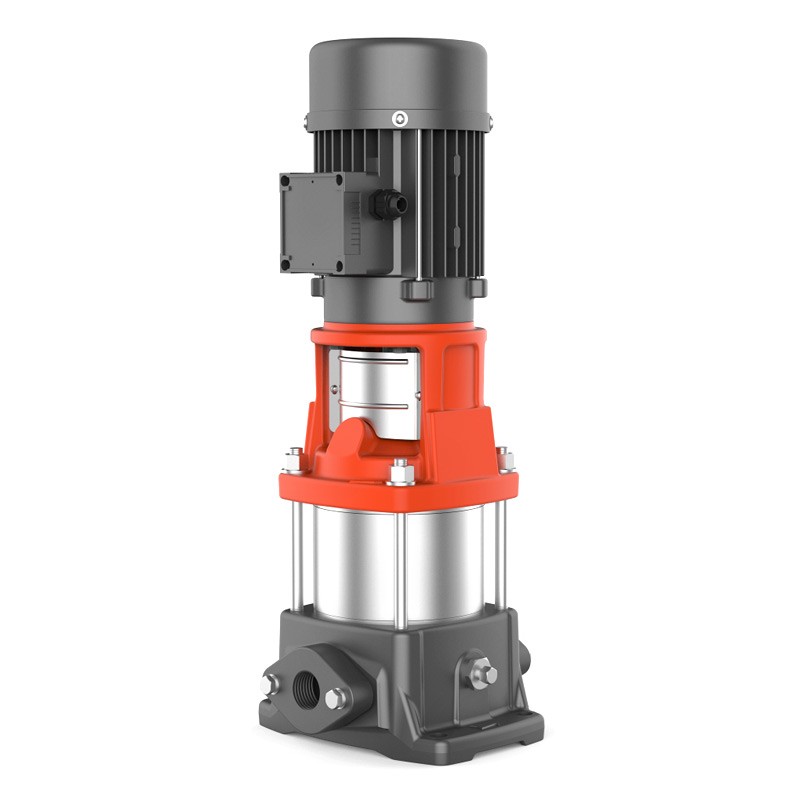

LEO LVR 15 400V - Vertical Centrifugal Electric Pump

The Leo LVR 15 pump is designed for transferring clean water or non-aggressive liquids, ideal for civil, agricultural, and industrial applications. The Leo LVR is perfect for surface or sprinkler irrigation and for pumping water from lakes, rivers, or wells. It is also used in the fruit and vegetable industry for washing vegetables and in industrial applications for parts washing machines, thanks to its ability to deliver high flow rates at low head.

The pump is made with a cataphoresis-treated cast iron body , brass impeller and AISI 304 stainless steel shaft. It can withstand temperatures from -20°C to +120°C , with suction up to 8 metres . It is equipped with an IE3 motor with copper windings, IPX4 protection and class F insulation .

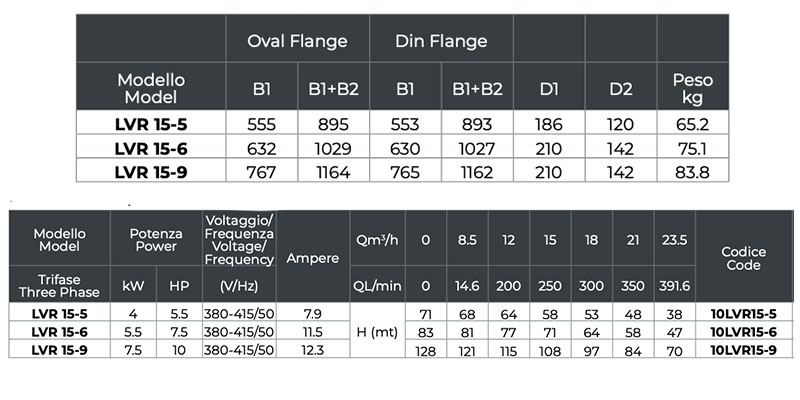

Available models

Selectable from the drop-down menu:

• LVR 15-5 - code 10LVR15-5
• LVR 15-6 - code 10LVR15-6
• LVR 15-9 - code 10LVR15-9

Application

• Clean water or chemically non-aggressive liquids: recommended for use in civil and agricultural environments
• Sprinkler irrigation
• Water withdrawal from lakes, rivers or wells
• Industrial use requiring high flow rates with low heads
• Fruit and vegetable sector for washing vegetables
• Industrial sector for washing tools

Pump

• • Cast iron pump body, subjected to cataphoresis treatment
  • Brass impeller
  • AISI 304 shaft
  • Liquid temperature: -20°C +120°C
  • Manometric suction height up to: 8 m

Motor

• Motor with copper winding
• Insulation class F
• Protection class IPX4
• Energy efficiency class: IE 3
• Maximum ambient temperature +40°C

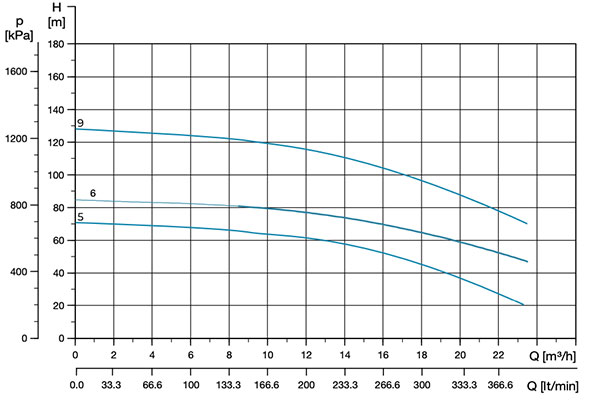

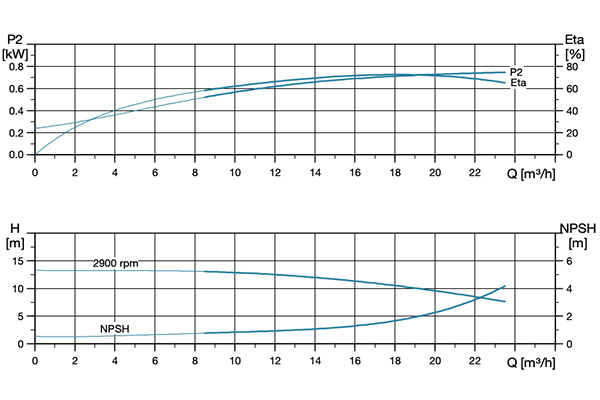

Operating curves

Suction pressure

The maximum suction pressure is indicated in the table
