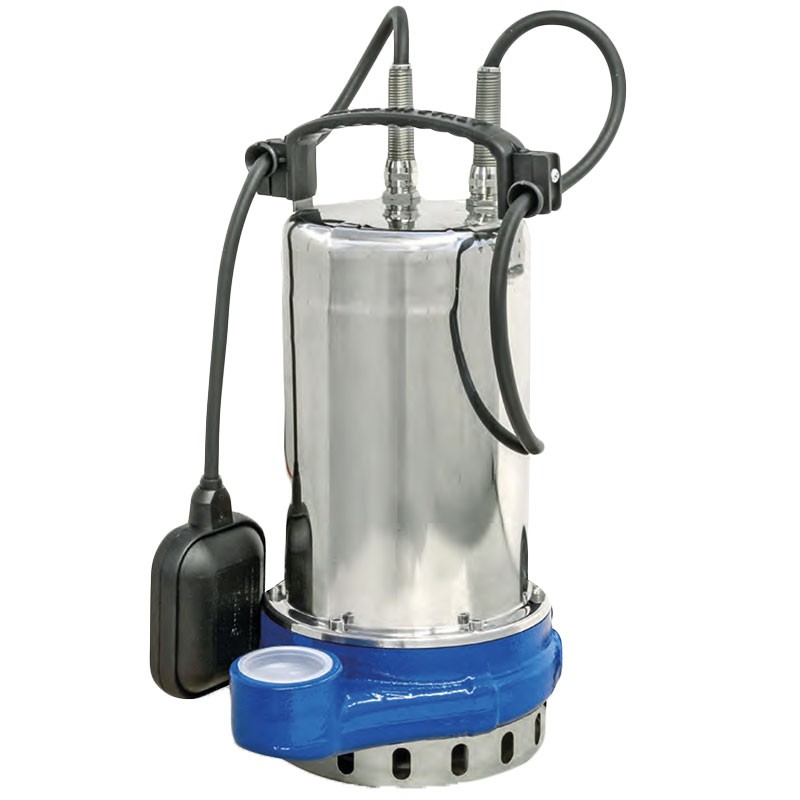

Speroni SNG-TD 400V
Stainless Steel Submersible Electric Pumps
Three Phase 1.5 and 2 HP
400 V - 1.5÷2 HP
450 L/min - Prevalence 18÷20 m
DN 1'' 1/2
€339.00
€277.87 tax excl.
Speroni SNG-TD Three-phase 400V models - Stainless Steel Submersible Electric Pumps 1.5 and 2 HP
Speroni SNG 1500-TD and SNG 2000-TD portable, automatic stainless steel submersible electric pumps for drainage used for draining seepage water, emptying flooded rooms or tanks, draining both clean and slightly dirty waste water and for irrigating vegetable gardens and gardens.
The Speroni SNG-TD models available here are Three-phase 400V (50Hz) , with class F insulation and IP 68 protection in oil bath for cooling and bearing lubrication. The water flow rate is max. 450 L/min with a head from 18 to 20 m based on the selected model.
Available models
- SNG 1500-TD - 1.5 HP 1.1 kW 400 V
- SNG 2000-DS - 2 HP 1.5 kW 400 V
Also available on our website are single-phase 230V models from 0.75 HP to 2 HP.
Usage limits
- Liquid temperature up to 35°C (for domestic use according to EN 60335-2-41)
- Max. liquid temperature: 35°C (for other uses)
- Maximum diving depth 10 m.
- Min. suction level 40 mm
- Continuous service
Motor
- Three phase 400V-50Hz
- Double chamber with oil bath motor for cooling and bearing lubrication
- Permanent capacitor inserted
- Insulation Class F
- IP 68 protection
Materials
- Handle: AISI 304 Stainless Steel
- Motor case: AISI 304 stainless steel
- Pump body: Cast iron
- Impeller: Technopolymer
- Suction grille: AISI 304 stainless steel
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seal: Silicon/Silicon/NBR

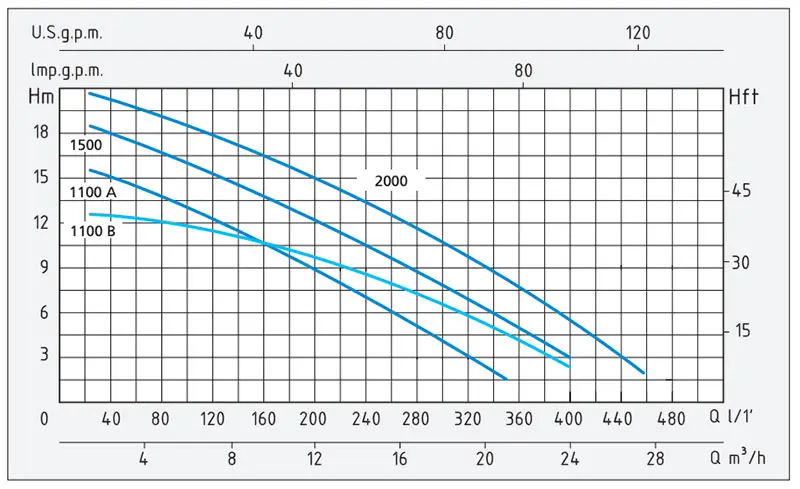

Hydraulic Curve

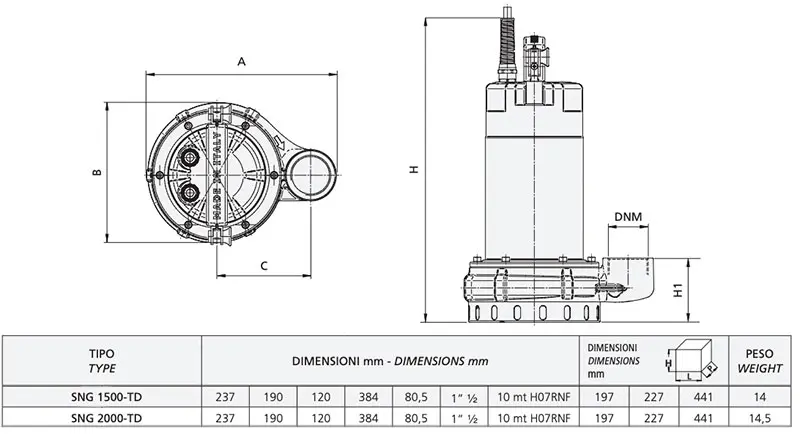

Product Dimensions

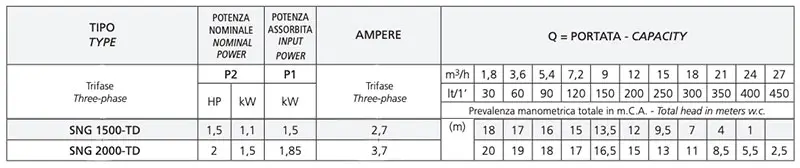

Technical Data
| Model | SNG 1500-TD | SNG 2000-TD |
| Code | 101298870 | 101298880 |
| Power Supply | 400V | 400V |
| Nominal Power | 1.5 HP (1.1 kW) | 2 HP (1.5 kW) |
| Delivery Diameter | DNM 1'' 1/2 | DNM 1'' 1/2 |
| Minimum prevalence | 1 m | 2.5 m |
| Max prevalence | 18 m | 20 m |
| Liquid Flow Rate | 450 L/min | 450 L/min |
| Protection Class - Insulation | IP 68 - F | IP 68 - F |
| Dimensions with packaging | 19.7 x 22.7 x 44.1h cm | 19.7 x 22.7 x 44.1h cm |
| Weight | 14 kg | 14.5 kg |
