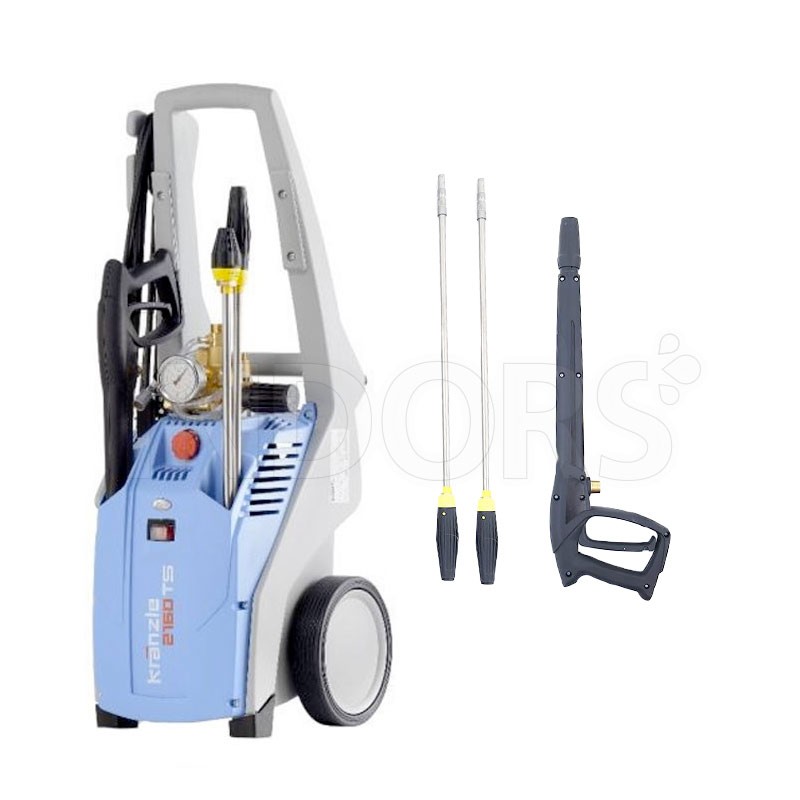

Kranzle K 2160 2195 2175 TS
1400 rpm pressure washer

Kranzle K 2160 2195 2175 TS - 1400 rpm pressure washer

The Kranzle K series is made up of various models where the design is common and the only characteristics that change are pressure, flow rate and power supply.

The models of the Kranzle K 2000 series are:

• Kranzle K 2160 TS Single Phase 230V (with 10 meters of hose without hose reel)
• Kranzle K 2195 TS Single Phase 230V (with 10 meters of hose without hose reel)
• Kranzle K 2175 TS Three-phase 400V (with 10 meters of hose without hose reel)

See the specifications table at the bottom of the page to see the models compared and make your choice!

Kranzle K can also be positioned horizontally

Characteristics

• The pump head in special brass
  the pump head is made in Germany by Kranzle, using special forged brass which guarantees extremely long life.
• Ceramic Coated Stainless Steel Pistons All machines are equipped with ceramic coated stainless steel pistons which offer excellent thermal conductivity characteristics and excellent wear resistance properties (typical of ceramic coatings).
• Motor 1400 rpm
  the devices are equipped with long-lasting 4-pole asynchronous electromotors with low speed (1,400 rpm). No charcoal brushes = no problems!
• Protection against dry running
  in all machines each piston is equipped with a textile band and a Teflon-graphite ring. The excellent sliding properties of the Teflon-graphite elements reduce frictional resistance and temperatures inside the device. For this reason Kranzle products can work for a long time even without water. And this increases safety in cases of dry running.
• Bypass operation
  When the gun is closed, all the devices are switched to bypass operation at reduced pressure and the water is transported into the circuit with a residual pressure of approximately 10 bar.
• Water pressure and quantity adjustment
  the machines, except those with a double group, allow you to set the operating pressure and, consequently, the quantity of water so as to adapt them exactly to the needs of the cleaning being carried out.
• Stainless steel pressure gauge
  all machines are equipped with large and clearly visible stainless steel pressure gauges cushioned with glycerin. Kranzle quality also in the details.
• Absence of corrosion and long life
  all pump components and safety devices that transport water are made of stainless steel or special brass.
• Loss recovery system
  a layer of water between the piston sealing systems prevents the sucked air from coming into contact with the pump seal. This allows a significant increase in the life of the pistons themselves and the pump.
• Product safety
  Kranzle devices are subjected to testing procedures according to CE and TÜV/GS regulations with respective certifications.
• Sturdy Roto-Mold Frame
  made in a single piece with large diameter rubber wheels suitable for transport on any type of terrain. The materials used to make the frame and the diameter of the wheels make it suitable for dragging even along the steps of a staircase.
• 5 m of electrical cable with cable reel
• Housing for all accessories
  high pressure gun, Vario-Jet lance and lance with rotating nozzle

Difference model "TS" and "TS T"

The Kranzle K 2000 series, of which the K 2195 is part, is built with oversized mechanical parts designed for industrial and continuous use. This is also why Kranzle can guarantee the long life of its devices. The body of the K 2000 series pressure washers has been designed to guarantee the most rational possible arrangement of each component: the hose reel, the seat for the high pressure gun, the seats for the lances and the system for winding the electric cable .

Fields of application

For professional use and for demanding professionals who love having a machine that is always in perfect working order with attention to the smallest details. For washing vehicles and machinery, garden equipment, floors, external walls, paint stripping and sandblasting.

Standard equipment

• 5 m of electrical cable with cable reel
• High pressure hose with steel reinforcement mesh
• M2000 auto-stop pistol
• Stainless steel lance with rotating nozzle
• Stainless steel Vario-Jet lance with continuous adjustment from "Round to Flat" jet and with passage from high to low pressure
• Instruction manual
