Annovi Reverberi AR 5870
Hot Water Pressure Washer

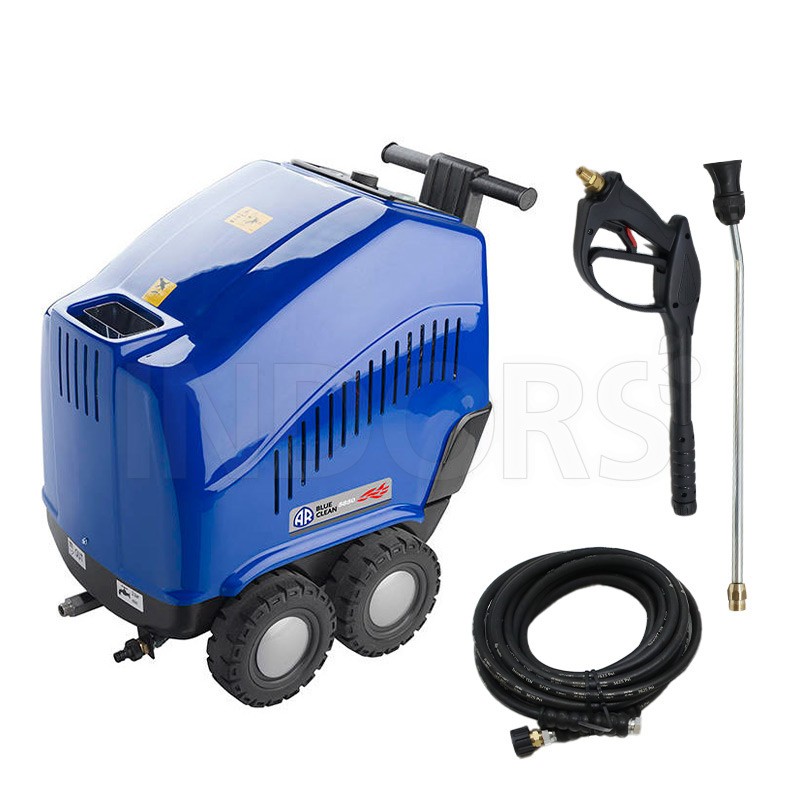

Annovi Reverberi AR 5870 - Three-Phase Hot Water Pressure Washer

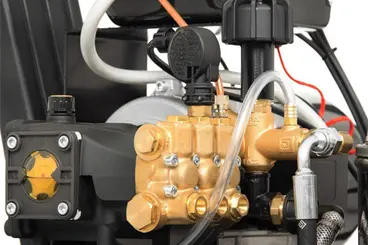

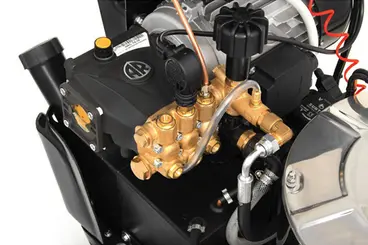

Annovi Reverberi AR 5870 professional hot water pressure washer equipped with a three-phase induction motor with thermal protection and a brass pump head . The pressure washer is built with a durable and compact structure and features large rubber wheels ideal for moving and practical holders for the lance and hose. This machine is equipped with top-quality components, such as a high-performance piston pump with a connecting rod and crank system and an automatic bypass valve that allows the pressure in the pump head to be released to zero.

The AR 5870 pressure washer is ideal for removing stubborn dirt and encrustations as, thanks to the reliable vertical stainless steel boiler , it is able to supply hot water with temperatures of up to 150°C ; the boiler is diesel-powered, with an advanced spiral burner cooling system driven by an independent electric motor, uses a double coil and is equipped with a refractory cement bottom .

Thanks to a variety of technological features, the pressure washer is able to operate safely and efficiently. It features water and diesel filters , a safety pressure switch that ensures the boiler shuts off in the event of a water shortage, and a delay card for boiler shutdown. It also features a thermostat for temperature regulation and a pressure regulation system.

The Annovi Reverberi AR 5870 features a large 8 L diesel tank with a drain plug for easy emptying; it also features a built-in detergent suction system.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

Technical specifications

• Hot water
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System Timed

HRCS pump

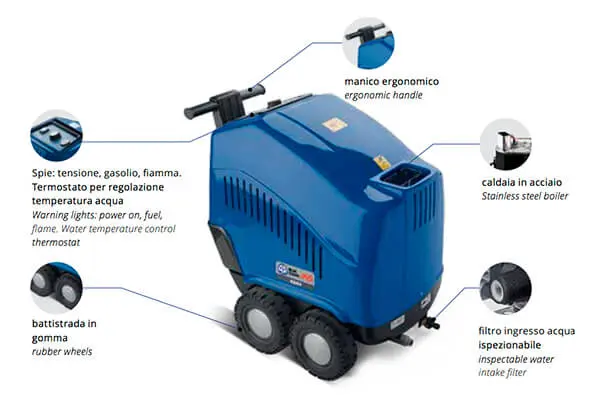

Characteristics

• Compact structure
• Transport wheels
• Lance and hose supports
• Hot water up to 150°C
• Piston pump with brass head
• Automatic bypass valve
• Safety pressure switch
• Vertical stainless steel boiler
• Boiler shutdown delay card
• Pressure regulation
• 8 L diesel tank with drain plug
• Thermostat
• Detergent suction
• Water filter and diesel filter
• 5m electric cable

Equipment

• Professional pistol
• Professional steel lance
• Nozzle
• 10 m high pressure hose
