Pramac E5000 Three-Phase
6.3 kW Honda GX270 Petrol Generator
400V - 6.3 kW
270 cc - 8.4 HP
Motore Honda GX 270

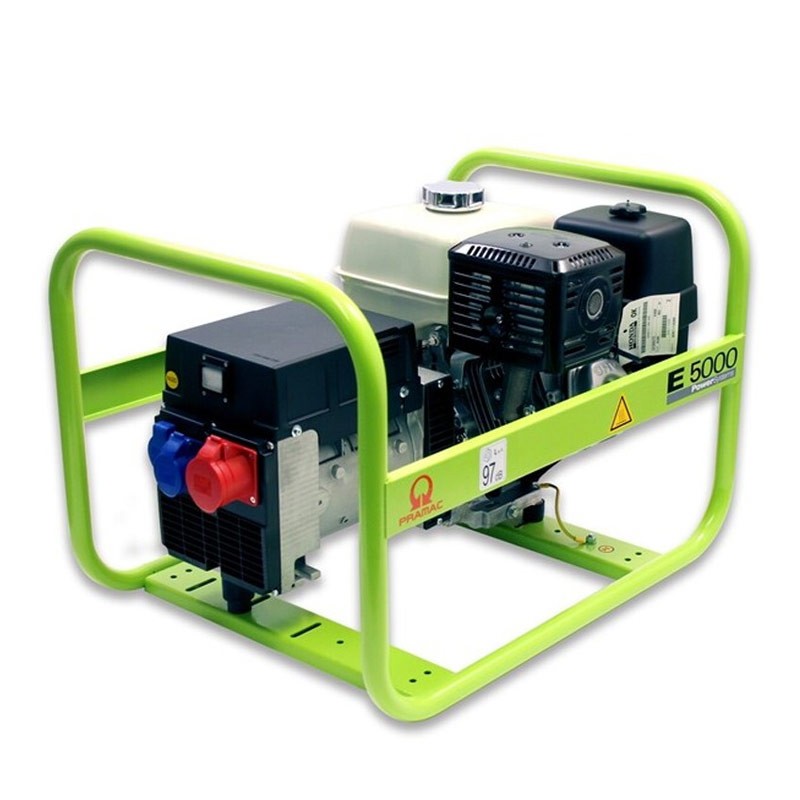

Pramac E5000 - Professional Three Phase Generator 6.3 kW
Pramac E5000 trifase is a three-phase generator designed to provide reliable energy in professional, industrial and emergency contexts. Pramac E50000 for its high performance and construction quality, making it ideal for construction sites, craft activities and intensive domestic use.
Pramac E5000 three-phase is equipped with a Honda GX270 engine , a 270 cc single-cylinder petrol engine, capable of reaching a power of 5.0 kVA in three-phase and 6.3 kVA in single-phase . The engine operates at a speed of 3000 rpm, ensuring stability and reliability over time.
Functional specifications

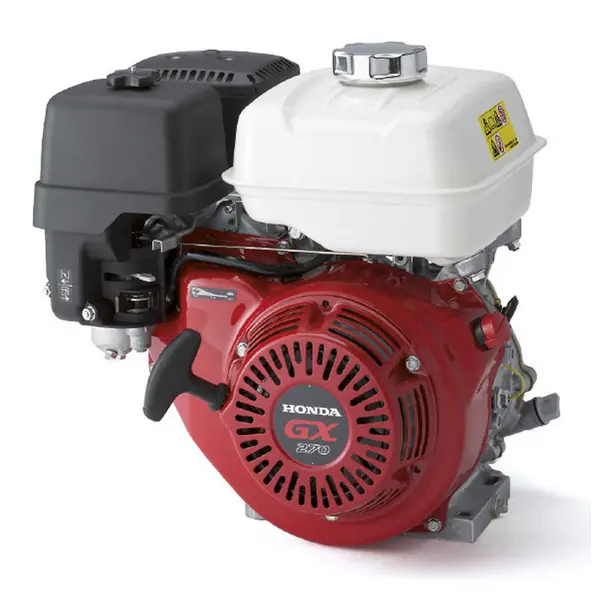

Honda GX 270 petrol engine

Single cylinder engine with OHV configuration for efficient combustion, with CDI variable valve timing for more power with reduced emissions. This Honda GX270 engine has a displacement of 270cc, with a net power of 6.3 kW (8.4 HP) at 3600 rpm.
This engine gives the Pramac E5000 generator excellent performance and great stability of performance over working time. This three-phase generator has a 5.3 L tank .
Great autonomy
With a fuel consumption of 1.66 L/h at nominal load. This gives it an operating autonomy of approximately 3.2 hours, sufficient for many professional applications before having to refuel.
Recoil start and air cooling
The starting system is recoil, while the cooling is air with a cylinder inclination.

Reduced noise
In terms of noise, the declared noise level is 69 dB at 7 meters away. The E5000 Trifase is a relatively quiet generator compared to other petrol models.
Sturdy frame
Load-bearing tubular frame, which gives the Pramac 400V generator great robustness.
Complete control panel
The control panel has the following controls: ON/OFF switch , recoil starter , fuel tap , and there is also 1 230V 16A Schuko socket .
Standard Protection
The generator has thermal protection and Oil Guard for low oil level .
Generator sockets
The E5000 sockets are as follows:
- 1 x 230V Schuko 16A IP54
- 1 x 230V CEE 16A IP44
- 1 x 400V CEE 16A IP44
Watch the video
Characteristics
- Heavy duty petrol generator
- Three-phase
- Tubular frame structure
- Easy maintenance
- Ideal for professional applications
- Reliable Honda GX 270 engine
- 1 Schuko socket 230V 16A
- Thermal Protection IP23
- Oil Guard
How to choose a portable generator
Below are some useful tips for choosing the product that best suits your needs:
- Product use : if you need the generator for occasional emergency use, for long-term or limited-time use;
- Voltage type : evaluate whether you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
- Amount of power : the need for energy support must be assessed
Do not hesitate to contact us for any doubts or need for further specifications!
Technical Data
| Fuel | Gas |
| Start-up | to Tear |
| Maximum Three Phase Power | 6.3 KVA - 5.0 KW cos φ 0,8 |
| Three Phase Rated Power | 5.4 KVA - 4.3 KW cos φ 0,8 |
| Maximum Single Phase Power | 3.8 KVA - 3.4 kW φ 0,9 |
| Single Phase Rated Power | 3.5 KVA - 3.2 kW φ 0,9 |
| Generator Type | Open |
| Output Voltage | 400V / 50Hz |
| Motor | Honda GX270 Recoil |
| Displacement | 270 cm³ |
| Engine revolution | 3000 RPM |
| Phase | 1 |
| Horses | 8.4 HP |
| Fuel Tank Capacity | 3.2 L |
| Autonomy 75% Load | 3.17 h |
| Fuel Consumption @ 75% Load | 1.66 L/h |
| Noise | 69dBA |
| Schuko socket 230V 16A | 1 |
| CEE socket 16 A IP44 | 1 |
| Socket 400V CEE 16A IP44 | 1 |
| Dimensions | 71.5 x 54 x 49 cm |
| Weight | 74 kg |
