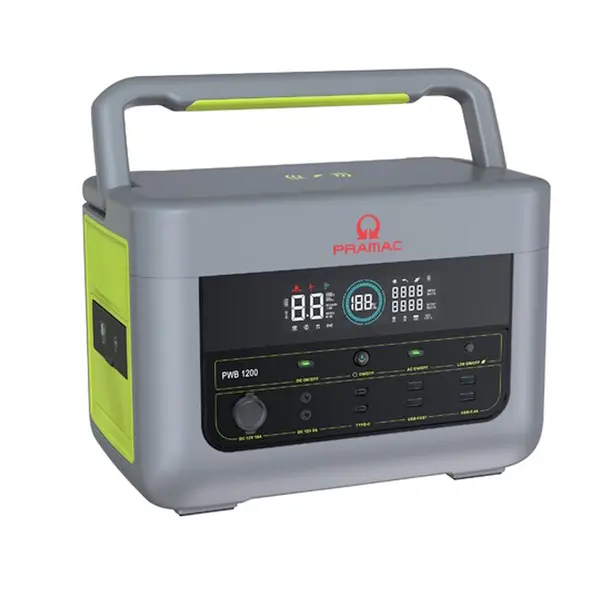

Pramac PWB1200
Power Station 2.4 kW LifePO4

Pramac PWB1200 - Power Station 2.4 kW with Lithium LifePO4 battery

The Pramac PWB1200 is an advanced portable power station designed to offer a versatile and reliable solution for your on-the-go energy needs. This cutting-edge device is ideal for a wide range of applications, from outdoor adventures to emergency situations, thanks to its power, portability and numerous features.

Pramac PWB1200 offers a continuous output power of 1200W , with a peak capacity of 2400W for up to 1.5 sec. This power is enough to handle a variety of electronic devices and small appliances, making it an excellent choice for everyday needs and emergency situations.

The built-in battery is a Li-ion LFP (Lithium Iron Phosphate), one of the most advanced technologies for portable batteries due to its durability and safety. The nominal voltage of the battery is 25.6 VDC with a nominal capacity of 1075 Wh .

This battery is designed to last up to 2000 cycles at 80% Depth of Discharge (DOD), ensuring long life and reliable performance .

Functional specifications

Power Station to power home devices

Features and Applications The Pramac PWB1200 is designed to be a versatile power solution in many situations. It can power laptops , smartphones , tablets and cameras , providing a safe and reliable charge for your essential devices. The Pramac PWB1200 power station can handle small appliances such as portable heaters , hair dryers , electric kettles and grills , making it useful for camping and travel.

Power Station for emergencies

With an emergency power switchover time of less than 10 milliseconds, the PWB1200 can serve as a backup system during power outages or emergencies.

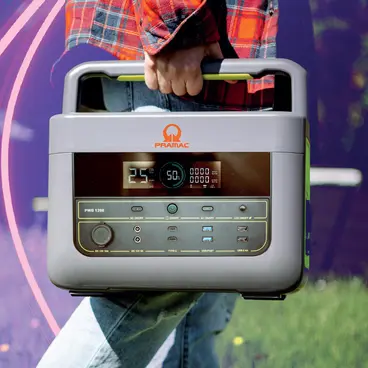

Compact and portable

The compact design of the Pramac PWB1200 makes it easy to carry and use on the go. The dimensions of the product are 37.6 x 21.5 x 26.2 cm and the weight is 16.2 kg, making the device relatively light and easy to carry. The IP20 protection ensures that the power station is protected from solid objects larger than 12 mm, although it is not designed to be water resistant.

PWB Input Specifications

Maximum single-phase input 800 W , with charging times of 1 h to 80% and 2 h for 100% . Maximum DC solar charging 400 W , with solar charging time to 80% of 2.1 h and with 200 W power of 4 h .

Protections

Among the protections present are:

• Inverter Short Circuit Protection
• Inverter Overload Protection
• Inverter Over Temperature Protection
• Inverter Low Battery Protection
• System Status Control Panel
• Battery Condition
• MPPT Solar Charge Controller
• Parallel Connector

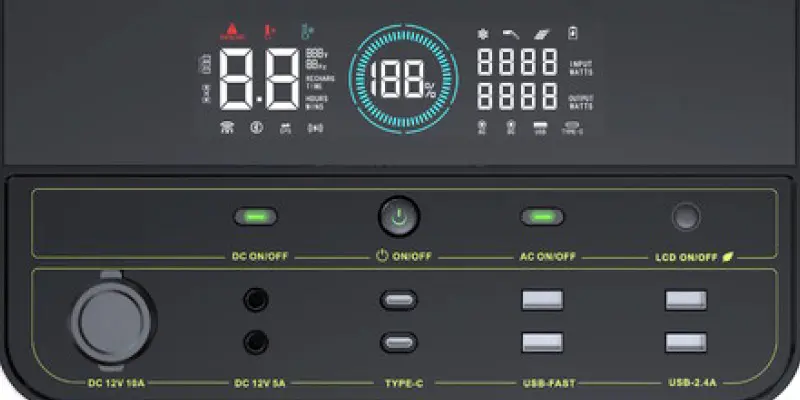

Sockets

Among the sockets present are:

• AC Shucko Sockets 230V - x 2
• Car Socket 12V/10A - x 1 - x 1
• DC Socket 6514 (12V/5A) - x 2
• USB-A 12W maximum (5V / 2.4A) - x 2
• USB-A 24W max (5/9/12V | 3/2.2/2A) - x2
• USB-C maximum 100W (5/9/12/15/20V | 3/5A) - x 2
• Wireless Charging - x 1

Characteristics

• Professional Power Station LFP Lithium Ion
• Wireless Charger
• Solar Charging
• Integrated Fast Charging 1h 80%
• Parallel Connector
• EPS Emergency Power Supply
