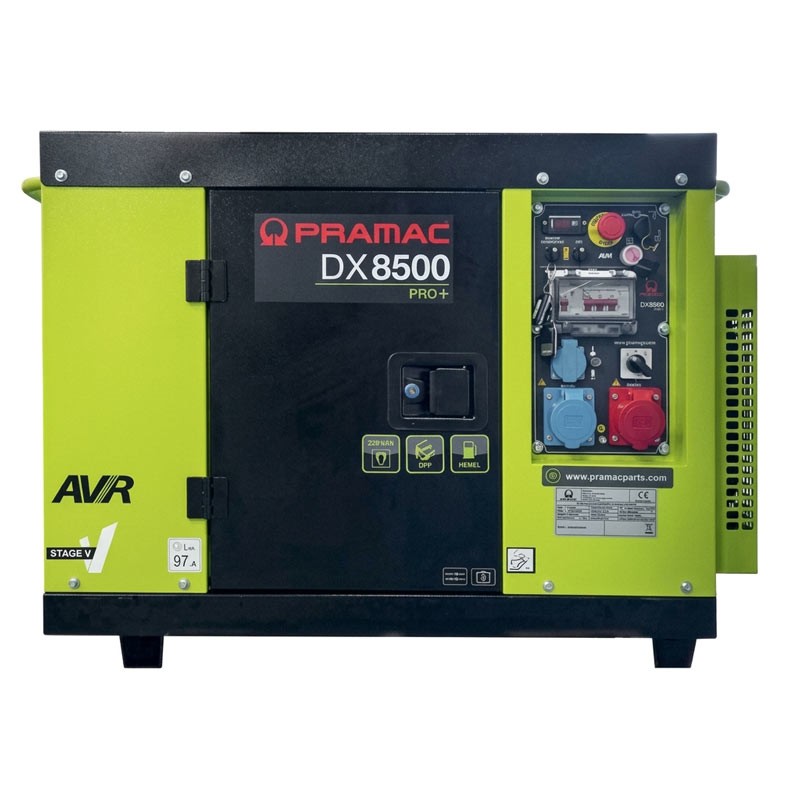

Pramac DX8500
8500 W Diesel Power Generator

Pramac DX8500 - 8500 W Diesel Power Generator

Pramac DX8500 is a professional diesel power generator with 8500 W, 8000 W rated power, and 400/230 V single-phase/three-phase voltage. The Full Power function allows it to deliver up to 7700 W in single-phase.

Equipped with a Pramac OHV Stage V engine, electric start, a 23 L tank, and up to 9.5 hours of runtime at 75% load, it features AVR and is ready for ATS and remote start, integrating RCD and circuit breaker protections.

ATS control unit sold separately.

Functional Specifications

Full Power 7700 W

The Full Power function maximizes available single-phase power, up to 7700 W maximum and 7200 W rated, over two-thirds of the three-phase rated power.

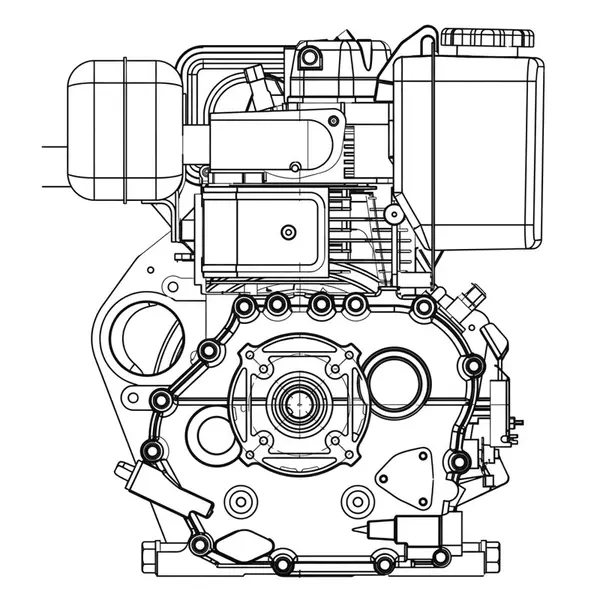

Stage V Diesel Engine

Pramac OHV diesel engine, 1 inclined cylinder, 3000 RPM, compliant with Stage V emission standards. 2 L oil sump capacity and Oil Guard system for low oil level protection.

Electric and Remote Start

Key start and dry contact for remote control via relay opening/closing, manually or via inverter in case of primary power failure.

AVR Voltage Regulation

Pramac DX8500 integrates an AVR (Automatic Voltage Regulation) system for automatic regulation of the output voltage, ensuring greater power supply stability and protection of connected equipment.

ATS

The ATS connector allows connection to automatic transfer switch systems for starting the generator set in case of mains failure.

Runtime and Consumption

23 L diesel tank, consumption of 2.42 L/h at 75% load, and 9.5 hours of runtime at 75% load.

Noise Level

Sound power LWA 97 dB(A) and sound pressure at 7 m of 69 dB(A).

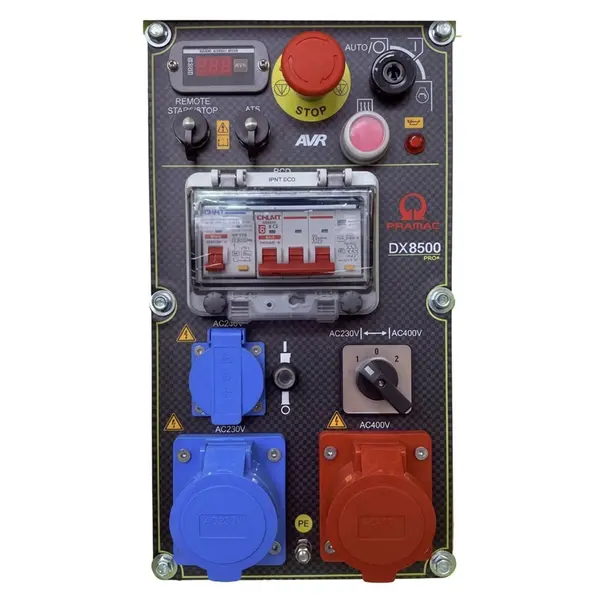

Control Panel

Panel with key ignition, single-phase/three-phase switch + Full Power, dry contact, remote control for remote start, ATS connector, voltmeter, hour meter, frequency meter, fuel level indicator, oil level warning light, and emergency stop button.

Electrical Protections

Equipped with RCD differential protection, circuit breaker protection, and 16 A AC switch.

230/400 V Sockets

• 1 Schuko socket 230 V 16 A IP44
• 1 socket 2P+T CEE 230 V 16 A IP44
• 1 socket 3P+N+T CEE 400 V 16 A IP44.

Features

• Professional diesel power generator
• Maximum power 8500 W
• Rated power 8000 W
• Maximum single-phase power 7700 W
• Voltage 400/230 V single-phase/three-phase
• Full Power function
• Pramac OHV Diesel Stage V engine
• Electric start
• 23 L fuel tank
• 9.5 h runtime at 75% load
• 2.42 L/h fuel consumption at 75% load
• AVR electronic voltage regulation
• ATS connector
• Remote start via dry contact
• RCD differential protection
• Circuit breaker protection
• CEE 230 V and 400 V IP44 sockets
• Sound pressure 69 dB(A) at 7 m
