Multipower MY40ISS
Ultra Silent Industrial Generator
42 kW 1500 RPM
MPN: 10028
230/400V - 37.8 kW
4 cylinders
4-STROKE DIESEL
Warranty 2
years
Shipped on Pallet

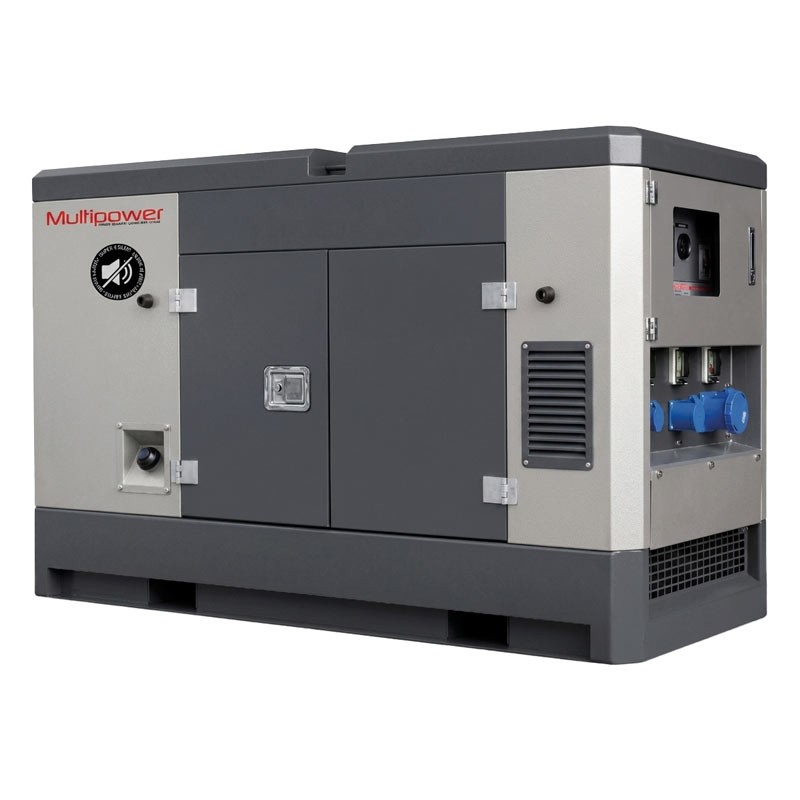

Multipower MY40ISS - Ultra Silent Industrial Diesel Generator 42 kW 1500 RPM
Multipower MY40ISS, a diesel industrial generator for professional applications requiring power continuity, reliability, and low noise emissions.
FPT 1500 RPM engine, Mecc Alte brushless alternator with AVR regulation, water cooling, and electric start.
Continuous power of 38 kVA and emergency power of 42 kVA.
Ultra-silent canopy, 110 L tank, with 16 hours of autonomy and ComAp InteliNano AMF5 control panel.
For continuous professional use, construction sites, industrial plants, and backup applications.
Functional Specifications
Professional Three-Phase Diesel Generator
The three-phase diesel generator provides stable power at 230/400 V, with 38 kVA in continuous service and 42 kVA in emergency, making it suitable for powering industrial equipment and loads with high starting currents.
FPT Water-Cooled Engine
The FPT R24MSNS01.40A01 4-cylinder diesel engine, 2400 cc, and 1500 RPM ensures operational reliability, optimized consumption, and long life even under intensive use. The water cooling ensures consistent performance over time.
Mecc Alte Brushless Alternator with AVR
The Mecc Alte ECP30 2L4C brushless alternator with AVR electronic regulation and Class H insulation offers high voltage stability and a starting capacity up to 3 times the nominal current, ideal for starting inductive loads.
Ultra-Silent Cabin for Professional Use
The ultra-silent galvanized sheet metal canopy reduces noise levels down to 85 dB(A) and is equipped with stainless steel locks and hinges, doors with retainers, rounded edges for water runoff, and an inspection window for the control panel.
ComAp InteliNano AMF5 Control Panel
The ComAp InteliNano AMF5 control panel allows for complete monitoring of the generating set and is pre-equipped for connection to an automatic ATS panel, facilitating integration into emergency systems.
Reinforced Structure and Easy Maintenance
The reinforced steel base protects the canopy and includes a liquid collection basin, leak detection sensor, forklift pockets, central lifting eye, and large access doors to speed up maintenance operations.
High Autonomy and Convenient Refueling
The 110 L tank provides up to 16 hours of autonomy at 75% load. The external filler neck with a lockable cap and dedicated points for draining oil, fuel, and coolant simplify routine management operations.
Safety and Complete Equipment
The generating set is equipped with sockets protected by magnetic-thermal and differential circuit breakers, an emergency stop button, an oil extraction pump, a water heater, an exhaust manifold insulation band, a muffler with flexible joint, and a rain cover. The starter battery is included and it complies with CE/EU directives regarding safety and noise levels.

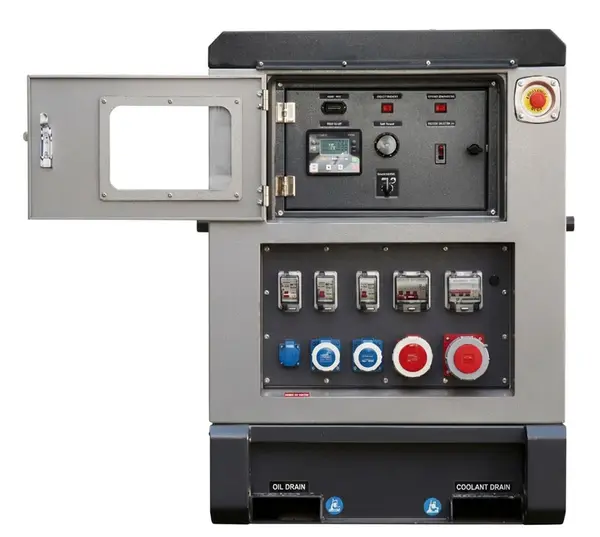

Digital Control Panel
The digital control panel PAD.40.1YIT features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- Main Magnetic-Thermal Circuit Breaker Q1
- Magnetic-Thermal Circuit Breaker with Differential for each socket (MCB+RCD Type A 30 mA)
- Power Terminal Block

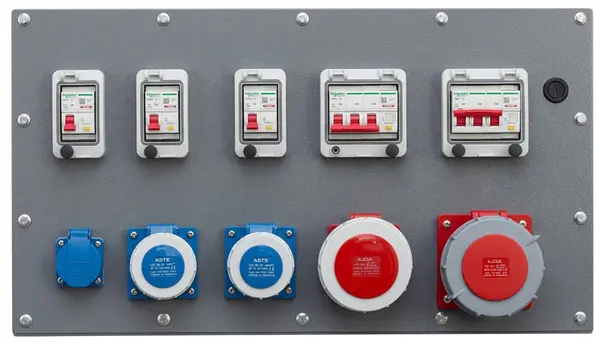

- Output Sockets:
- 1x 400V 63 A 3P+N+T CEE IP67
- 1x 400V 32 A 3P+N+T CEE IP67
- 2x 230V 16 A 2P+T CEE IP67
- 1x 230V 16 A 2P+T Schuko
- Ground Terminal (PE)
Characteristics
- Professional industrial diesel generator
- Three-phase power supply 230/400 V
- Continuous power 12.6 kVA (230V) / 38 kVA (400V)
- Emergency power 14 kVA (230V) / 42 kVA (400V)
- FPT R24MSNS01.40A01 engine
- 4-cylinder diesel engine 2400 cc 1500 RPM
- Water cooling
- Electric start
- Mecc Alte ECP30 2L4C brushless alternator
- Automatic voltage regulation AVR
- Alternator insulation Class H
- Starting capacity up to 3x In
- Performance Class G2
- IP23 Protection Rating
- Noise level 85 dB(A)
- 110 L fuel tank
- Autonomy up to 16 hours at 75% load
- ComAp InteliNano AMF5 control panel
- ATS panel pre-arrangement
- Tropicalized radiator
- Reinforced base with liquid containment basin
- Leak detection sensor
- Oil extraction pump
- Water heater
- External filler with key lock
- Wide opening maintenance doors
- Ultra-silent galvanized sheet metal canopy
- Stainless steel locks and hinges
- Handling with forklift pockets and central hook
- Starter battery included
- Compliant with CE/EU directives for safety and noise levels
Technical Data
| Power Supply | Diesel |
| Output Voltage | 230/400V |
| Engine Speed | 1500 RPM |
| Starting | Electric |
| Max Power 230V / 400V | 14 kVa / 42 kVa |
| Rated Power 230V / 400V | 12.6 kVa / 38 kVa |
| Generator Type | Ultra Silent |
| Engine | 4 Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 16 h |
| Noise Level | 86 dB(A) |
| Tank Capacity | 110 L - with liquid collection basin |
| Dimensions | 210 x 95 x 125 cm |
| Weight | 1071 kg |
