Multipower MY30ISS 10026 - Ultra-Silent Industrial Diesel Generator 33 kW 1500 RPM
search
  • Multipower MY30ISS 10026 - Ultra-Silent Industrial Diesel Generator 33 kW 1500 RPM

Multipower MY30ISS
Ultra Silent Industrial Generator
33 kW 1500 RPM


MPN: 10026

230/400V - 29.7 kW
4 cylinders
4-STROKE DIESEL


description Quotation Request
Private Negotiation
Private Negotiation
Personalised Quotations
Tested Product
Tested Product
Ready to Use
Need Help?
Need Help?
Ask The Expert
reso facile Warranty 2 years
spedizione su bancale Shipped on Pallet
  • paypal
  • visa
  • mastercard
  • contrassegno
  • soisy
  • bonifico
  • scalapay
You can choose the Secure Payment method you prefer

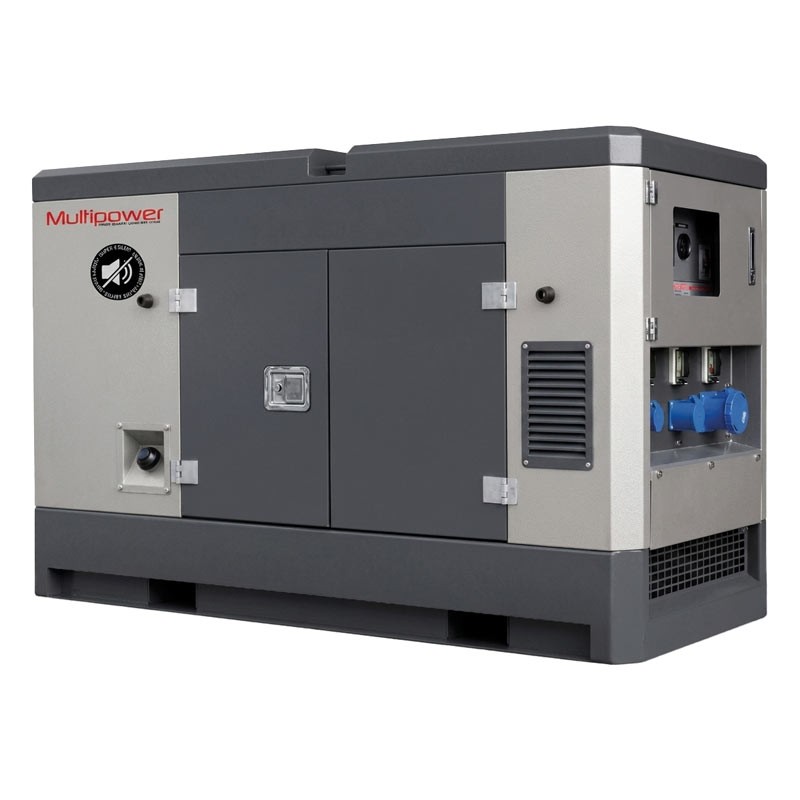

Multipower MY30ISS - Ultra Silent Industrial Diesel Generator 33 kW 1500 RPM

Multipower MY30ISS, an ultra-silent industrial generator for professional applications requiring operational continuity, reliability, and high performance.

Water-cooled FPT diesel engine 1500 RPM, brushless Mecc Alte alternator with AVR regulation, electric start, and ComAp InteliNano AMF5 control panel.

Stable output up to 30 kVA in continuous service and 33 kVA in emergency.

Ultra-silent enclosure, 110 L tank, up to 17 h autonomy, reinforced structure.

Industrial generator set for construction sites, production plants, industrial activities, and continuous professional applications.

ATS panel available on request.

Multipower MY30ISS 10026 - Ultra Silent Industrial Diesel Generator 33 kW

Functional Specifications

High-Performance FPT Diesel Engine

The 4-cylinder FPT diesel engine, 2400 cc, and 1500 RPM, with water cooling, ensures high reliability, optimized consumption, and constant performance even in the most demanding applications.

Mecc Alte Brushless Alternator with AVR

The Mecc Alte brushless alternator with AVR regulation and Class H insulation guarantees stable voltage and high starting capacity up to 3 times the nominal current, ideal for powering loads with high starting absorption.

ComAp InteliNano AMF5 Control Panel

The ComAp InteliNano AMF5 control panel allows complete control of the industrial generator, with provision for connection to an automatic ATS panel, protection management, and monitoring of key operating parameters.

Ultra-Silent and Robust Structure

The galvanized sheet metal enclosure with stainless steel locks and hinges, reinforced base, and cabin with water-runoff profiles ensure high resistance to atmospheric agents and long operational life, maintaining a low noise level of 86 dB(A).

Multipower MY30ISS 10026 - Ultra Silent Industrial Diesel Generator 33 kW

Easy Maintenance

Large access doors, external dedicated plugs for oil, fuel, and coolant drainage, oil extraction pump, and leak detection sensor simplify all routine maintenance operations.

High Operational Autonomy

The 110 L fuel tank with a lockable external filler cap and liquid collection basin ensures up to 17 h autonomy at 75% load, reducing refueling interventions during use.

Safety and Electrical Distribution

Distribution sockets are individually protected by magnetic-thermal and differential circuit breakers. The unit is also equipped with an emergency stop button, water heater, exhaust manifold insulation wrap, and complies with CE/EU directives on safety and noise levels.

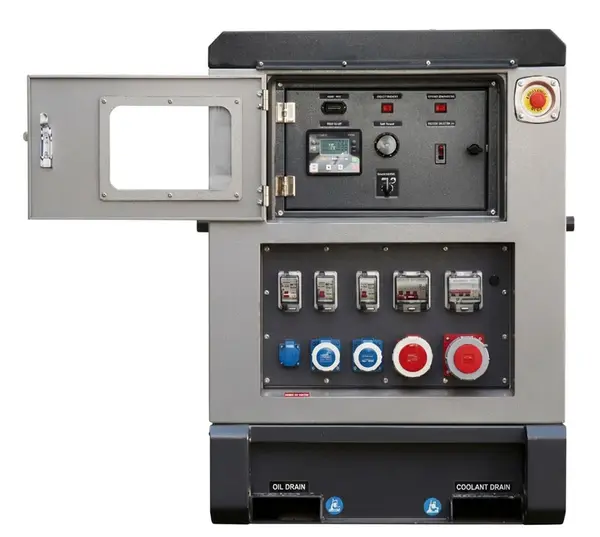

Digital Control Panel

Multipower MY30ISS 10026 - Ultra Silent Industrial Diesel Generator Control Panel 33 kW

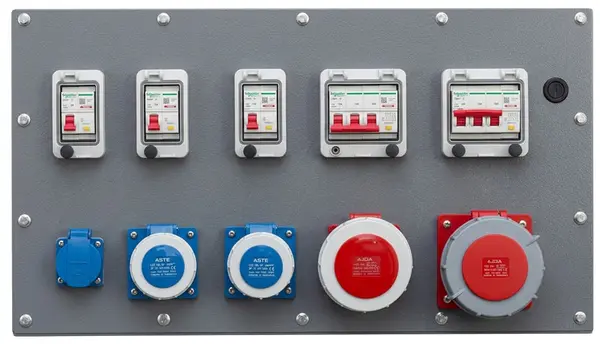

The digital control panel PAD.30.1YIT features:

  • IntelliNano AMF5 Controller
  • ON/OFF Selector
  • Panel Light
  • Panel Light Switch
  • Internal Light Switch
  • Main Magnetic-Thermal Circuit Breaker Q1
  • Magnetic-Thermal Circuit Breaker with Differential for each socket (MCB+RCD Type A 30 mA)
  • Power Terminal Block
  • Output Sockets:
    • 1x 400V 63 A 3P+N+T CEE IP67
    • 1x 400V 32 A 3P+N+T CEE IP67
    • 2x 230V 16 A 2P+T CEE IP67
    • 1x 230V 16 A 2P+T Schuko
  • Ground Terminal (PE)

Features

  • Three-phase industrial diesel generator
  • Ultra-silent
  • FPT 4-cylinder diesel engine, 2400 cc, 1500 RPM
  • Water cooling
  • Electric start
  • Continuous power 10 kVA (230V) / 30 kVA (400V)
  • Emergency power 11 kVA (230V) / 33 kVA (400V)
  • Output voltage 230/400 V
  • Mecc Alte ECP30 3M4C brushless alternator
  • AVR electronic regulation
  • Class H alternator insulation
  • Starting capacity up to 3xIn
  • G2 performance class
  • IP23 protection rating
  • ComAp InteliNano AMF5 control panel
  • ATS connection provision
  • Sockets protected by magnetic-thermal and differential breakers
  • 110 L fuel tank
  • Up to 17 h autonomy at 75% load
  • Reinforced steel base
  • Leak-proof base with liquid collection basin
  • Liquid leak detection sensor
  • Tropicalized radiators
  • Oil extraction pump
  • Water heater
  • Muffler with flexible joint and rain cap
  • Galvanized sheet metal enclosure
  • Stainless steel locks and hinges
  • Wide inspection doors
  • Forklift pockets for handling
  • Central lifting eye
  • Noise level 86 dB(A)
  • Compliant with CE/EU directives for safety and noise levels

Technical Data

FuelDiesel
Output Voltage230/400V
Engine Speed1500 RPM
StartingElectric
Max Power 230V / 400V11 kVa / 33 kVa
Rated Power 230V / 400V10 kVa / 30 kVa
Generator TypeUltra Silent
Engine4 Stroke
PhaseSingle-phase/Three-phase
Autonomy / Eco Autonomy 50% Load17 h
Noise Level86 dB(A)
Tank Capacity110 L with liquid collection basin
Dimensions210 x 95 x 125 cm
Weight1035 kg
