Multipower MY40IS
Silenced Industrial Diesel Generator 42 kW
MPN: 10027
230/400V - 37.8 kW
4 cylinders
4-STROKE DIESEL
Warranty 2 years
Shipped on Pallet

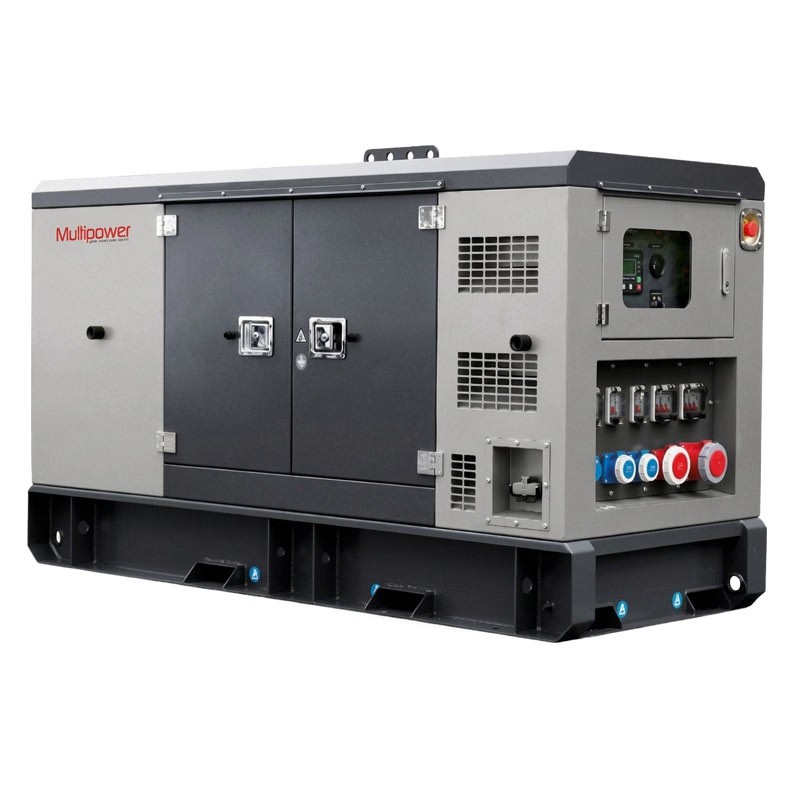

Multipower MY40IS - Silenced Industrial Diesel Generator 42 kW
Multipower MY40IS, industrial diesel generator for professional applications requiring reliability, operational continuity, and high performance.
FPT diesel engine, Mecc Alte brushless alternator with AVR regulation, water cooling, and electric start.
Continuous power of 38 kVA and emergency power of 42 kVA.
Super silenced canopy, 110 L tank, up to 16 h autonomy, and prepared for ATS panel.
For powering systems, construction sites, businesses, and industrial applications.
Functional Specifications
Professional diesel engine
The 2400 cc, 4-cylinder FPT diesel engine, water-cooled and operating at 1500 RPM, ensures high reliability, optimized consumption, and continuous operation even in the most demanding applications.
Mecc Alte brushless alternator
The Mecc Alte brushless alternator with AVR electronic regulation and Class H insulation ensures stable voltage, high quality of generated energy, and a starting capacity up to 3 times the nominal current, ideal for powering loads with high starting current.
Super silenced canopy
The galvanized sheet metal super silenced canopy reduces operating noise and protects the generator set from atmospheric agents. The stainless steel locks and hinges, along with beveled edges for water drainage, increase durability.
Reinforced structure for industrial use
The reinforced steel base protects the canopy and is designed to contain any liquid leaks. The system integrates a leak detection sensor, ensuring greater safety during operation.

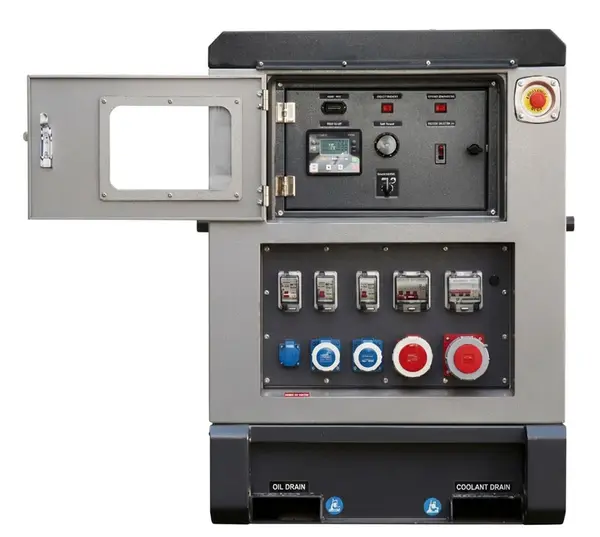

Advanced electronic control
The control panel with ComAp InteliNano AMF5 controller allows complete management of the industrial generator, with preparation for connection to an automatic ATS panel, emergency stop button, and monitoring of main operating functions.
Simplified maintenance
Large access doors, oil extraction pump, external dedicated points for oil, fuel, and coolant drainage, and an external refueling port with a lockable cap make maintenance operations quick and efficient.
Easy handling
Side pockets for a forklift and a central lifting eye allow for simple and safe handling during transport and installation.

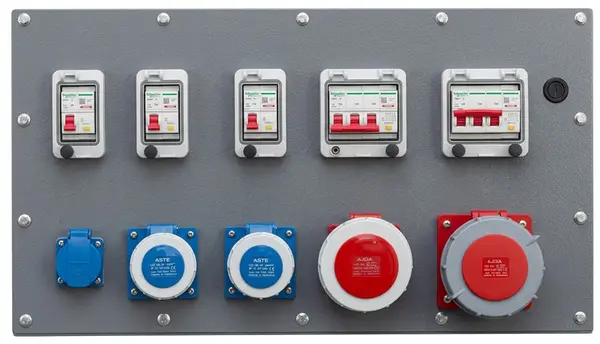

Digital control panel
The digital control panel PAD.40.1YIT features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- Main Circuit Breaker Q1
- Circuit breaker with differential for each socket (MCB+RCD Type A 30 mA)
- Power terminal block
- Output Sockets:
- 1x 400V 63 A 3P+N+T CEE IP67
- 1x 400V 32 A 3P+N+T CEE IP67
- 2x 230V 16 A 2P+T CEE IP67
- 1x 230V 16 A 2P+T Schuko
- Ground Terminal (PE)
Features
- Three-phase industrial diesel generator
- Super silenced
- Continuous power 12.6 kVA (230V) / 38 kVA (400V)
- Emergency power 14 kVA (230V) / 42 kVA (400V)
- Output voltage 230/400 V
- Nominal current 54.1 A
- FPT Engine R24MSNS01.40A01
- 4-cylinder diesel engine - 2400 cc - 1500 RPM
- Water cooling
- Electric start
- Mecc Alte brushless alternator ECP30 2L4C
- AVR electronic regulation
- Alternator insulation Class H
- Performance Class G2
- IP23 Protection Rating
- Starting capacity up to 3x In
- Tropicalized radiator
- Reinforced steel base
- Leak-proof base with liquid containment basin
- Liquid leak detection sensor
- 110 L fuel tank
- Up to 16 hours autonomy at 75% load
- External refueling port with lockable cap
- External caps for oil, fuel, and coolant drainage
- Large access doors for maintenance
- Galvanized sheet metal canopy
- Stainless steel locks and hinges
- Door with porthole for viewing the control panel
- ComAp InteliNano AMF5 controller
- Prepared for automatic ATS panel
- Sockets protected by circuit breakers and residual current devices
- Analog fuel level gauge
- Emergency stop button
- Oil extraction pump
- Water heater
- Exhaust manifold insulation band
- Muffler with flexible joint and rain cap
- 12 Vdc 60 Ah starting battery included
- Noise level 94 dB(A)
- Compliant with CE/EU directives for safety and noise levels
Technical Data
| Power Supply | Diesel |
| Output Voltage | 230/400V |
| Start-up | Electric |
| Max Power 230V / 400V | 14 kVa / 42 kVa |
| Rated Power 230V / 400V | 12.6 kVa / 38 kVa |
| Generator Type | Silenced |
| Engine | 4-Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 16 h |
| Noise Level | 94 dB(A) |
| Tank Capacity | 110 L - with liquid containment basin |
| Dimensions | 222 x 88 x 120 cm |
| Weight | 986 kg |
