Multipower MY40YSS
43 kW Silent Diesel Generator

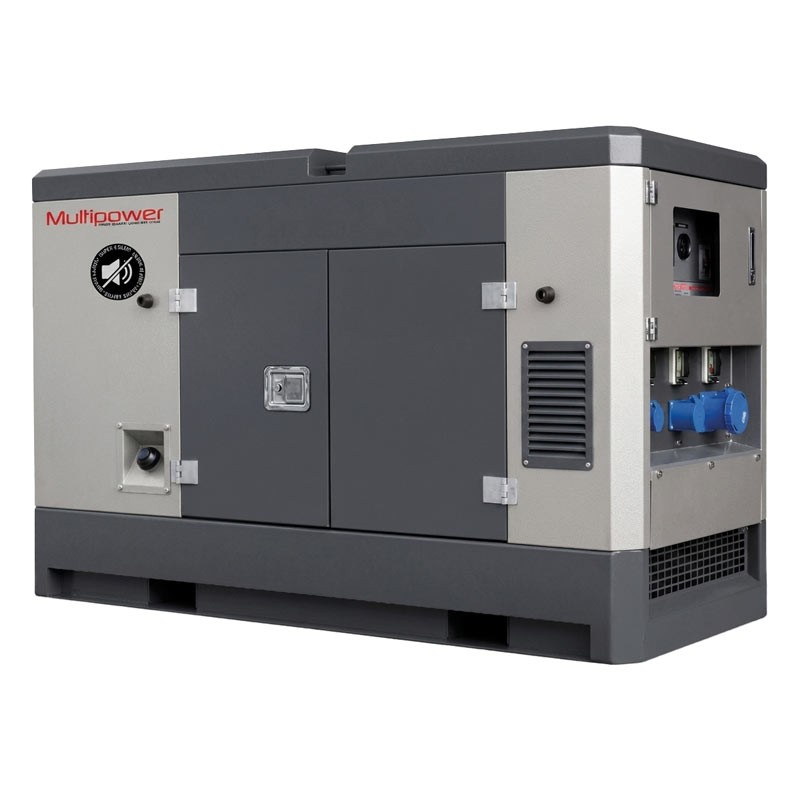

Multipower MY40YSS - 43 kW Silent Industrial Diesel Generator

Multipower MY40YSS, industrial diesel generator for reliable and continuous power supply in professional environments.

Water-cooled YTO Y4105D engine, brushless Mecc Alte alternator with AVR regulation, electric start, and ultra-silent canopy.

Continuous power of 39 kVA and emergency power of 43 kVA.

110 L tank, up to 16 hours of autonomy, reinforced construction, and complete equipment of control and safety systems.

Functional Specifications

Water-cooled diesel engine

The 4-cylinder YTO Y4105D diesel engine, with 4087 cc and 1500 RPM, ensures constant performance, high reliability, and continuous operation in the most demanding professional applications.

Mecc Alte brushless alternator

The Mecc Alte brushless alternator with AVR regulation and Class H insulation guarantees voltage stability, high quality of delivered energy, and a starting capacity up to 3 times the nominal current, ideal for powering inductive loads.

Ultra-silent cabin

The ultra-silent galvanized sheet metal canopy reduces acoustic impact and protects the generator set from atmospheric agents. The stainless steel locks and hinges, along with rounded edges and large access doors, simplify use and maintenance.

Professional control panel

The ComAp InteliNano AMF5 control panel allows complete management of the generator set and is prepared for ATS automatic transfer switch connection, facilitating integration into systems with automatic mains switching.

Easy maintenance

The generator integrates an oil extraction pump, dedicated external drain points for oil, fuel, and coolant, as well as an external refill port with a lockable cap, reducing maintenance time and costs.

Reinforced structure for industrial use

The reinforced steel base protects the canopy and is equipped with a liquid collection basin and leak detection sensor. Forklift pockets and a central lifting eye facilitate handling operations.

Operational protection and safety

The distribution sockets are individually protected by magnetic-thermal and differential circuit breakers. The unit also includes an emergency stop button, water heater, exhaust manifold insulating wrap, and a rain-shielded muffler, complying with CE/EU directives on noise and safety.

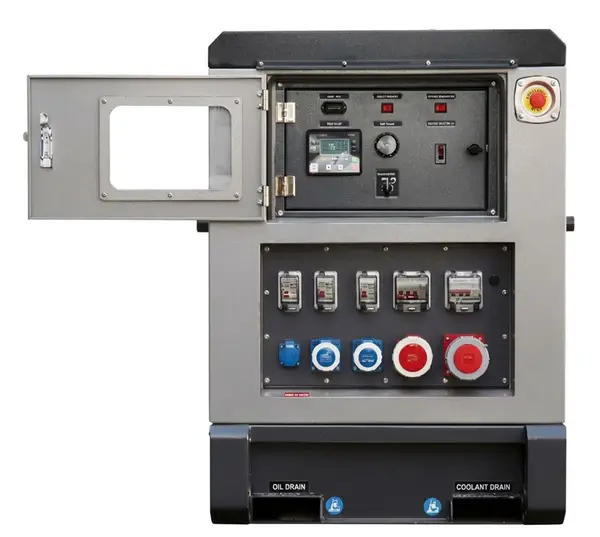

Digital control panel

The digital control panel PAD.40.1YIT features:

• IntelliNano AMF5 Controller
• ON/OFF Selector
• Panel Light
• Panel Light Switch
• Internal Light Switch
• General Magnetic-Thermal Circuit Breaker Q1
• Magnetic-Thermal Circuit Breaker with Differential for each socket (MCB+RCD Type A 30 mA)
• Power Terminal Block

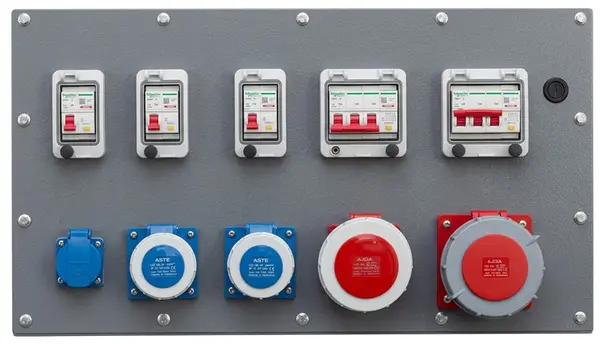

• Output Sockets:
  • 1x 400V 63 A 3P+N+T CEE IP67
  • 1x 400V 32 A 3P+N+T CEE IP67
  • 2x 230V 16 A 2P+T CEE IP67
  • 1x 230V 16 A 2P+T Schuko
• Ground Terminal (PE)

Features

• Three-phase industrial diesel generator
• YTO Y4105D 4-cylinder engine, 4087 cc
• Water cooling
• Electric start
• Continuous power 13 kVA (230V) / 39 kVA (400V)
• Emergency power 14.3 kVA (230V) / 43 kVA (400V)
• Output voltage 230/400 V
• Rated current 55.9 A
• Mecc Alte brushless alternator ECP30 2L4C
• Automatic Voltage Regulation (AVR)
• Alternator insulation Class H
• Performance Class G2
• IP23 Protection Rating
• Starting capacity up to 3xIn
• Ultra-silent canopy
• Noise level 87 dB(A)
• 110 L fuel tank with liquid collection basin
• Autonomy up to 16 hours at 75% load
• ComAp InteliNano AMF5 control panel
• Prepared for ATS automatic transfer switch
• Oil extraction pump
• Liquid leak detection sensor
• Tropicalized radiator
• Reinforced steel base
• Forklift pockets for handling
• Central lifting eye
• Large access doors for maintenance
• Compliant with CE/EU directives for noise and safety
