Multipower MY30YSS
Silenced Industrial Diesel Generator 33 kW
MPN: 10022
230/400V - 29.7 kW
4 cylinders
4-STROKE DIESEL
Warranty 2 years
Shipped on Pallet

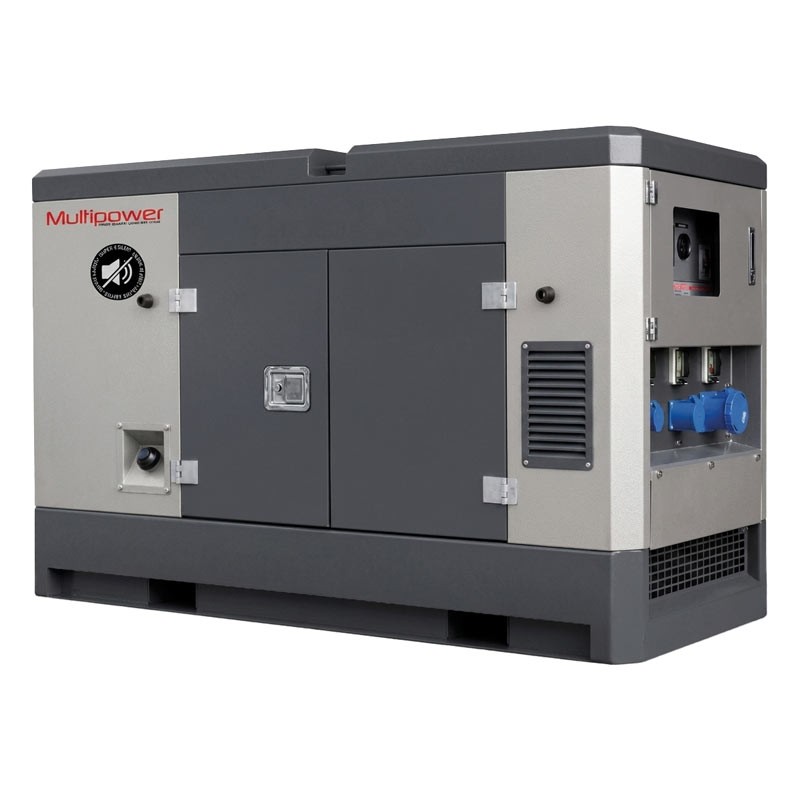

Multipower MY30YSS - Silenced Industrial Diesel Generator 33 kW
Multipower MY30YSS, industrial diesel generator for professional applications requiring continuity of service, reliability, and high performance.
Water-cooled YTO Y4100D engine, brushless Mecc Alte alternator with AVR regulation and electric start.
Continuous power of 30 kVA and emergency power of 33 kVA.
Ultra-silenced canopy, 110 L tank with autonomy up to 19 h and ComAp InteliNano AMF5 control panel.
For industrial use, construction sites, businesses, and installations where high performance and ease of management are required.
Functional Specifications
Professional Three-Phase Diesel Generator
The generating set provides 230/400 V power with continuous three-phase power up to 30 kVA, ensuring reliability in professional and industrial applications.
Water-Cooled Diesel Engine
The 4-cylinder YTO Y4100D engine, 3707 cc and 1500 RPM, ensures continuous operation, high operational life, and performance stability thanks to water cooling.
Mecc Alte Brushless Alternator
The Mecc Alte ECP30 3M4C brushless alternator with AVR regulation, class H insulation, and high starting capacity up to 3xIn guarantees stable voltage even during the startup of demanding loads.
Ultra-Silenced Cabin
The ultra-silenced galvanized sheet metal canopy reduces noise levels up to 87 dB(A) and is designed with stainless steel locks and hinges, rounded edges, door stays, and large openings to facilitate maintenance and accessibility.
Reinforced Industrial Structure
The reinforced steel base frame protects the entire machine, integrates a liquid containment basin with a leak detection sensor, and is equipped with forklift pockets and a central lifting eye for quick and safe handling.
High Autonomy
The 110 L fuel tank allows for autonomy up to 19 h at 75% load, with a practical external filler neck equipped with a lockable cap.
Simplified Maintenance
Large access doors, external points for draining oil, fuel, and coolant, and the oil extraction pump reduce routine maintenance time.

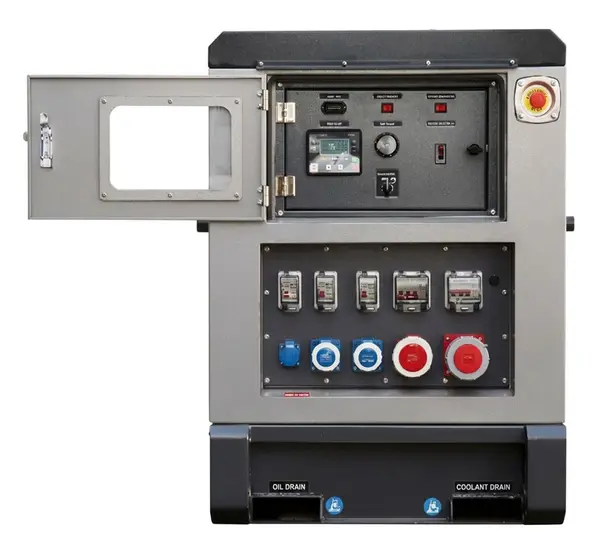

ComAp Control Panel
The ComAp InteliNano AMF5 control panel offers complete management of the generating set, preparation for ATS panel connection, sockets protected by circuit breakers and residual current devices, emergency stop button, analog fuel level indicator, and a door with a window for panel monitoring.
Complete Equipment
The generator is supplied with a starter battery, water heater, insulating wrap on the exhaust manifold, muffler with flexible joint and rain cap, complying with CE/EU directives on safety and noise levels.
Digital Control Panel
The PAD.30.1YIT digital control panel features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- Main Circuit Breaker Q1
- Circuit breaker with residual current device for each socket (MCB+RCD Type A 30 mA)
- Power terminal block
- Output Sockets:
- 1x 400V 63 A 3P+N+E CEE IP67
- 1x 400V 32 A 3P+N+E CEE IP67
- 2x 230V 16 A 2P+E CEE IP67
- 1x 230V 16 A 2P+E Schuko
- Ground Terminal (PE)
Features
- Industrial diesel generator
- Three-phase power supply 230/400 V
- Continuous power 10 kVA (230 V) / 30 kVA (400 V)
- Emergency power 11 kVA (230 V) / 33 kVA (400 V)
- YTO Y4100D diesel engine
- 4 cylinders - 3707 cc - 1500 RPM
- Water cooling
- Electric start
- Mecc Alte ECP30 3M4C brushless alternator
- Electronic AVR regulation
- Alternator insulation class H
- High starting capacity up to 3xIn
- Performance class G2
- IP23 protection rating
- Noise level 87 dB(A)
- 110 L fuel tank
- Autonomy up to 19 h at 75% load
- Reinforced base frame with liquid containment basin
- Liquid leak detection sensor
- External filler neck with lockable cap
- Oil extraction pump
- Tropicalized radiator
- Ultra-silenced galvanized sheet metal canopy
- Stainless steel locks and hinges
- Forklift pockets
- Central lifting eye
- ComAp InteliNano AMF5 control panel
- Preparation for ATS panel connection
- Sockets protected by circuit breakers and residual current devices
- Emergency stop button
- Starter battery included
- Compliant with CE/EU directives
Technical Data
| Power Source | Diesel |
| Output Voltage | 230/400V |
| Starting | Electric |
| Max Power 230V / 400V | 11 kVa / 33 kVa |
| Rated Power 230V / 400V | 10 kVa / 30 kVa |
| Generator Type | Silenced |
| Engine | 4-Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 19 h |
| Noise Level | 87 dB(A) |
| Tank Capacity | 110 L - with liquid collection basin |
| Dimensions | 210 x 95 x 125 cm |
| Weight | 1129 kg |
