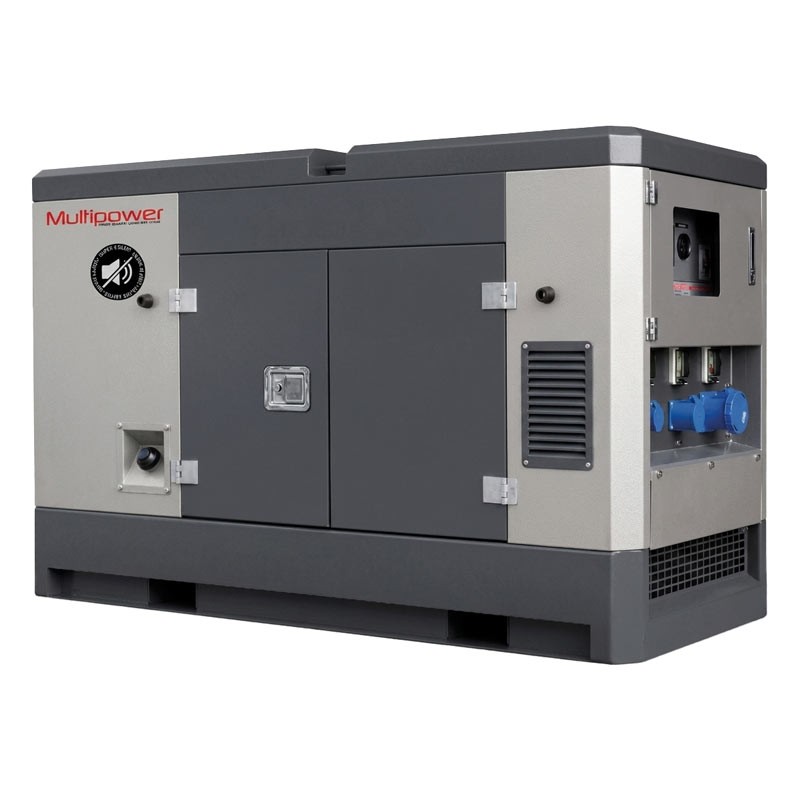

Multipower MY25YSS
Silenced Industrial Diesel Generator 28 kW

Multipower MY25YSS - Silenced Industrial Diesel Generator 28 kW

Multipower MY25YSS industrial diesel generator with three-phase output voltage for industrial applications, construction sites, and production plants.

Water-cooled YTO YSD495D diesel engine, Mecc Alte brushless alternator with AVR regulation, electric start, and ComAp InteliNano AMF5 control unit.

Continuous power of 25 kVA and emergency power of 28 kVA.

Ultra-silenced canopy, 80 L tank with up to 13 h autonomy, and reinforced structure for intensive use in professional environments.

Functional Specifications

Water-cooled industrial diesel engine

The 4-cylinder YTO YSD495D diesel engine with 2977 cc, operating at 1500 RPM with mechanical speed regulation, ensures reliability, low fuel consumption, and continuous operation even in the most demanding applications.

Brushless alternator with AVR regulation

The Mecc Alte brushless alternator with AVR regulation and Class H insulation guarantees stable voltage, high reliability, and a starting capacity up to 3 times the nominal current, ideal for powering loads with high starting current requirements.

Professional ultra-silenced cabin

The ultra-silenced galvanized sheet metal canopy, with stainless steel locks and hinges, reduces noise levels up to 85 dB(A) and effectively protects the generator set from atmospheric agents and wear.

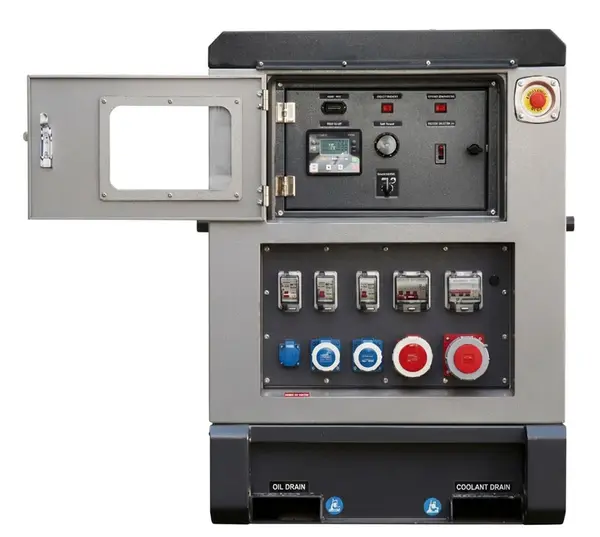

Complete ComAp control panel

The control panel with ComAp InteliNano AMF5 controller allows complete monitoring of the generator set and is prepared for connection to an automatic ATS panel, facilitating integration into systems with automatic start-up.

Simplified maintenance

Large access doors, external oil, fuel, and coolant drain plugs, oil extraction pump, and external key-locked refueling port allow for quick and safe interventions.

Reinforced structure for industrial use

The reinforced steel base with liquid collection basin, leak detection sensor, forklift pockets, and central lifting eye ensures safety during transport and reliability in permanent or mobile installations.

High autonomy

The 80 L tank allows for up to 13 h autonomy at 75% load, reducing downtime and refueling interventions during continuous use.

Digital control panel

The digital control panel PAD.25.1YIT features:

• IntelliNano AMF5 Controller
• ON/OFF Selector
• Panel Light
• Panel Light Switch
• Internal Light Switch
• Main circuit breaker Q1
• Circuit breaker with RCD for each socket (MCB+RCD Type A 30 mA)
• Power terminal block
• Output sockets:
  • 1x 400V 63 A 3P+N+T CEE IP67
  • 1x 400V 32 A 3P+N+T CEE IP67
  • 2x 230V 16 A 2P+T CEE IP67
  • 1x 230V 16 A 2P+T Schuko
• Ground terminal (PE)

Features

• Professional industrial diesel generator
• Three-phase power supply 230/400 V
• Continuous power 8.3 kVA (230V) / 25 kVA (400V)
• Emergency power 9.3 kVA (230V) / 28 kVA (400V)
• Continuous power
• Emergency power
• YTO YSD495D 4-cylinder diesel engine, 2977 cc
• Water cooling
• Electric start
• Mecc Alte brushless alternator
• Automatic voltage regulation AVR
• Alternator insulation Class H
• Starting capacity up to 3xIn
• ComAp InteliNano AMF5 controller
• Prepared for ATS automatic panel
• Sockets protected by circuit breakers and RCDs
• Noise level 85 dB(A)
• 80 L fuel tank
• Up to 13 h autonomy at 75% load
• Leak-proof base with liquid collection basin
• Liquid leak detection sensor
• Oil extraction pump
• Tropicalized radiator
• Water heater
• Ultra-silenced galvanized sheet metal canopy
• Stainless steel locks and hinges
• Central lifting eye
• Forklift pockets
• IP23 protection rating
• Performance class G2
• Compliant with CE/EU directives on noise and safety
