Multipower MY20YSS
Silenced Industrial Diesel Generator 22 kW
MPN: 10018
230/400V - 19.8 kW
4 cylinders
4-STROKE DIESEL
Warranty 2 years
Shipped on Pallet

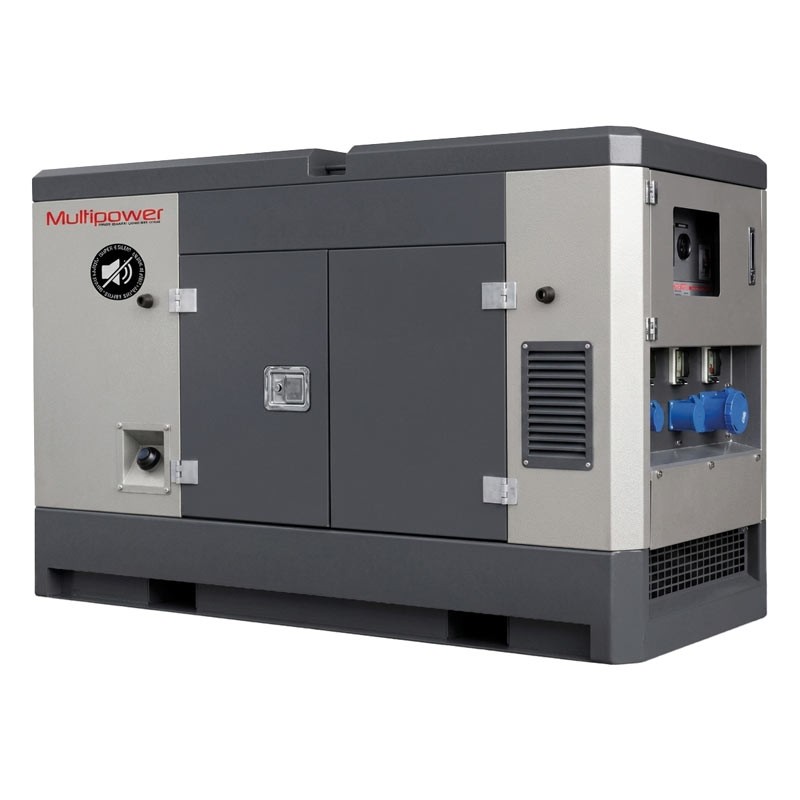

Multipower MY20YSS - Silenced Industrial Diesel Generator 22 kW
Multipower MY20YSS, industrial diesel generator for reliable power supply in professional and industrial applications.
YTO YSD490D engine, Mecc Alte brushless alternator with AVR regulation, electric start, and water cooling.
Continuous power of 20 kVA (400V) and emergency power of 22 kVA.
Ultra-silenced canopy, 80 L tank, autonomy up to 19.7 h at 75% load, and control panel with ComAp InteliNano AMF5 controller.
For continuous use on construction sites, industrial plants, and professional applications.
Functional Specifications
Industrial diesel engine
The 4-cylinder YTO YSD490D diesel engine, 2540 cc, and 1500 RPM ensures constant performance, operational reliability, and optimized consumption. The water cooling system with a tropicalized radiator ensures correct operation even in harsh environmental conditions.
Mecc Alte brushless alternator
The Mecc Alte ECP28 M4C brushless alternator with automatic AVR regulation and Class H insulation offers high voltage stability and a significant starting capacity up to 3 times the nominal current, making it suitable for powering demanding loads.

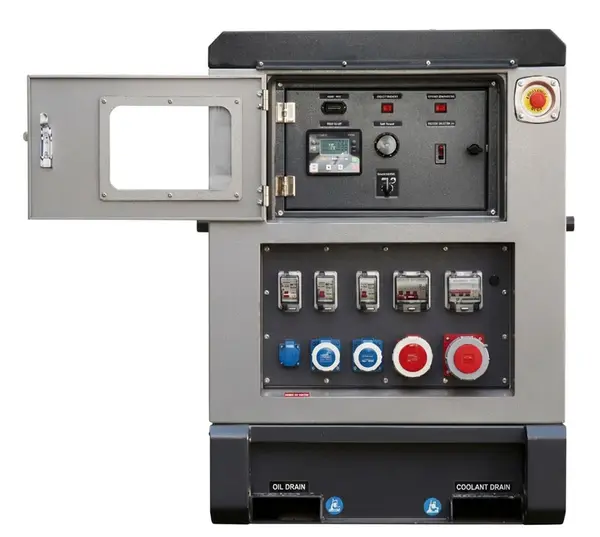

Professional control panel
The generator set integrates a complete ComAp InteliNano AMF5 control panel, ready for connection to an automatic ATS panel, with an analog fuel level gauge, emergency stop button, and distribution sockets protected by magnetic-thermal and differential circuit breakers.
Reinforced structure and simplified maintenance
The reinforced steel base frame protects the canopy and is designed to contain any liquid leaks, which are monitored by a dedicated sensor. Large access doors, dedicated external drainage points, and an oil extraction pump facilitate all routine maintenance operations.
Ultra-silenced canopy
The galvanized sheet metal canopy with stainless steel locks and hinges ensures high resistance to atmospheric agents. The beveled-edge cabin promotes rainwater runoff, while the door with a porthole allows for instrument panel checks without opening the machine.
Autonomy and fuel management
The 80 L tank with a liquid containment basin ensures autonomy of up to 19.7 h at 75% load. The external filler neck with a lockable cap makes refueling quick and safe.
Handling and safety
Side pockets for forklift access and a central lifting eye facilitate the handling of the generator set. The machine is supplied complete with a starter battery, water heater, exhaust manifold insulation band, and complies with CE/EU directives on safety and noise levels.

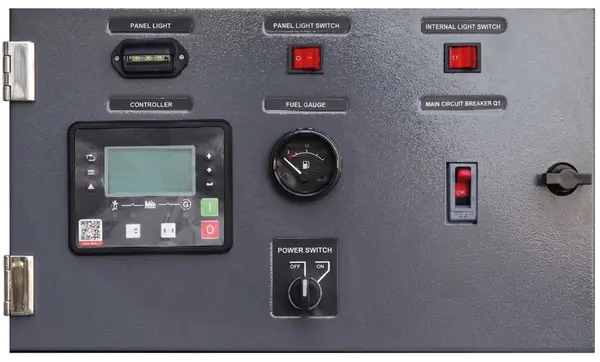

Digital control panel
The digital control panel PAD.20.1YIT features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- Main circuit breaker Q1
- Circuit breaker with differential for each socket (MCB+RCD type A 30 mA)
- Power terminal block
- Output sockets:
- 1x 400V 32 A 3P+N+T CEE IP67
- 1x 400V 16 A 3P+N+T CEE IP67
- 2x 230V 16 A 2P+T CEE IP67
- 1x 230V 16 A 2P+T Schuko
- Ground terminal (PE)
Features
- Professional industrial diesel generator
- Three-phase generator set 230/400 V
- Continuous power 6.6 kVA (230V) / 20 kVA (400V)
- Emergency power 7.3 kVA (230V) / 22 kVA (400V)
- YTO YSD490D 4-cylinder diesel engine, 2540 cc
- Water cooling with tropicalized radiators
- Electric start
- Mecc Alte ECP28 M4C brushless alternator
- Automatic AVR regulation
- Class H alternator insulation
- Starting capacity up to 3x In
- Nominal current 28.9 A
- Performance class G2
- IP23 protection rating
- Ultra-silenced canopy
- Noise level 85 dB(A)
- Reinforced steel base frame with liquid containment
- Liquid leak detection sensor
- 80 L fuel tank with containment basin
- Autonomy up to 19.7 h at 75% load
- External filler neck with lockable cap
- External caps for oil, fuel, and coolant drainage
- Oil extraction pump
- Control panel with ComAp InteliNano AMF5 controller
- ATS panel connection provision
- Sockets protected by magnetic-thermal and differential breakers
- Analog fuel level gauge
- Emergency stop button
- Water heater
- Muffler with flexible joint and rain cap
- Forklift pockets and central lifting eye
- Compliant with CE/EU directives for noise and safety
Technical Data
| Power Supply | Diesel |
| Output Voltage | 230/400V |
| Starting | Electric |
| Max Power 230V / 400V | 7.3 kVa / 22 kVa |
| Rated Power 230V / 400V | 6.6 kVa / 20 kVa |
| Generator Type | Silenced |
| Engine | 4-Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 19.7 h |
| Noise Level | 85 dB(A) |
| Tank Capacity | 80 L - with liquid containment basin |
| Dimensions | 180 x 85 x 125 cm |
| Weight | 935 kg |
