Multipower MY40YS
Silenced Industrial Diesel Generator 43 kW
MPN: 10023
230/400V - 38.7 kW
4 cylinders
4-STROKE DIESEL
Warranty 2 years
Shipped on Pallet

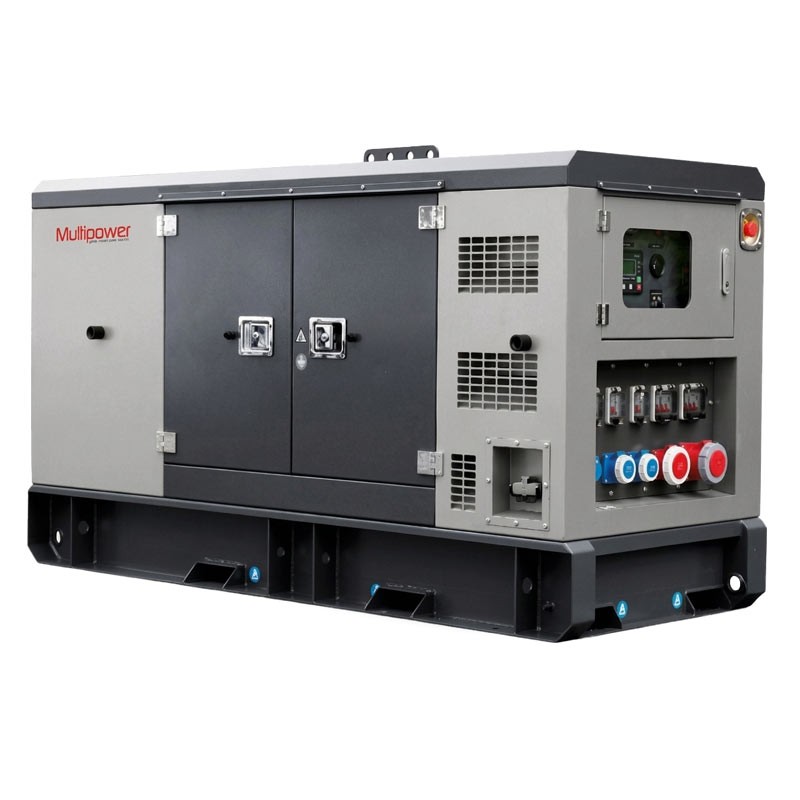

Multipower MY40YS - Silenced Industrial Diesel Generator 43 kW
Multipower MY40YS, industrial diesel generator for reliable and continuous power supply in professional settings.
YTO Y4105D engine, water cooling, electric start, and Mecc Alte brushless alternator with AVR regulation.
Continuous power of 39 kVA and emergency power of 43 kVA at 400V.
Super silenced canopy, 110 L tank with up to 16 h autonomy at 75% load and control panel with ComAp InteliNano AMF5 controller.
Functional Specifications
Professional three-phase diesel generator
The three-phase diesel generator delivers 230/400 V voltage with a continuous power of 13 kVA single-phase and 39 kVA three-phase, ensuring stable power for industrial and professional users.
Water-cooled diesel engine
The 4-cylinder YTO Y4105D engine, 4087 cc and 1500 RPM, ensures high reliability, long life, and consistent performance even during prolonged use.
Mecc Alte brushless AVR alternator
The Mecc Alte ECP30 2L4C brushless alternator with AVR regulation and Class H insulation guarantees stable voltage and high starting capacity up to 3 times the nominal current, ideal for inductive loads.
Super silenced cabin
The galvanized sheet metal super silenced canopy reduces noise level to 95 dB(A) and is designed to withstand atmospheric agents thanks to rounded edges, stainless steel locks and hinges, and integrated door holders.

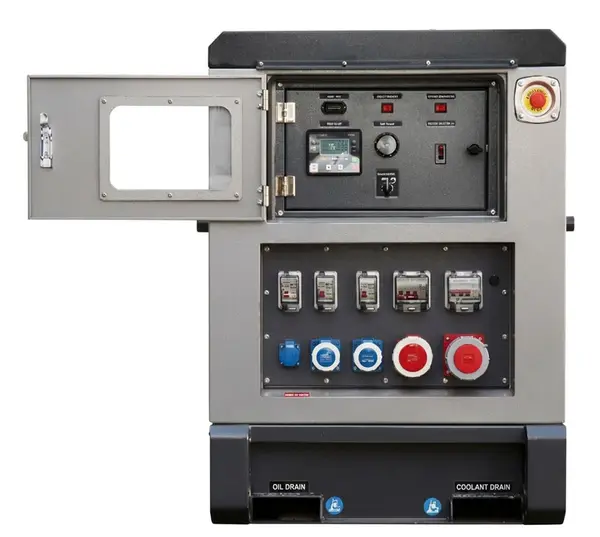

ComAp Control Panel
The generator set integrates a ComAp InteliNano AMF5 control panel complete with ATS panel predisposition, analog fuel level gauge, emergency button, and monitoring of main operating functions.
Easy Maintenance
Large access doors, external plugs for oil, fuel, and coolant drainage, the oil extraction pump, and the liquid leak detection sensor simplify routine maintenance operations.
Reinforced Industrial Structure
The reinforced steel base protects the canopy and is leak-proof for containing any spills. It also features side pockets for forklift handling, a central lifting hook, and an oversized tank with a lockable external filler cap.
Complete Standard Equipment
The generator is supplied with a 12 V 60 Ah starting battery, water heater, insulating band on the exhaust manifold, muffler with flexible joint, and rain cover. Sockets are protected by magnetic-thermal and differential circuit breakers, and it is compliant with CE/EU directives regarding safety and noise levels.

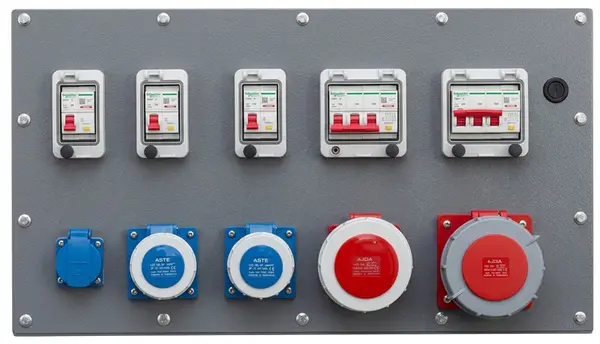

Digital Control Panel
The digital control panel PAD.40.1YIT features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- Main Magnetic-Thermal Circuit Breaker Q1
- Magnetic-Thermal Circuit Breaker with RCD for each socket (MCB+RCD type A 30 mA)
- Power Terminal Block
- Output Sockets:
- 1x 400V 63 A 3P+N+T CEE IP67
- 1x 400V 32 A 3P+N+T CEE IP67
- 2x 230V 16 A 2P+T CEE IP67
- 1x 230V 16 A 2P+T Schuko
- Ground Terminal (PE)
Features
- Industrial diesel generator
- Three-phase generator set
- Super silenced
- Electric start
- Water cooling
- YTO Y4105D 4-cylinder engine, 4087 cc
- Mecc Alte ECP30 2L4C brushless alternator
- AVR electronic regulation
- Class H alternator insulation
- High starting capacity 3x In
- Continuous power 13 kVA (230V) / 39 kVA (400V)
- Emergency power 14.3 kVA (230V) / 43 kVA (400V)
- Output voltage 230/400 V
- Nominal current 55.9 A
- Performance class G2
- IP23 protection rating
- Noise level 95 dB(A)
- Fuel tank capacity 110 L
- Autonomy up to 16 h at 75% load
- Reinforced steel base
- Leak-proof base with liquid collection tray
- Liquid leak detection sensor
- External fuel filler with lockable cap
- External plugs for oil, fuel, and coolant drainage
- Forklift handling pockets
- Central lifting hook
- Galvanized sheet metal canopy
- Stainless steel locks and hinges
- Doors with door holders and control panel window
- ComAp InteliNano AMF5 control panel
- ATS connection predisposition
- Sockets protected by magnetic-thermal and differential circuit breakers
- Emergency button
- Oil extraction pump
- Water heater
- Exhaust manifold insulating band
- Muffler with flexible joint and rain cover
- 12 V 60 Ah starting battery included
- Compliant with CE/EU directives for safety and noise levels
Technical Data
| Fuel | Diesel |
| Output Voltage | 230/400V |
| Start | Electric |
| Max Power 230V / 400V | 14.3 kVa / 43 kVa |
| Rated Power 230V / 400V | 13 kVa / 39 kVa |
| Generator Type | Silenced |
| Engine | 4-Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 16 h |
| Noise Level | 95 dB(A) |
| Tank Capacity | 110 L - with liquid collection tray |
| Dimensions | 222 x 88 x 120 cm |
| Weight | 1031 kg |
