Multipower MY30YS
Silenced Industrial Diesel Generator 33 kW
MPN: 10021
230/400V - 29.7 kW
4 cylinders
4-STROKE DIESEL
Warranty 2 years
Shipped on Pallet

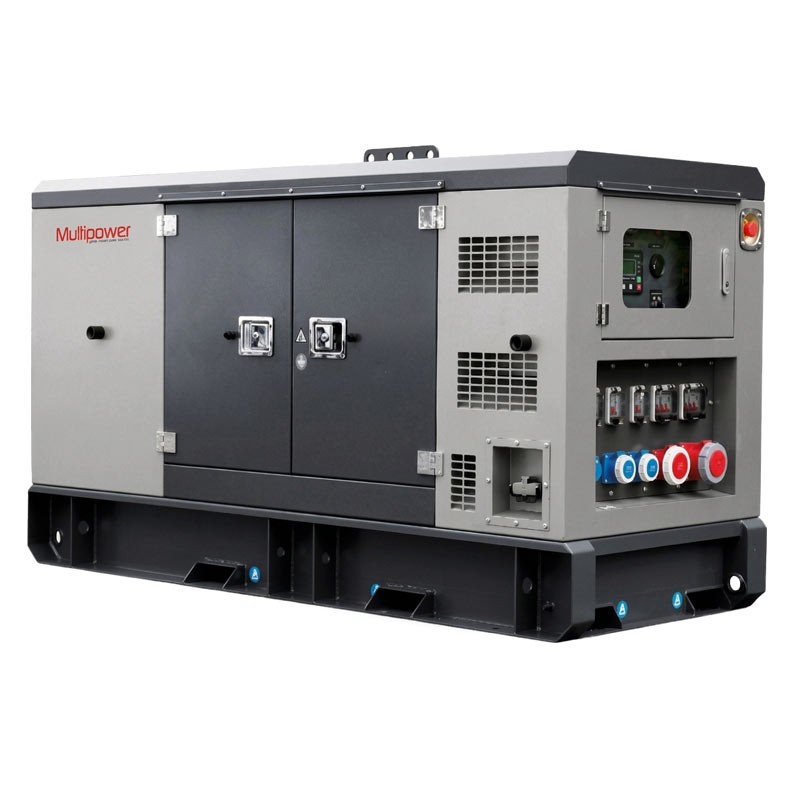

Multipower MY30YS - Silenced Industrial Diesel Generator 33 kW
Multipower MY30YS, three-phase industrial diesel generator for reliable power supply in professional and industrial applications.
Water-cooled YTO Y4100D engine, Mecc Alte brushless alternator with AVR regulation, electric start, and super-silenced canopy.
Continuous power 30 kVA three-phase (400V) and 33 kVA in emergency, autonomy up to 19 h at 75% load and 110 L tank.
Reinforced structure, ComAp InteliNano AMF5 control panel, and provision for ATS panel.
For plants, construction sites, production activities, and professional applications requiring operational continuity.
Functional Specifications
Professional three-phase diesel generator
The three-phase diesel generator delivers an output voltage of 230/400 V, with 30 kVA continuous power and 33 kVA emergency power, offering reliable performance for powering industrial and professional loads.
Water-cooled diesel engine
The YTO Y4100D engine, with 4 cylinders, 3707 cc, and 1500 RPM, is water-cooled and equipped with mechanical speed regulation, ensuring reliability, operational continuity, and long service life.
Mecc Alte brushless alternator
The Mecc Alte brushless alternator with AVR regulation and Class H insulation ensures stable voltage, high reliability, and a starting capacity up to 3 times the nominal current.
Super-silenced canopy
The super-silenced galvanized sheet metal canopy reduces noise and protects all components. Stainless steel locks and hinges, doors with retainers, and rounded edges enhance durability and practicality for outdoor installations.
ComAp Control Panel
The control panel integrates the ComAp InteliNano AMF5 controller, prepared for connection to an automatic ATS panel, with an emergency stop button, analog fuel level indicator, and an easily accessible control panel via a porthole.
Easy Maintenance
Large access doors, an oil extraction pump, dedicated external drain plugs for liquids, and an external refueling port with a lockable cap allow for quick and safe interventions.
Reinforced Structure for Industrial Use
The reinforced steel base protects the machine and is designed to contain any liquid spills. The leak detection sensor, forklift pockets, and central lifting eye facilitate transport and handling.

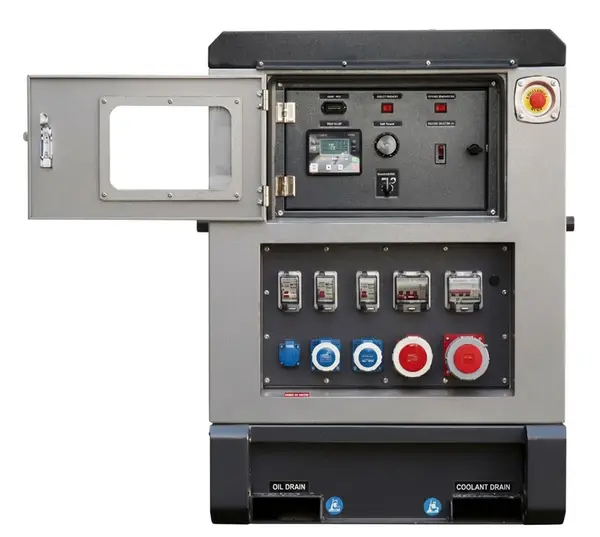

Digital Control Panel

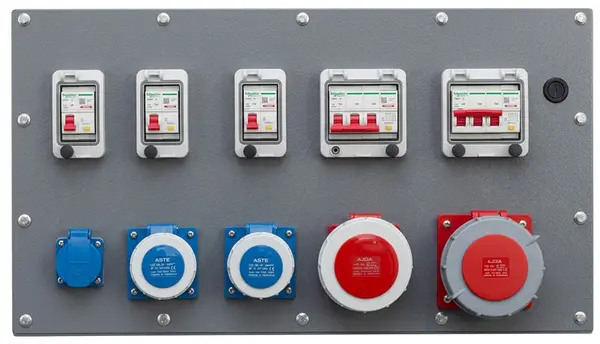

The digital control panel PAD.30.1YIT features:
- IntelliNano AMF5 Controller
- ON/OFF Selector
- Panel Light
- Panel Light Switch
- Internal Light Switch
- General circuit breaker Q1
- Circuit breaker with RCD for each socket (MCB+RCD Type A 30 mA)
- Power terminal block
- Output Sockets:
- 1x 400V 63 A 3P+N+T CEE IP67
- 1x 400V 32 A 3P+N+T CEE IP67
- 2x 230V 16 A 2P+T CEE IP67
- 1x 230V 16 A 2P+T Schuko
- Ground terminal (PE)
Features
- Professional industrial diesel generator
- Model Multipower MY30YS
- Diesel powered
- Output voltage 230/400 V
- Continuous power 10 kVA (230V) / 30 kVA (400V)
- Emergency power 11 kVA (230V) / 33 kVA (400V)
- Nominal current 43.3 A
- Engine YTO Y4100D
- 4-cylinder diesel engine, 3707 cc
- Water cooling
- Engine speed 1500 RPM
- Electric start
- Mecc Alte ECP30 3M4C brushless alternator
- Electronic AVR regulation
- Alternator insulation Class H
- Starting capacity up to 3xIn
- Performance class G2
- IP23 protection rating
- Super-silenced canopy
- Noise level 95 dB(A)
- 110 L fuel tank with liquid containment basin
- Autonomy up to 19 h at 75% load
- Tropicalized radiator
- Reinforced steel base
- Liquid leak detection sensor
- External refueling port with key lock
- External plugs for oil, fuel, and coolant drainage
- Large maintenance doors
- Stainless steel locks and hinges
- Doors with retainers
- Central lifting eye
- Side pockets for forklift handling
- ComAp InteliNano AMF5 control panel
- Provision for ATS panel
- Sockets protected by circuit breakers and RCDs
- Analog fuel level indicator
- Emergency stop button
- Oil extraction pump
- Water heater
- Insulating band on exhaust manifold
- Muffler with flexible joint and rain cap
- 12 Vdc 60 Ah starting battery included
- Compliant with CE/EU directives for noise and safety
Technical Data
| Power Supply | Diesel |
| Output Voltage | 230/400V |
| Starting | Electric |
| Max Power 230V / 400V | 11 kVa / 33 kVa |
| Rated Power 230V / 400V | 10 kVa / 30 kVa |
| Generator Type | Silenced |
| Engine | 4-Stroke |
| Phase | Single-phase/Three-phase |
| Autonomy / Eco Autonomy 50% Load | 19 h |
| Noise Level | 95 dB(A) |
| Tank Capacity | 110 L - with liquid containment basin |
| Dimensions | 222 x 88 x 120 cm |
| Weight | 1018 kg |
