Tecnogen H8000LX
Generator
with Honda GX390 Engine
MPN: H8000LX
400V - 7.2 kW
389 cc - 13 HP
Honda Petrol Engine

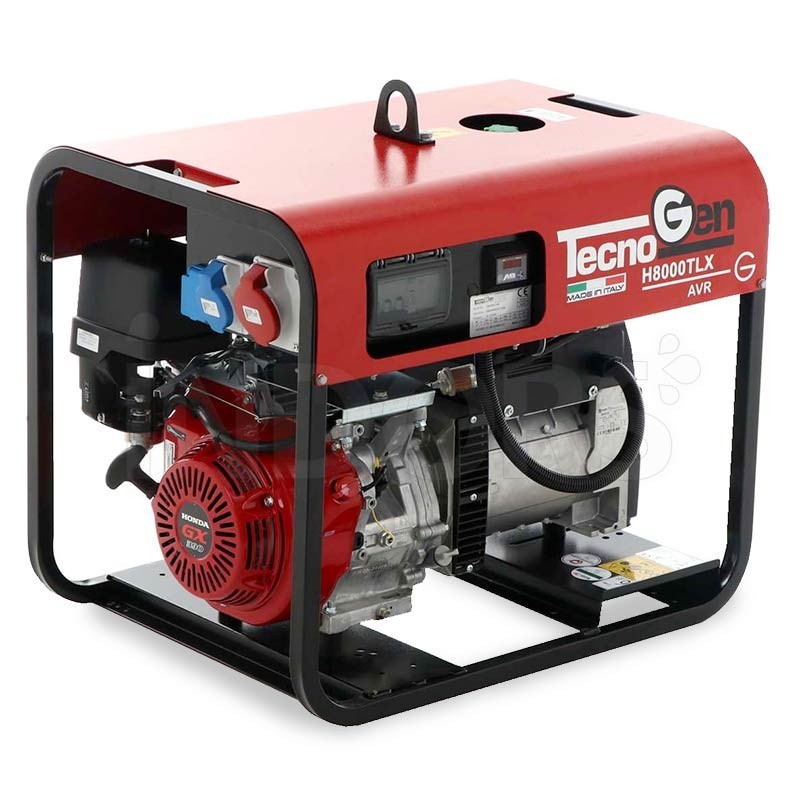

Tecnogen H8000ELX - Generator with Honda GX390 Engine
The Tecnogen H8000LX professional petrol generator from the Compact series is designed for industrial and construction site applications where continuous energy reliability is required. Equipped with a Honda GX390 engine , it delivers up to 7.2 kVA (5.8 kW max) in a 230V single-phase generator configuration, operating at 3000 RPM and with the option of AVR voltage regulation. It is a compact, high-performance solution for professional power supplies in mobile or emergency contexts.
TECHNICAL SPECIFICATIONS
The system is powered by a 389 cm³ Honda GX390 petrol engine, with manual start and a fixed speed of 3000 RPM . The 230V single-phase generator integrates a 20 L tank with an average consumption of 1.9 L/h at 75% load , ensuring good operating autonomy. The maximum power is 7.2 kVA / 5.8 kW. The unit includes thermal protection , oil level control , sockets with magnetothermal protection and an anti-vibration system on a tubular frame.
FUNCTIONAL SPECIFICATIONS
Honda GX390 professional engine
The Honda GX390 OHV engine ensures efficient combustion, low fuel consumption and high operational reliability, with a CDI system for stable power delivery and reduced emissions.
Optional AVR voltage regulation
The AVR provision allows for stabilization of the output voltage, making the Tecnogen H8000LX generator suitable for powering sensitive loads.
Integrated structure and protections
The tubular frame with thermal protections and low oil level control guarantees operational safety and mechanical resistance under intensive use.
Anti-vibration system
Anti-vibration mounts reduce vibrations in professional petrol generators, improving stability, component life and operating comfort.
Characteristics
- Professional petrol generator
- 230V single-phase generator set
- Maximum power 7.2 kVA / 5.8 kW
- Honda GX390 single-cylinder OHV 389 cm³ engine
- Engine speed 3000 RPM
- Manual start had wraparound
- Fuel consumption 1.9 L/h at 75% load
- 20 L petrol tank
- Low engine oil level protection system
- Thermal or magnetothermal protection on sockets
- Tubular frame with anti-vibration supports
- Integrated exhaust silencer
- AVR regulator provision on request
- Industrial assembly made in Italy
Technical Data
| Power Supply | Gas |
| Motor | Honda GX390 |
| Start-up | Manual |
| Displacement | 389 cc |
| Output Voltage | 230V - Single Phase |
| Max Output Power | 7.2 kVA - 5.8 kW cos φ 1 |
| Engine Power | 13 HP |
| Consumption at 75% | 1.9 L/h |
| Tank Capacity | 20 L |
| Dimensions | 75 x 56 x 62 cm |
| Weight | 88 kg |
