Tecnogen LD7500ESX
Electric Start Generator with ATS

Tecnogen LD7500ESX - Electric Start Generator with ATS

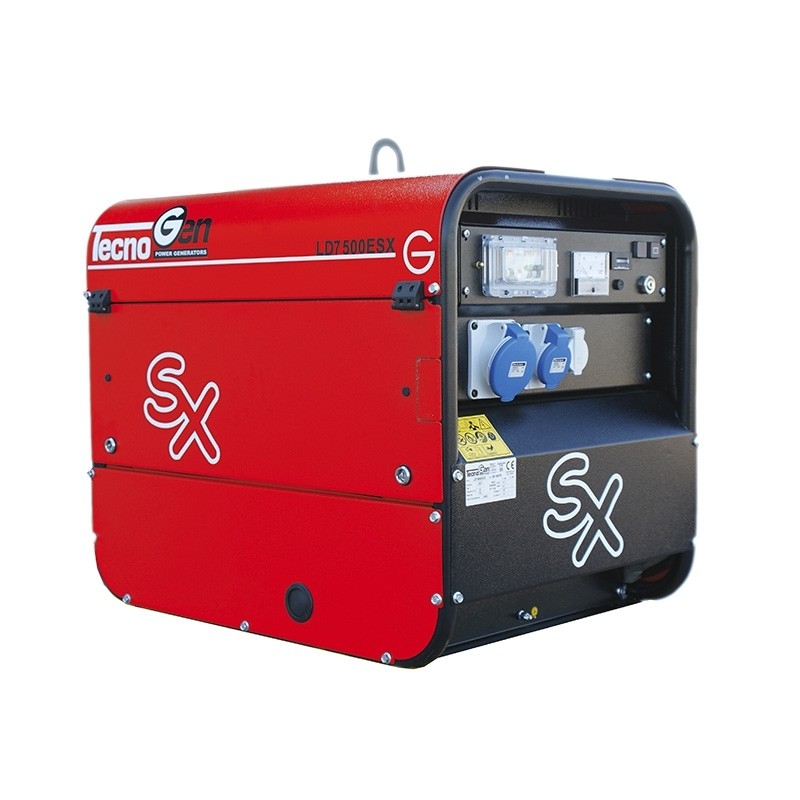

The Tecnogen LD7500ESX is a professional, silenced diesel generator designed for industrial and construction site applications requiring continuous power and operational reliability. Equipped with a Lombardini-Kohler 15LD440 single-cylinder, 442 cm³ engine, it delivers up to 6.4 kVA in single-phase 230V with electric start and a compact, soundproofed structure. Ideal for professional use, it is equipped with AVR provision for voltage stabilization upon request.

Available models

• LD7500ESX with standard panel
• LD7500ESX with ATS panel only

TECHNICAL SPECIFICATIONS

The Tecnogen LD7500ESX diesel generator set is powered by a Lombardini 15LD440 4-stroke 442 cm³ engine running at 3000 RPM . The unit delivers a maximum power of 6.4 kW and 5.1 kVA at 230V single-phase output, with an electric start system. Average consumption is approximately 1.5 L/h at 75% load , with a 20 L polyethylene fuel tank that guarantees high operating autonomy. Structure designed for AVR regulation and professional components for continuous use.

FUNCTIONAL SPECIFICATIONS

Lombardini 15LD440 engine

The Lombardini-Kohler 4-stroke diesel engine guarantees reliability and continuity of service thanks to forced lubrication, centrifugal governor and robust architecture for intensive use on professional generators.

Professional electric start

The electric starting system of the Tecnogen LD7500ESX generator allows for quick start-up and simplified management, optimising operation in professional contexts.

Silent and compact structure

The galvanized steel casing makes the system a silent diesel generator , reducing noise and protecting internal components, with a compact design suitable for construction sites and technical installations.

AVR ready

The AVR regulator provision allows for output voltage stabilization, improving power quality for sensitive loads and continuous professional applications.

Characteristics

• Professional diesel generator
• 230V single-phase generator set
• Maximum power at 6.4 kVA / 5.1 kW
• Lombardini 15LD440 single-cylinder 442 cm³ engine
• Engine speed 3000 RPM
• Electric start
• Fuel consumption 1.5 L/h at 75% load
• 20 L petrol tank
• Low engine oil level protection system
• Thermal and magnetothermal protection on sockets
• Tubular frame with anti-vibration supports
• Integrated exhaust silencer
• AVR regulator provision on request
• ATS framework selectable from drop-down menu
• Industrial assembly made in Italy
