Tecnogen LD7500ELX
Generator
Electronic Start with ATS
230V - 7 kW
442cc - 11 HP
Lombardini Diesel Engine
Warranty 2 years
Shipped on Pallet

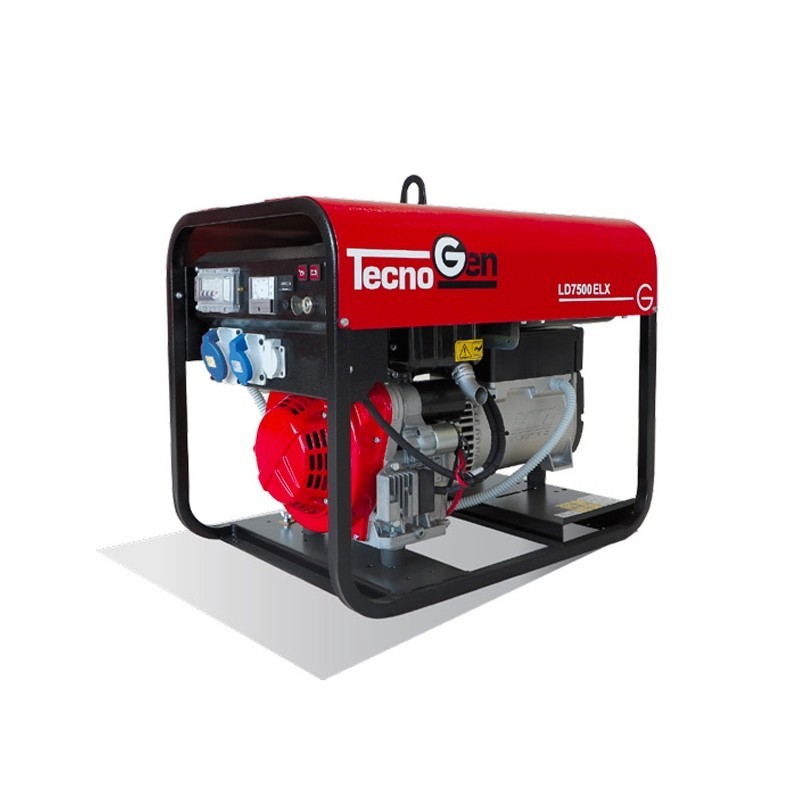

Tecnogen LD7500ELX - Electric Start Generator with ATS
The Tecnogen LD7500ELX is a professional diesel generator designed for industrial and construction site applications. It is a 7 kVA (6.4 kW) single-phase 230V generator, equipped with a 442 cm³ Lombardini-Kohler 15LD440 engine . It features electric start and a reinforced structure with an anti-vibration system, making it suitable for continuous use where reliability and stable power delivery are required.
Available models
- LD7500ELX with standard panel
- LD7500ELX with ATS panel only
TECHNICAL SPECIFICATIONS
The Tecnogen LD7500ELX runs on diesel at 3000 RPM and has single-phase 230V generation up to 7 kVA . It is powered by the Lombardini 15LD440 single-cylinder, 4-stroke, 442 cm³ engine with 12V electric start . Average consumption is 1.6 L/h at 75% load , with a 20 L tank for good operating autonomy. The system integrates thermal protection , oil level control and provision for AVR regulation on request.
FUNCTIONAL SPECIFICATIONS
Lombardini 15LD440 engine
The Lombardini-Kohler 15LD440 engine guarantees stable power delivery and constant torque thanks to its 4-stroke configuration, direct injection and forced lubrication , optimised for continuous professional use.
Electric start
The 12V electric start system allows for quick starting of the generator, reducing operating times and improving management in technical contexts.
Reinforced anti-vibration structure
The frame with anti-vibration supports reduces mechanical stress and improves the stability of the Tecnogen generator , increasing durability and reliability in intensive use.
Integrated electrical protection
The distribution panel with magnetothermal protection protects the 230V output of the power generator, with a 0.03 A differential option for greater operational safety.
Characteristics
- Professional diesel generator
- 230V single-phase generator set
- Maximum power 7.0 kVA / 5.6 kW
- Lombardini 15LD440 single-cylinder 422 cm³ engine
- Engine speed 3000 RPM
- Electric start
- Fuel consumption 1.2 L/h at 75% load
- 20 L diesel tank
- Low engine oil level protection system
- Thermal and magnetothermal protection on sockets
- Tubular frame with anti-vibration supports
- Integrated exhaust silencer
- AVR regulator provision on request
- Industrial assembly made in Italy
Technical Data
| Power Supply | Diesel |
| Motor | Lombardini-Kohler 15LD440 |
| Start-up | Electric |
| Displacement | 442 cc |
| Output Voltage | 230V - Single Phase |
| Max Output Power | 7 kVA - 5.6 KW cos φ 0.8 |
| Engine Power | 11 HP |
| Consumption at 75% | 1.6 L/h |
| Tank Capacity | 20 L |
| Dimensions | 75 x 56 x 62 cm |
| Weight | 116 kg |
