Tecnogen LD5000E
Generator
Electronic Start with ATS

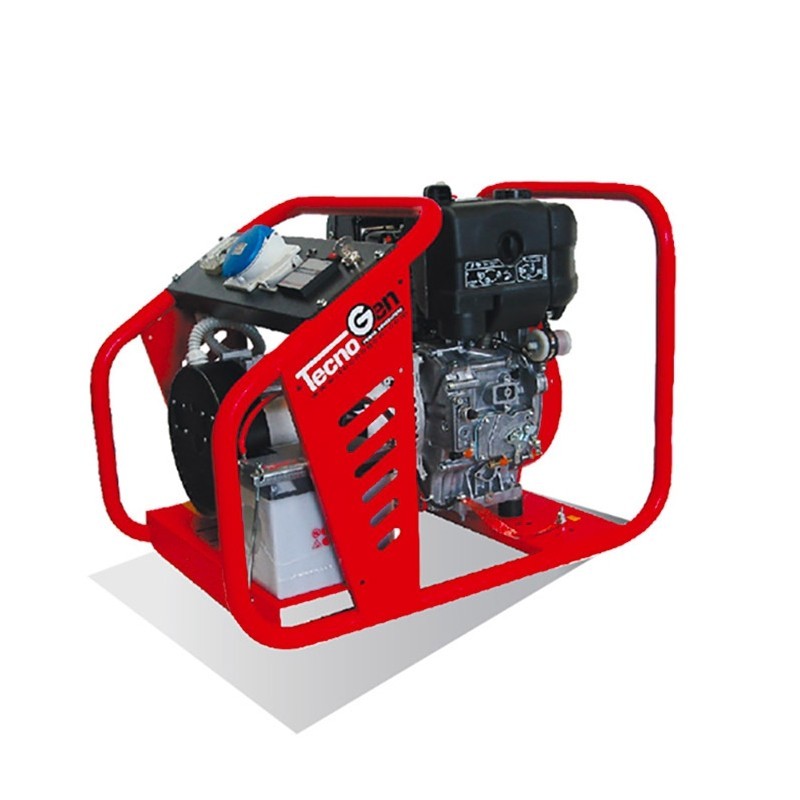

Tecnogen Compact LD5000E - Electric Start Generator with ATS

The Tecnogen LD5000E is a professional diesel generator designed for industrial use and continuous applications on construction sites and for technical services. It features a 349 cm³ Lombardini-Kohler 15LD350 engine and provides up to 4.6 kVA at a single-phase 230V output , with electric start for rapid operation. The configuration is optimized for reliability, with a compact structure and industrial-grade components.

Available models

• LD5000E with standard panel
• LD5000E with ATS panel only

TECHNICAL SPECIFICATIONS

The diesel-powered generator runs at 3000 RPM and has a maximum power of 4.6 kVA / 3.7 kW in single-phase 230V . Average consumption is 1.2 L/h at 75% load , with a 4.3 L tank for compact operating autonomy. The 349 cm³ Lombardini 15LD350 engine is coupled with a 12V electric start system and is ready for AVR voltage regulation on request . The anti-vibration frame integrates thermal protections and oil level control for system safety.

FUNCTIONAL SPECIFICATIONS

Lombardini 15LD350 engine

The Lombardini-Kohler 15LD350 engine is an industrial 4-stroke unit with forced lubrication , centrifugal governor and aluminum structure with cast iron liner , designed for operational continuity and high resistance.

12V electric start

The electric start system allows immediate starting via 12V battery , reducing activation times and improving operational efficiency in professional contexts.

Structure and operational safety

The frame with anti-vibration supports integrates thermal protections and low oil level control, ensuring mechanical reliability and engine protection during prolonged use.

AVR voltage regulation (optional)

The AVR provision ensures output voltage stabilization, making the generator suitable for sensitive power supplies and variable loads.

Characteristics

• Professional diesel generator
• 230V single-phase generator set
• Maximum power 4.6 kVA / 3.7 kW
• Lombardini 15LD350 single-cylinder OHV 349 cm³ engine
• Engine speed 3000 RPM
• Manual self-winding start
• Fuel consumption 1.2 L/h at 75% load
• Diesel tank 4.3 L
• Low engine oil level protection system
• Thermal and magnetothermal protection on sockets
• Tubular frame with anti-vibration supports
• Integrated exhaust silencer
• AVR regulator provision on request
• ATS framework selectable from drop-down menu
• Industrial assembly made in Italy
