Tecnogen H8000TE
Three-Phase Generator
Electric Start with ATS
400V - 7.5 kW
389 cc - 13.00 HP
Honda Petrol Engine
Warranty 2 years
Shipped on Pallet

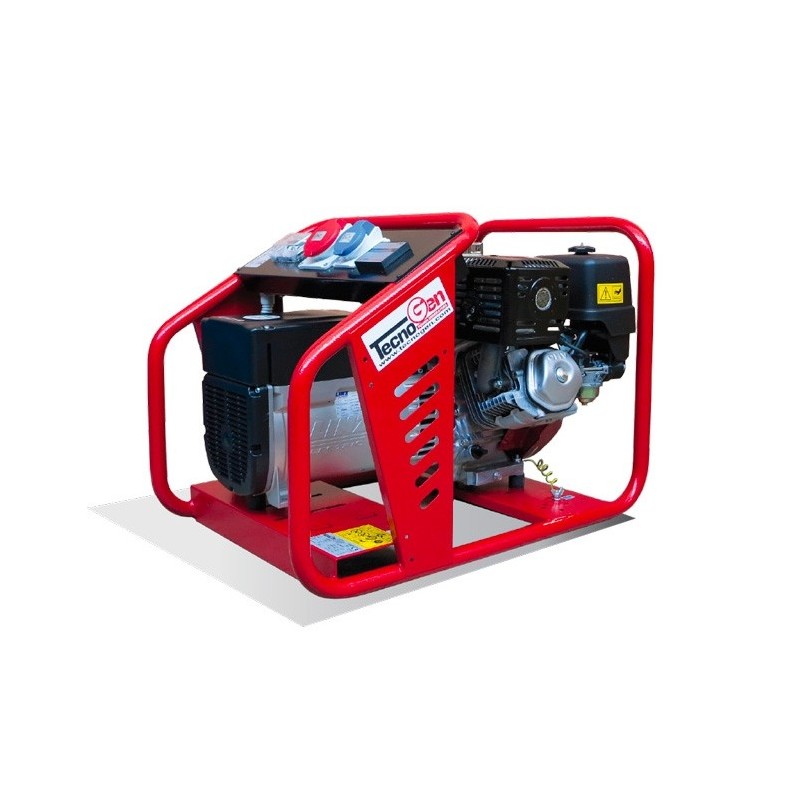

Tecnogen Compact H8000TE - Three-Phase Generator with Electric Start and ATS
The Tecnogen H8000TE is a professional petrol generator for industrial, construction and agricultural applications, designed for reliable three-phase and single-phase power. Equipped with a 389 cm³ Honda GX390 engine at 3000 RPM , it develops up to 7.5 kVA three-phase 400V with electric start , ensuring operational continuity, fuel efficiency and a compact structure for professional use.
Available models
- H8000TE with standard panel
- H8000TE with ATS panel only
TECHNICAL SPECIFICATIONS
Petrol -powered, the Tecnogen H8000TE generator features a 6.5 L tank with a consumption of 1.9 L/h at 75% . The Honda GX390 single-cylinder OHV engine with CDI ignition ensures low emissions and constant performance. It delivers 7.5 kVA / 6.0 kW max at 400V three-phase and 3.8 kVA / 3.1 kW max at 230V single-phase . It has a 12V battery , thermal protection , low oil level control , anti-vibration mounts and optional AVR preparation .
FUNCTIONAL SPECIFICATIONS
Honda GX390 OHV Engine
The Honda GX390 engine delivers efficient combustion, industrial reliability, low fuel consumption and stable performance under continuous load.
Generation 400V / 230V
The 400V three-phase and 230V single-phase configuration ensures compatibility with professional machinery, construction tools and backup power.
12V Electric Start
The electric start system optimizes start-up speed and intensive professional operation.
Safety and Protection
Thermal protection , oil level sensor and anti-vibration structure increase safety, mechanical durability and operational stability.
Characteristics
- Professional petrol generator
- 400V three-phase generator set
- Maximum power at 230V 3.8 kVA / 3.1 kW
- Maximum power at 400V 5.4 kVA / 3.1 kW
- Honda GX390 single-cylinder OHV 389 cm³ engine
- Engine speed 3000 RPM
- Manual recoil start
- Fuel consumption 1.9 L/h at 75% load
- 6.5 L fuel tank
- Low engine oil level protection system
- Thermal and magnetothermal protection on sockets
- Tubular frame with anti-vibration supports
- Integrated exhaust silencer
- AVR regulator provision on request
- ATS framework selectable from drop-down menu
- Industrial assembly made in Italy
Technical Data
| Power Supply | Gas |
| Motor | Honda GX390 |
| Start-up | Electric |
| Displacement | 389 cc |
| Output Voltage | 400V - Three-phase |
| Max Output Power | 7.5 KVA - 6.0 kW cos φ 0.8 |
| Rated Output Power | 3.8 kVA - 3.1 kW cos φ 0.8 |
| Engine Power | 13 HP |
| Consumption at 75% | 1.9 L/h |
| Tank Capacity | 6.5 L |
| LWA noise level | 96 dB |
| Max Engine RPM | 3000 RPM |
| Size | 78 x 52 x 56 cm |
| Weight H5000 | 85 kg |
